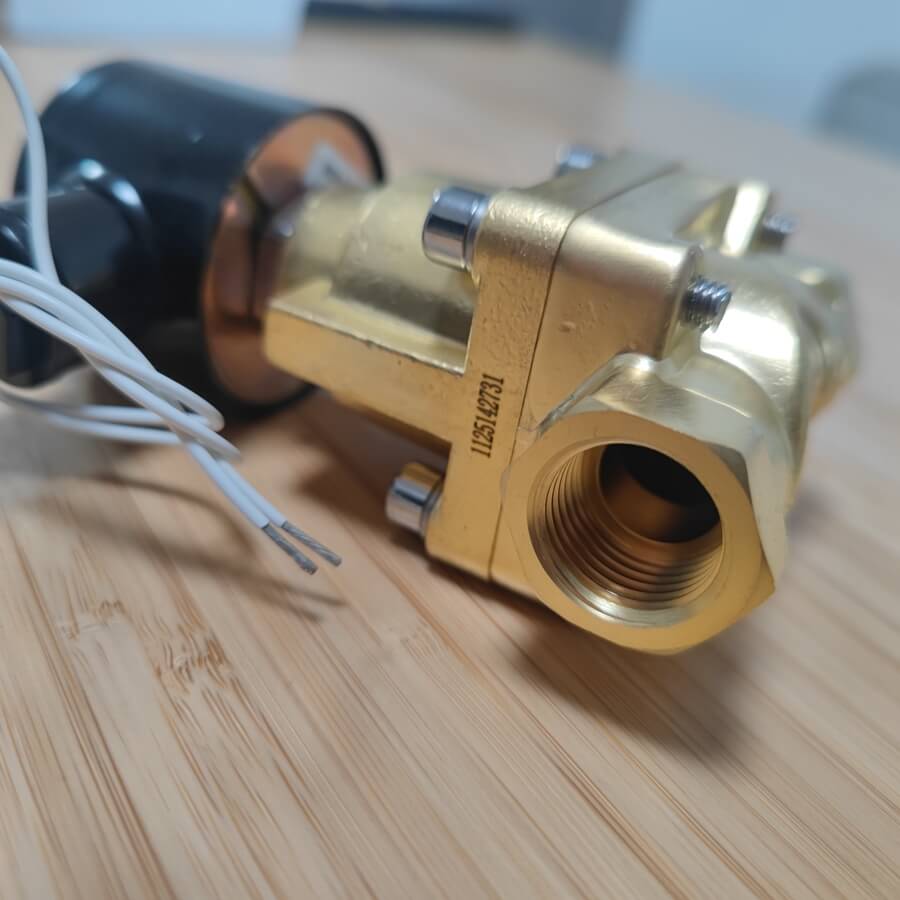

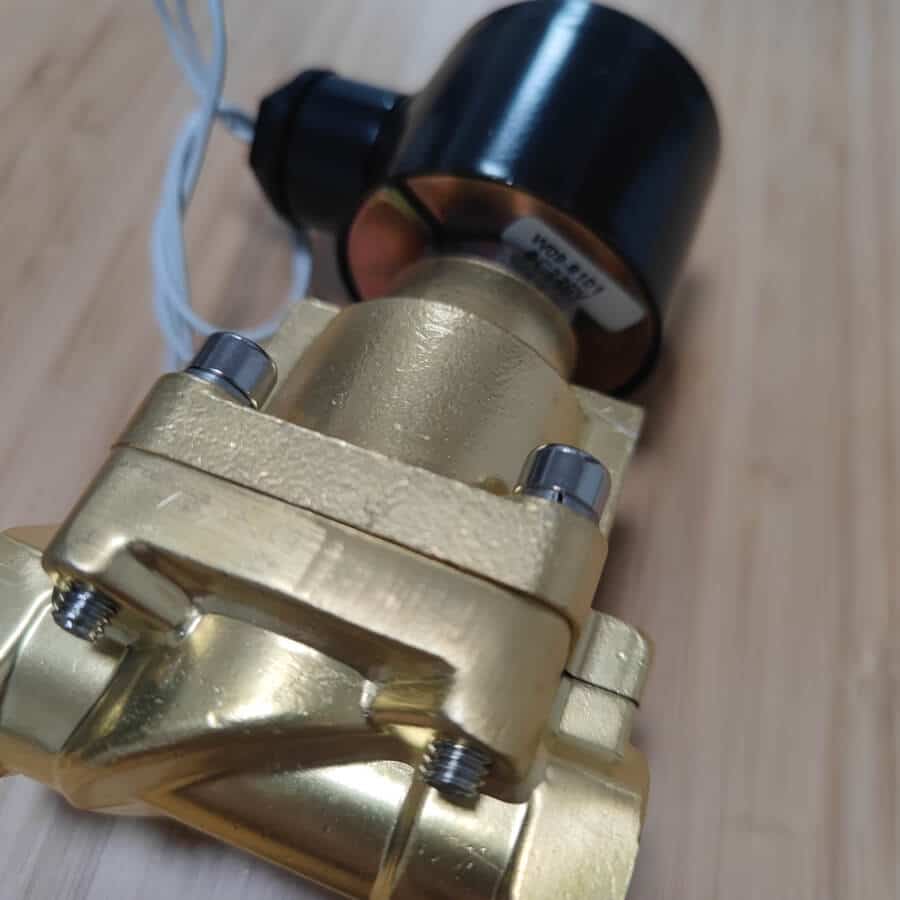

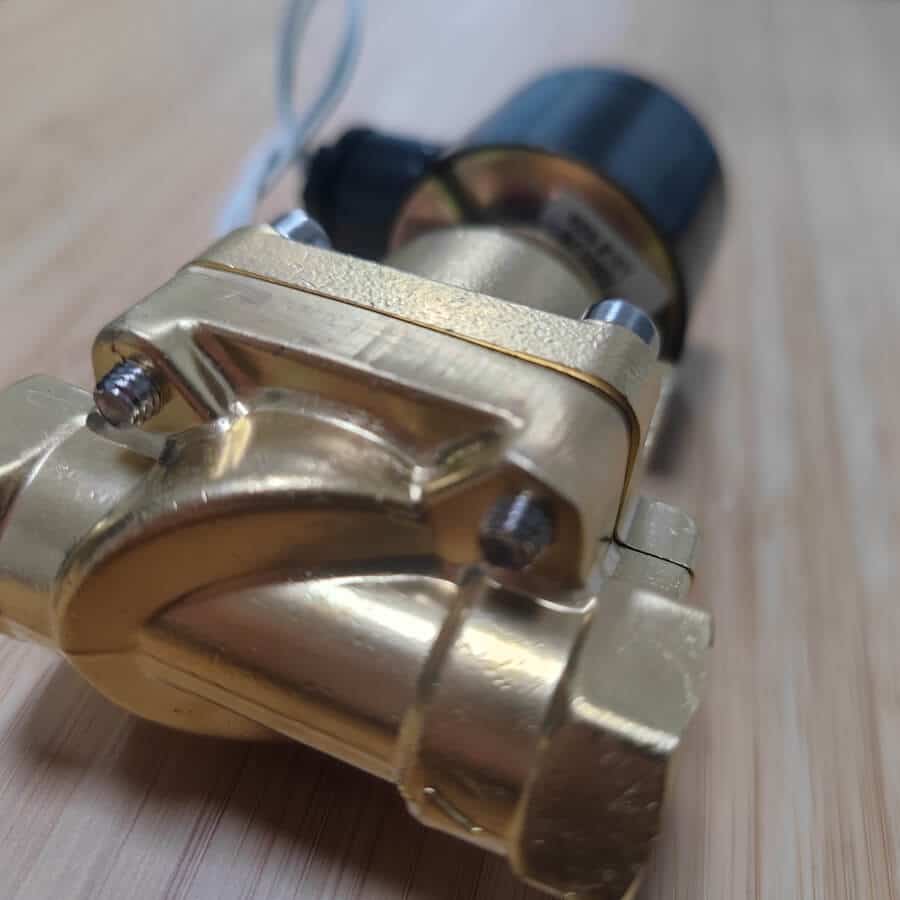

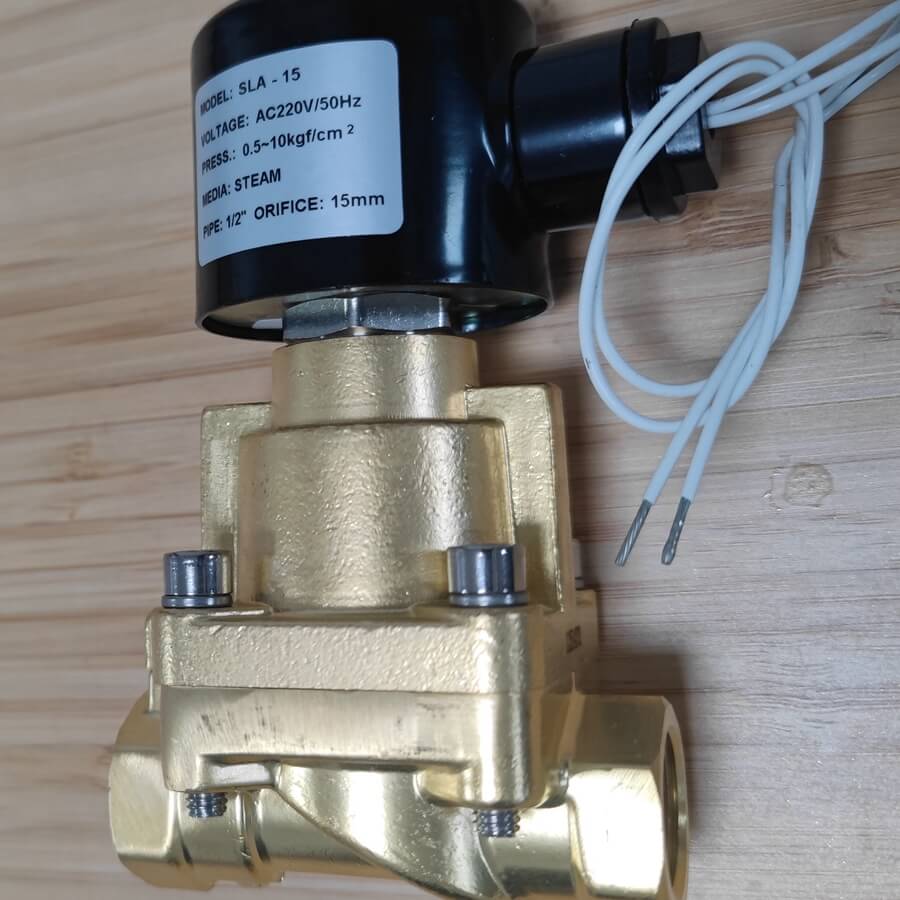

1: 2-way Normally Closed solenoid valve, Closing when de-energizes, opening when energized.
2: Serialized Valve, compact design size, large flow rate, wide applications.
3: Body material: brass / stainless steel
4: Ambient Temp 0-65C (F CLASS) 0-80(H CLASS)
5: Mounting position: best position is solenoid vertical and upright direction.
6: Voltage:220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12VDC Voltage tolerance:+10% to -10% applicable voltage
7: Coil can fit Germany Nass Coil for orifice under 16-25 only
8: Sealing: NBR VITON EPDM etc
