Big Size High Pressure Solenoid Valve for Industrial Fluid Control Applications

Introduction

In modern industrial automation systems, high flow capacity and reliable pressure control are essential for stable operation. A big size high pressure solenoid valve is specially designed for applications requiring large port sizes, high working pressure, and dependable shut-off performance under demanding conditions.

Compared with standard solenoid valves, large size high pressure solenoid valves provide stronger flow capacity, higher structural strength, and better durability for industrial systems handling gas, water, oil, steam, and other media.

What Is a Big Size High Pressure Solenoid Valve?

A big size high pressure solenoid valve is an electrically operated valve designed to control high-pressure fluids or gases through large pipe connections. These valves are widely used in industrial systems where both high pressure resistance and large flow rates are required.

Typical features include:

Large port size design
High pressure resistance
Stainless steel valve body
Industrial-grade sealing materials
Fast opening and closing response
Long service life under continuous operation

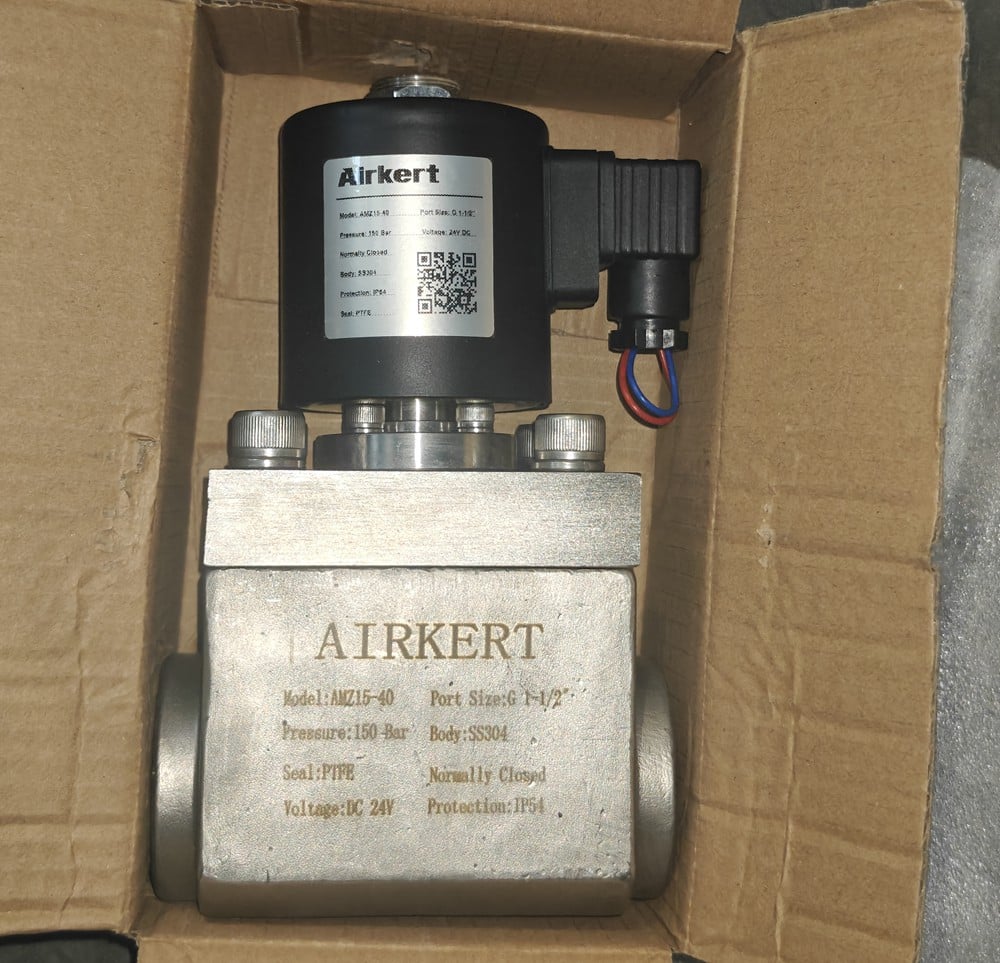

Main Features of AIRKERT Big Size High Pressure Solenoid Valve

1. High Pressure Capability

The valve is designed for high-pressure industrial applications and can withstand pressures up to 150 bar or higher depending on configuration.

This makes it suitable for:

High-pressure gas systems
Hydraulic systems
Industrial water treatment
Compressed air systems
CO2 and inert gas control

2. Large Flow Capacity

Large port size construction provides higher flow rates compared with standard solenoid valves. This helps reduce pressure loss and improves system efficiency.

Available port sizes may include:

G1″
G1-1/2″
G2″
Larger customized sizes

3. Stainless Steel Construction

The valve body is manufactured from SS304 or SS316 stainless steel materials for excellent corrosion resistance and mechanical strength.

Benefits include:

Corrosion resistance
Longer service life
Better performance in harsh environments
Suitable for industrial gases and liquids

4. Reliable Sealing Performance

High-quality sealing materials such as PTFE, NBR, FKM, or EPDM can be selected according to different media and temperature requirements.

This helps ensure:

Low leakage
Stable sealing under pressure
Reliable long-term operation

5. Industrial Coil Design

The solenoid coil is designed for continuous industrial operation with protection grades such as IP65.

Voltage options include:

12V DC
24V DC
24V AC
110V AC
220V AC

Typical Applications

Big size high pressure solenoid valves are widely used in:

Industrial Gas Systems

Nitrogen systems
Oxygen systems
Krypton and inert gas control
CO2 systems

Water Treatment Systems

High-pressure water control
Cleaning systems
Industrial water circulation

Pneumatic Systems

Air compressors
Automation equipment
Pneumatic control systems

Oil & Chemical Industry

Oil transfer systems
Chemical dosing systems
Industrial fluid control

How to Select the Right High Pressure Solenoid Valve

When choosing a large size high pressure solenoid valve, the following parameters should be confirmed:

Parameter	Description
Working Pressure	Maximum operating pressure
Medium	Gas, water, oil, steam, etc.
Port Size	Pipe connection size
Temperature	Working temperature range
Voltage	Coil voltage requirement
Valve Type	Normally closed or normally open
Seal Material	PTFE, NBR, FKM, EPDM, etc.

Correct valve selection helps ensure stable system operation and longer service life.

Why Choose AIRKERT?

AIRKERT focuses on industrial solenoid valve manufacturing with extensive experience in high-pressure fluid control applications.

Advantages include:

Customized solutions available
Strict production quality control
Industrial-grade materials
Stable performance under high pressure
Technical support for special applications
OEM & ODM service

Conclusion

A big size high pressure solenoid valve is an important component for industrial systems requiring reliable shut-off performance under high-pressure and large-flow conditions. With durable stainless steel construction, strong sealing capability, and customizable configurations, these valves are suitable for a wide range of industrial automation applications.

If you are looking for a customized high pressure solenoid valve solution for gas, water, oil, or pneumatic systems, AIRKERT can help provide suitable models according to your working conditions.
