How Pulse Jet Valves Work?

pulse jet valve working
Pulse jet valve baghouse diagram
No. Component No. Component
1 Compressed Air Jet Tube 10 Compressed Air Header
2 Clean Gas Outlet 11 Pressure Switch
3 Filter Housing 12 Diaphragm Pulse Valve
4 Filter Bag 13 Air Control Line
5 Dirty Air Inlet 14 Remote Control Enclosure
6 Dust Hopper 15 Pulse Jet Controller
7 Rotary Discharge Valve 16 Filter Bag Cage
8 Venturi 17 Differential Pressure Transmitter
9 Blow Tube Nozzle 18 Pneumatic Hammer

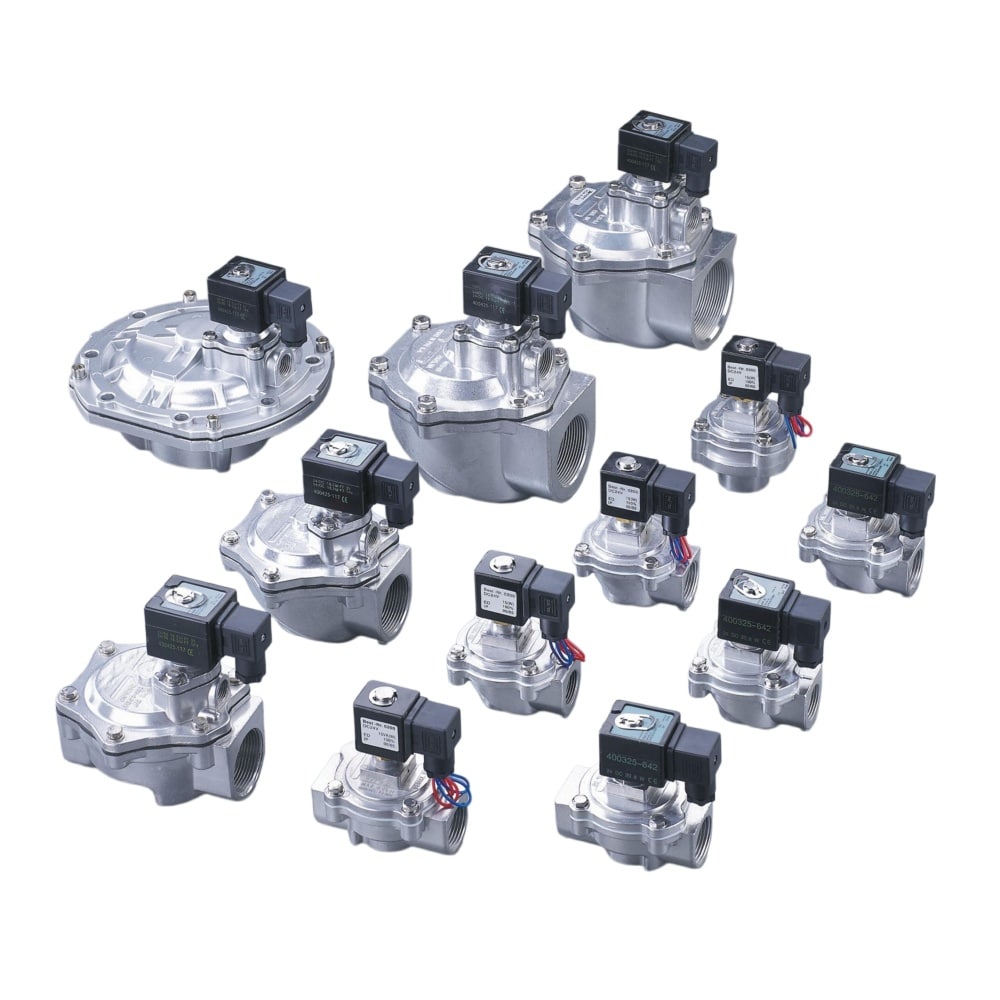

Pulse Jet Solenoid Valves Working Types

pulse jet valve working types

Technical Parameters

Parameter Right Angle Embedded Inline Piston
Design Pressure 0.3–0.8 MPa 0.2–0.8 MPa 0.3–0.8 MPa 0.2–1.0 MPa
Working Pressure 0.3–0.6 MPa 0.2–0.6 MPa 0.3–0.6 MPa 0.2–0.6 MPa
Ambient Temperature -25°C to 60°C, customized for lower or higher temperature -25°C to 60°C, customized for lower or higher temperature -25°C to 60°C, customized for lower or higher temperature -25°C to 60°C, customized for lower or higher temperature
Relative Humidity ≤85% ≤85% ≤85% ≤85%
Working Medium Clean Air Clean Air Clean Air Clean Air
Voltage AC220V / AC110V / AC24V / DC24V / DC12V, Customized AC220V / AC110V / AC24V / DC24V / DC12V, Customized AC220V / AC110V / AC24V / DC24V / DC12V, Customized AC220V / AC110V / AC24V / DC24V / DC12V, Customized
Protection Class — — — —
Diaphragm Life One year or one million cycles One year or one million cycles One year or one million cycles One year or one million cycles
Cv/Kv Coefficient Contact us for details Contact us for details Contact us for details Contact us for details

Material Construction

Component Material
Body ADC12 Die-Cast Aluminum Alloy
Armature 430FR Stainless Steel
Diaphragm Nitrile or Viton
Spring 321 Stainless Steel
Fasteners 302 Stainless Steel

Common Pulse Jet Valve Problems and Troubleshooting

Use Period Failure Symptom Possible Cause Troubleshooting
During Installation and Commissioning None of the valves can open, but the pilot/armature operates normally. Air supply pressure is too low, or the input voltage is insufficient. Check the air supply pressure. Check the input voltage and restore it to the rated value if necessary.
During Installation and Commissioning Some valves do not operate, while the others work normally. Loose wiring connection or faulty solenoid coil. Electromagnetic interference from nearby high-voltage or high-frequency equipment may also affect operation. Check the wiring and solenoid coil. Keep the valve away from high-voltage/high-frequency equipment or add suitable shielding. Replace faulty components if necessary.
During Installation and Commissioning None of the valves can close. Air leakage is present and the air tank cannot build pressure. For submerged/Y-type valves, one or more valves connected to the same air tank may be leaking, causing all valves to lose pressure. Identify and repair the leaking valve.
During Installation and Commissioning None of the valves can close. Air leakage is present and the air tank cannot build pressure. For right-angle/Z-type valves, the inlet and outlet may have been installed in the wrong direction. Reinstall the valve with the inlet and outlet in the correct direction.
During Installation and Commissioning Some valves cannot close completely and air leakage occurs. Dirt or debris is trapped on the diaphragm, or the armature/moving core is stuck. Clean the diaphragm. Check that the diaphragm is intact. Inspect and clean the armature and pilot air passage.
During Installation and Commissioning The valve closes slowly. The diaphragm bleed/orifice hole is blocked. Clean the diaphragm bleed/orifice hole.
During Operation Some valves leak, the diaphragm cannot close completely, or the valve remains partially open. Debris is trapped on the diaphragm, the pilot assembly is damaged, or the moving core is blocked. Clean the diaphragm and pilot assembly. Check that the diaphragm is intact. Inspect the armature and air passage, and replace damaged parts if necessary.
During Operation The solenoid coil becomes hot or burns out. The coil has been energized continuously for too long. Check the controller operation and make sure the valve is not energized for longer than the specified pulse duration.
During Operation Voltage is present, but the valve does not operate. The diaphragm is damaged or the bleed/orifice hole is blocked. Replace the damaged diaphragm or related parts, and clean the blocked orifice.
During Operation At ambient temperatures below -20°C, the valve leaks and cannot open properly. Low temperature causes frost or icing inside the valve. Provide suitable insulation or heating and maintain the valve within the recommended operating temperature range.

Important Operating Notes

Item Recommendation
Working Pressure Maintain the working pressure within 2–6 kgf/cm² and keep the air supply pressure stable.
Air Tank Cleaning Before installation, thoroughly clean the air tank and remove all dust, debris and other contaminants.
Compressed Air Quality Use clean and dry compressed air.
Installation Make sure the valve is installed in the correct flow direction and according to the specified connection requirements.
