Goyen Type Dresser Nut Pulse Jet Valve
Fast-Install DD Series Compatible Pulse Valves for Dust Collector Systems
High Flow · 90° Dresser Nut Connection · Fast Response · Repair Kits Available
The AWG-DD series Goyen Type Dresser Nut Pulse Jet Valve is designed for reverse pulse jet dust collector and baghouse cleaning systems. Replace DD series
Featuring 90-degree dresser nut inlet and outlet connections, the valve can be connected directly to supply pipes and blow tubes without complicated threaded fittings. This design allows fast installation, reliable sealing and convenient maintenance.
Our Goyen-compatible dresser nut pulse jet valves are suitable for replacement, maintenance and OEM dust collector applications. Multiple valve sizes, coil voltages, diaphragm materials and pilot configurations are available.
Key Features
-
90-degree dresser nut connection
-
Fast and convenient pipe installation
-
High airflow capacity
-
Strong pulse cleaning performance
-
Fast opening and closing response
-
Durable aluminum alloy valve body
-
Reliable diaphragm structure
-
Low pressure loss
-
Multiple valve sizes available
-
Integral pilot and remote pilot options
-
Various coil voltages available
-
Replacement diaphragm kits available
-
Dresser nut seal kits available
- Suitable for OEM and replacement applications
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Type | Body Material | Diaphragm | Coil | Temperature |
| AWG | 15 | U2 | N | Z | A | D | ||
| FP: Turbo Type AWG: Goyen Type AWA: ASCO Type AWD: SBFEC Type AWM: Mecair Type AWC: Customized Type |
15: 1/2″ 20: 3/4″ 25: 1″ 32/35: 1-1/4″ 40: 1-1/2″ 50/55: 2″ 62/65: 2-1/2″ 75/76/80: 3″ | U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36VAC U7: 24V AC | N: NBR E: EPDM V: VITON | Z: Right Angle Y: Embedded T: Straight P: Piston | A: Aluminum S: Stainless Steel | Blank: Single Diaphragm S: Double DD: Pilot Head Type FS: Flanged Type A: Extended Stem Type DDF: Flanged + Pilot Head Type | D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof | Blank: Normal L: Low Temperature H: High Temperature |
Dimensions

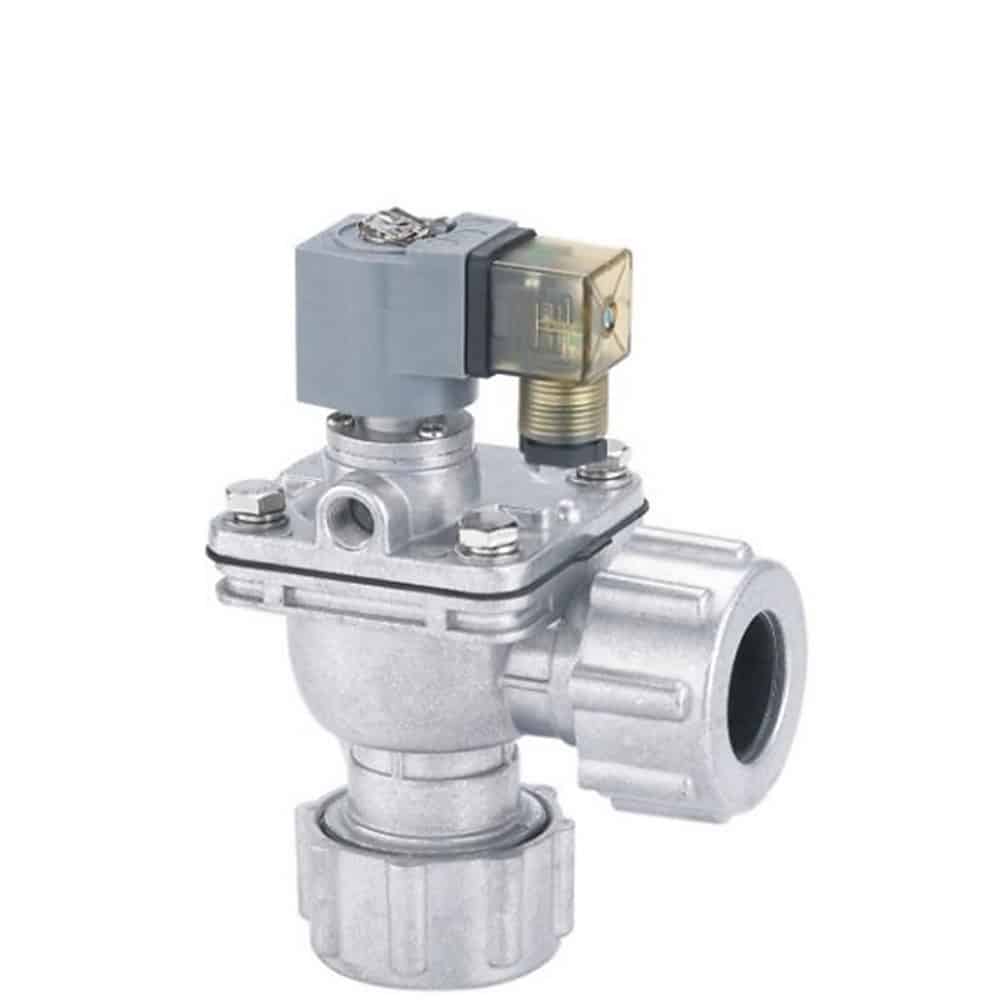

AWG-Z-25DDÂ (1″)
Goyen CA25DD
AWG-Z-45DD (2″)
GOYEN: CA45DD
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Dresser Nut Pulse Jet Valve |
| Design | Goyen Type / Goyen Compatible |
| Series Reference | DD Series |
| Valve Function | Normally Closed |
| Operating Type | Pilot-Operated Diaphragm Valve |
| Working Medium | Dry, Oil-Free, Clean Compressed Air |
| Body Material | Aluminum Alloy |
| Diaphragm Material | NBR / TPE / Viton / Optional |
| Connection Type | Dresser Nut |
| Flow Direction | 90° Inlet to Outlet |
| Pilot Type | Integral Pilot / Remote Pilot |
| Working Pressure | 0.5–7.5 bar |
| Working Temperature | Standard Diaphragm: -20°C to +80°C; High-Temperature Diaphragm: -30°C to +200°C |
| Coil Voltage | 24V DC / 24V AC / 110V AC / 220V AC |
| Voltage Fluctuation | ±10% |
| Coil Insulation Class | Class F |
| Coil Installation Angle | 360° |
| Opening Time | 0.023–0.027 seconds |
| Number of Diaphragms | 3/4″–1″: Single Diaphragm; 1-1/2″–4″: Double Diaphragm |
| Service Life | Diaphragm: 1,000,000 Pulses Without Leakage |
| Application | Dust Collector / Baghouse / Cartridge Filter |
| Repair Kit | Available |
