A solenoid valve generally contains valve body, solenoid coil, diaphragm kit, plunge kit, spring, screws, seal, wire connector, etc. But how they are assembled, and what they looks, please find details below:
Direct / Diaphragm Type Assembly Parts
| No. | Part | Material |
|---|---|---|
| 1 | Valve body | SS304 |
| 2 | Diaphragm kit | NBR |
| 3 | Diaphragm spring | SS304 |
| 4 | Plunge kit | TBD |
| 5 | Plunge spring | SS304 |
| 6 | Valve cover | SS304 |
| 7 | Stainless steel screw | SS304 |
| 8 | Plunger tube sealing ring | PTFE |
| 9 | Plunger tube assembly | TBD |
| 10 | Coil | Copper |
| 11 | Label | AIRKERT |
| 12 | 10 Spring ring 10 | 65Mn |
| 13 | M10*1 Bolit M10*1 | SS202 |
| 14 | M3*28 Srew M3*28 | Q235-A |
| 15 | DIN43650A connector | Plastic |
| 16 | Wire | Copper |

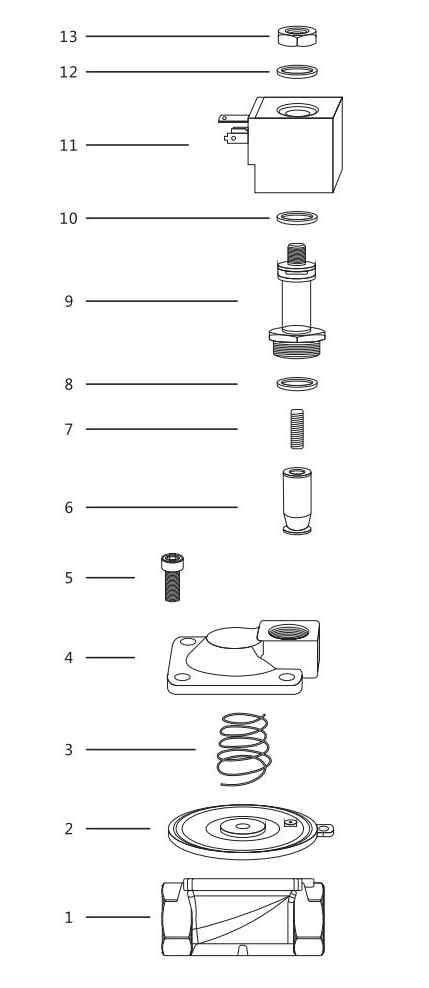

Pilot Type
| No. | Part | Material |
|---|---|---|
| 1 | Valve body | SS304 |
| 2 | Diaphragm kit | NBR |
| 3 | Diaphragm spring | SS304 |
| 4 | Valve cover | SS304 |
| 5 | Stainless steel screw | SS304 |
| 6 | Plunge kit | TBD |
| 7 | Plunge spring | SS304 |
| 8 | Plunger tube sealing ring | PTFE |
| 9 | Plunger tube assembly | TBD |
| 10 | Spring washer | TBD |
| 11 | Coil | Copper |
| 12 | 10 Spring ring 10 | 65Mn |
| 13 | M10*1 Bolit M10*1 | SS202 |

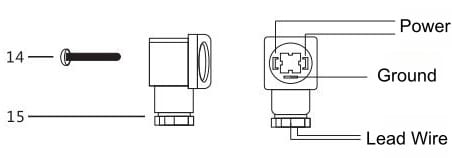

| 14 | M3*28 Srew M3*28 | Q235-A |
| 15 | DIN43650Aconnector | Plastic |
| 16 | Power Wire | Copper |
