Project Description

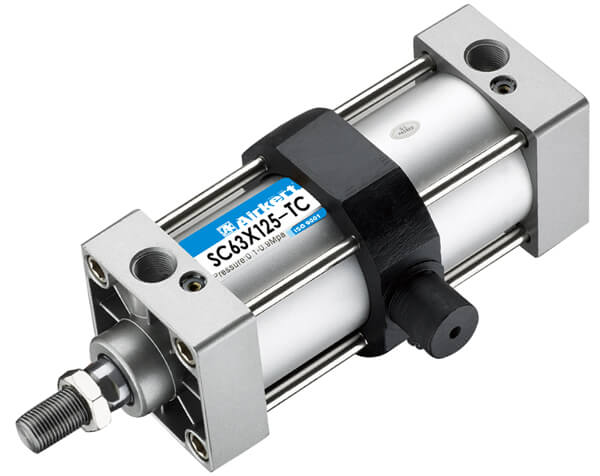

  • SC ISO air cylinder
  • SC standard tie rod pneumatic cylinder

SC SU Standard pneumatic cylinder

SC pneumatic cylinder is standard Tie-rod cylinder and SU cylinder is X-Type Mickey Mouse Cylinder. The conventional bore from 32mm to 250mm, special bore from 320mm to 600mm. SC/CU Cylinder is the first products since we establish our Airkert factory. From the CNC Machining end covers and piston rod to the comprehensive approach by ultrasonic cleaning machine, from complete the final assembly to strictly testing. We can ensure the excellent quality and stability of the cylinder performance.

Features:
·Highlighted products for process optimization
·Completely according to ISO standard
·All PU sealing system
·Strong guiding design with high concentricity
·Bronze bearing with much better lateral loading
·Strengthened cushion design, soft ending
·Double cushioning system
·2000KM loaded stroke life

Supply Chain:
·Japan or Taiwan area seal
·Germany Grease
·Strong aluminum material
