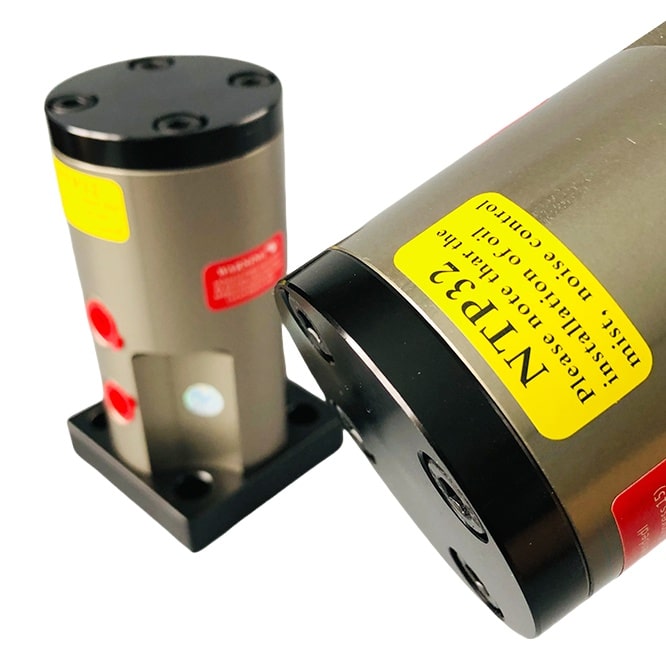

NTP Series Pneumatic Percussion Hammer Air Knocker
NTP series pneumatic piston vibrator, bulkhead pneumatic percussion air hammer, barn air knocker, are suitable for knocking off materials adhering to the container wall and pipe wall in funnels. Some key features of NTP series air knocker, high peak accelerated vibration, rubber like hitting impact.
Features:
2. Port Sizes: 1/8", 1/4'', 3/8''
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum / Stainless Steel
5. Seal options: NBR, EPDM, FKM
6. Quality: Each air hammer will be tested before shipment, including the functionality and leakage testing.
10.High power range 195 - 56,350 N
11.Lubrication-free can be used up to 120C
12.It can be used in a dusty environments

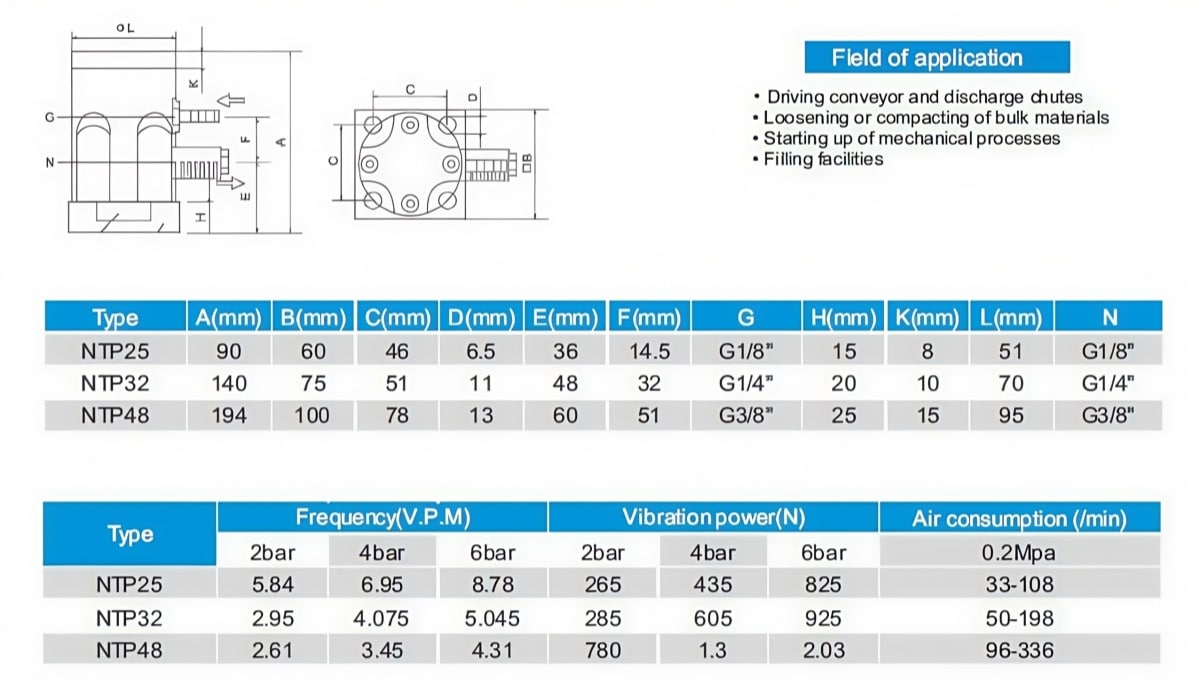

| Type | Frequency(V.P.M) | Vibration power(N) | Air consumption (L/min) | ||||
|---|---|---|---|---|---|---|---|
| 2bar | 4bar | 6bar | 2bar | 4bar | 6bar | 0.2Mpa | |
| NTP25 | 5.84 | 6.95 | 8.78 | 265 | 435 | 825 | 33-108 |
| NTP32 | 2.95 | 4.075 | 5.045 | 285 | 605 | 925 | 50-198 |
| NTP48 | 2.61 | 3.45 | 4.31 | 780 | 1.3 | 2.03 | 96-336 |
NTP Pneumatic Linear Vibrators Piston Type Hammer
Product Features:

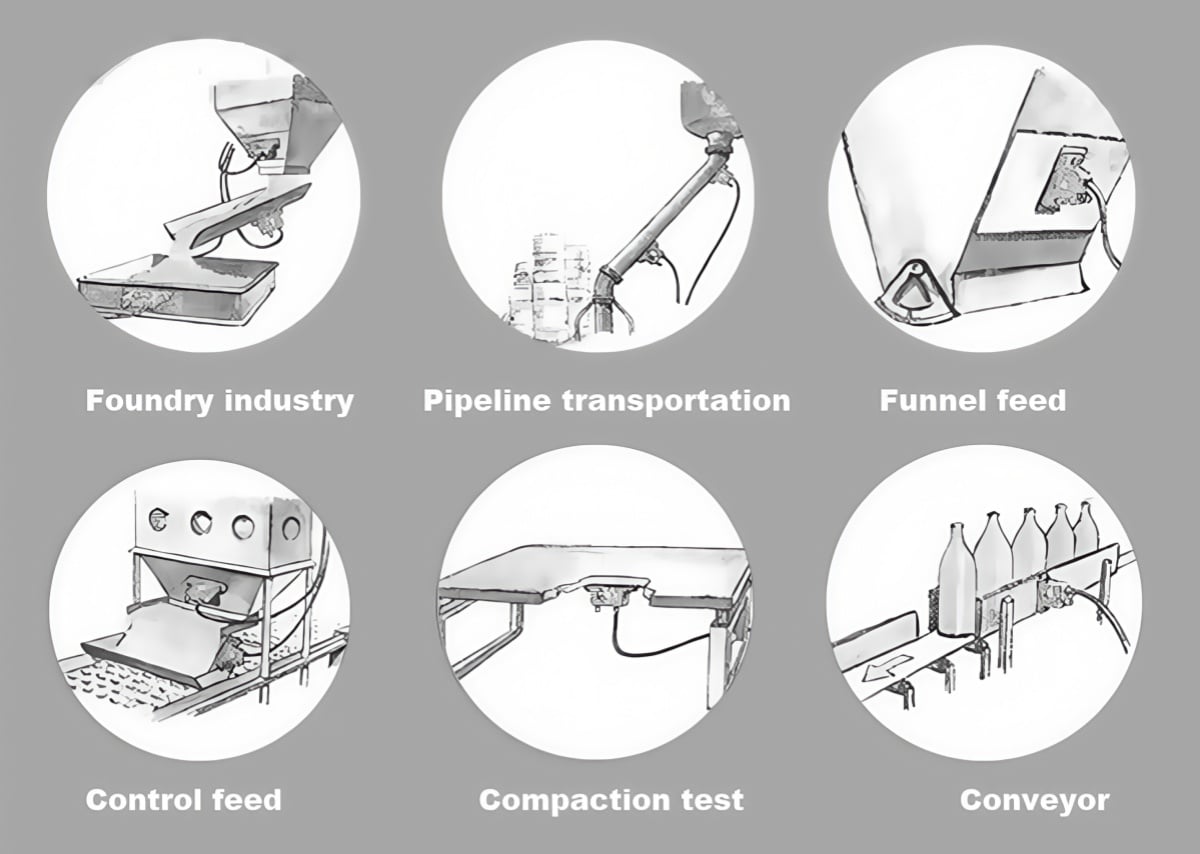

The pneumatic linear vibrators of the series NTP are especially suitable for knocking off material adhering to container walls in funnels, containers, silos and hoppers. Special features of NTP vibrators are: impacts like a rubber hammer or vibration with high peak acceleration.
The linear vibration is produced by a freely vibrating differential pressure piston. In a standard application, the piston knocks against an elastomer impact plate and works like a rubber hammer.
A 3/2-way operating valve is required in order to guarantee inmediate starting.
The air has to be filtered.
Lubrication-free operation is possible, except when working with freezedried air.
The permitted temperature range is 5°C to 80°C
FEATURES
1.High impact frequency 1,350 - 4,600 vpm
2.High power range 195 - 56,350 N
3.Lubrication-free can be used up to 120C
4.It can be used in a dusty environments
