SMC Alternative CRQ2 Series Rotary Actuator Cylinder

CRQ2 Series Pneumatic Rotary Actuator, Rotary Air Cylinder, Rack & Pin Type, With cushion, equipped with adjustment structure. Single or double axis is optional. Compact design, light aluminum weight. Bore size: 10mm, 15mm, 20mm, 30mm, 40mm.

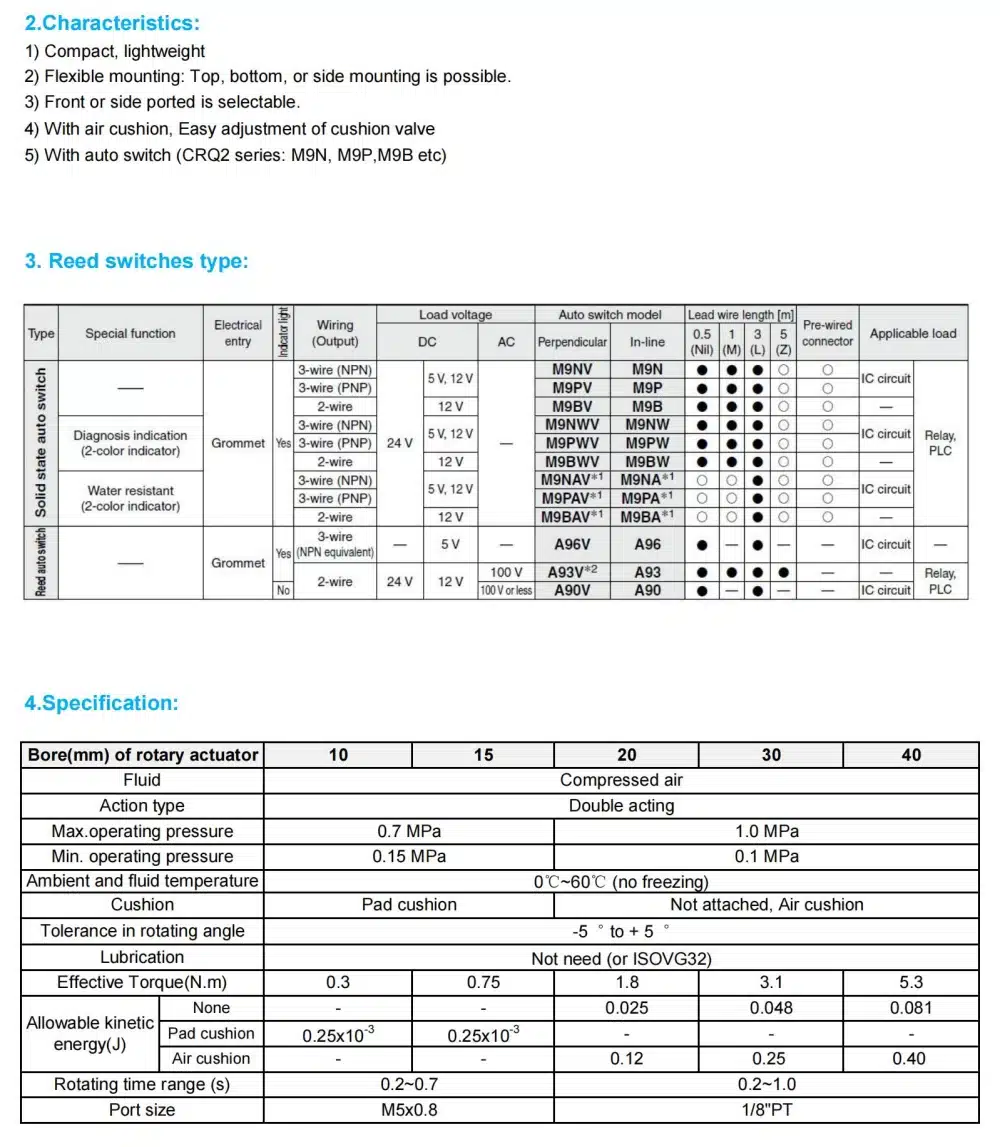

Features:

1. Easy Mounting, Flexible installation directions.
2. Compact design, lightweight.
3. Front or Side holes/ports selectable.
4. Air cushion, adjustment support.
5. With miniature auto switches.

Body material: Aluminum
Pressure: 0-10 bar, 150 PSI
Fluid Media: Air

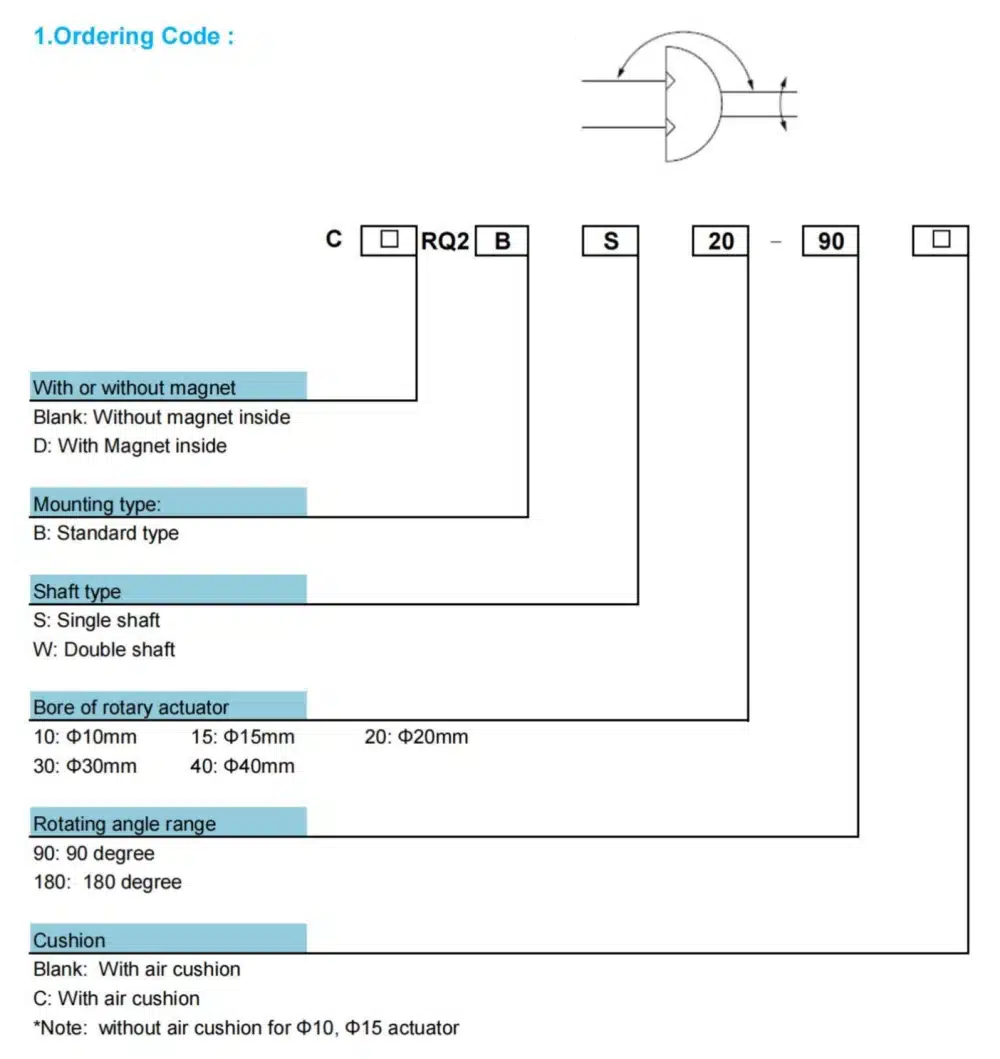

Series: CRQ2BW, CRQ2BS, CRQ2 Series.

· Uses internal cushioning.
· The main body can also serve as a flange.

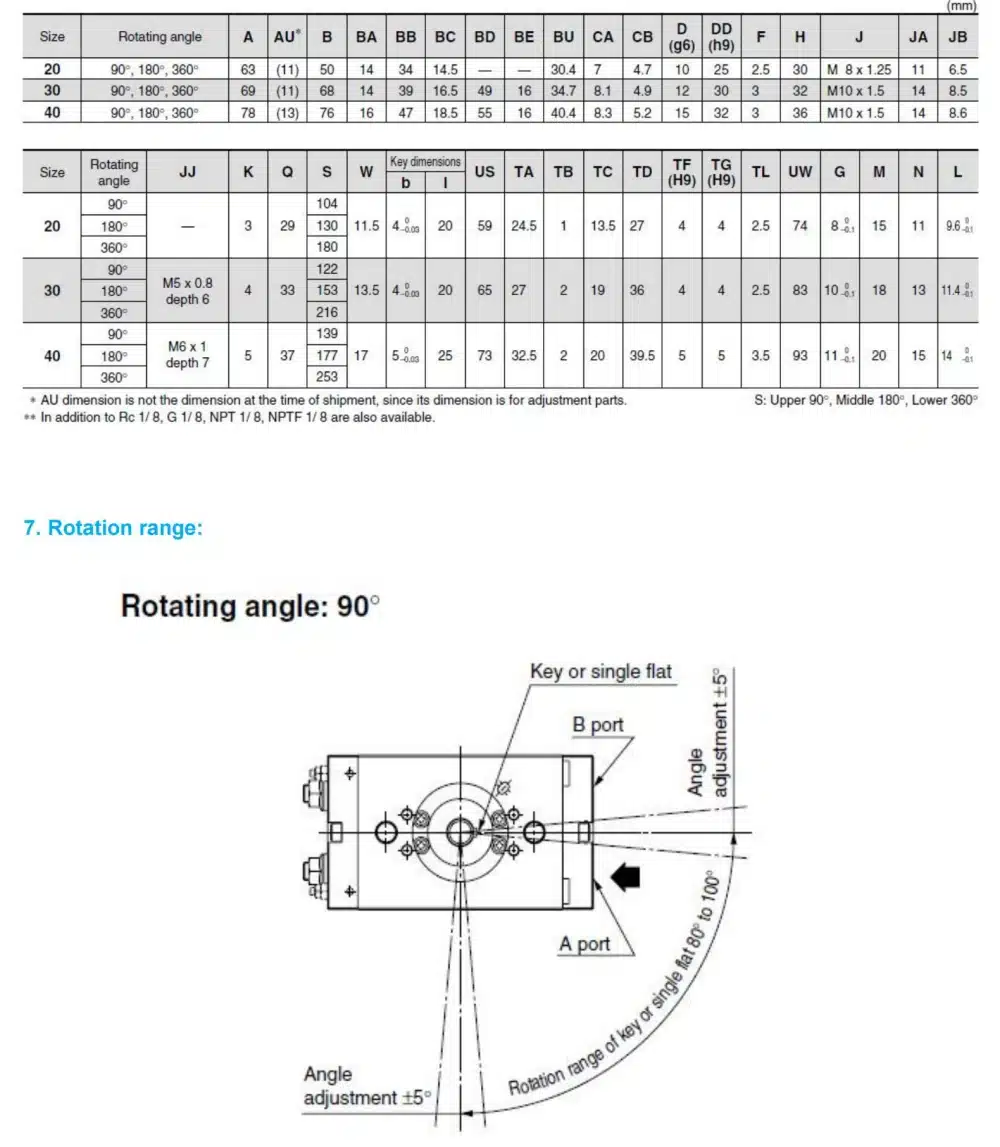

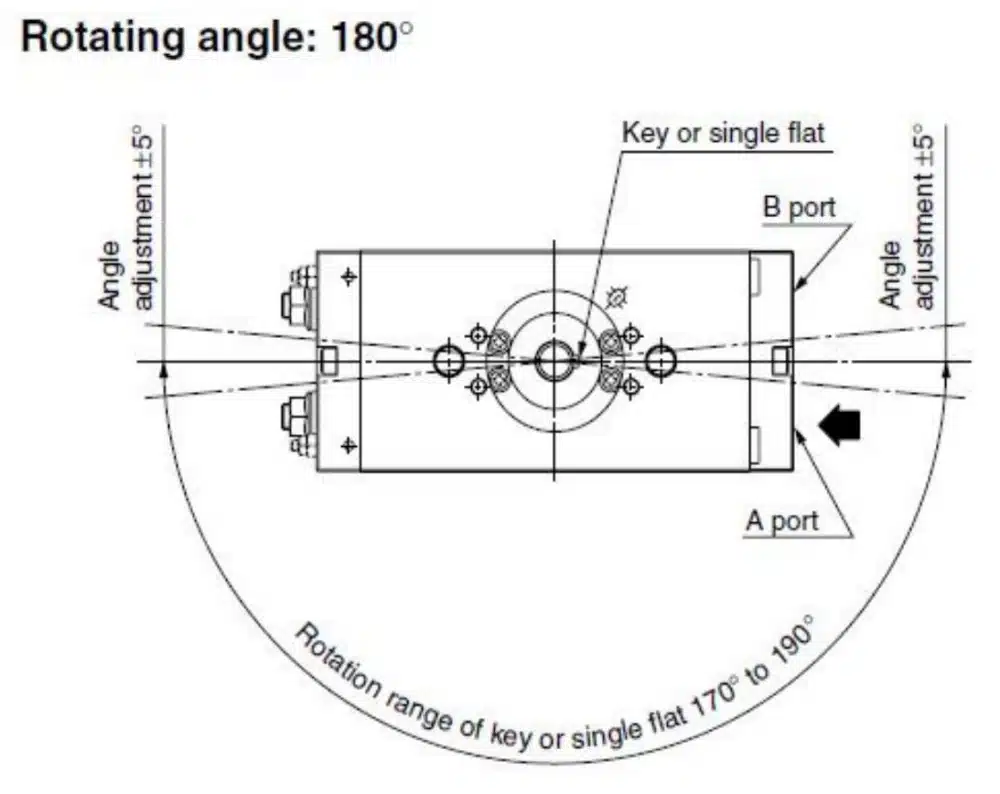

· With angle adjustment mechanism (each rotation end ±5°).
· 360° rotating angle type.
· Piping can be installed from one end.
· 2 auto switches can be mounted on the same side (mountable on both sides).
· A double piston design free from backlash.

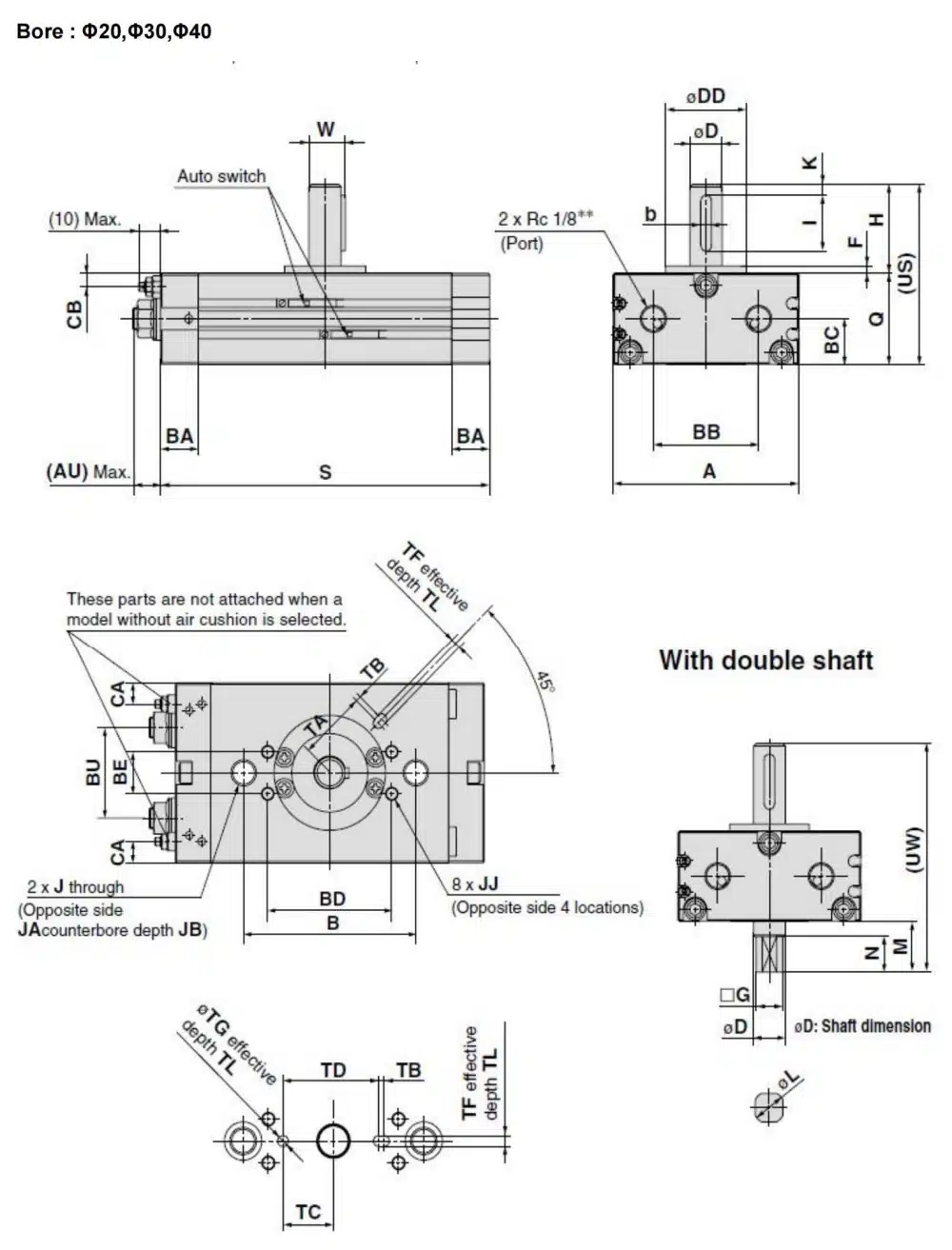

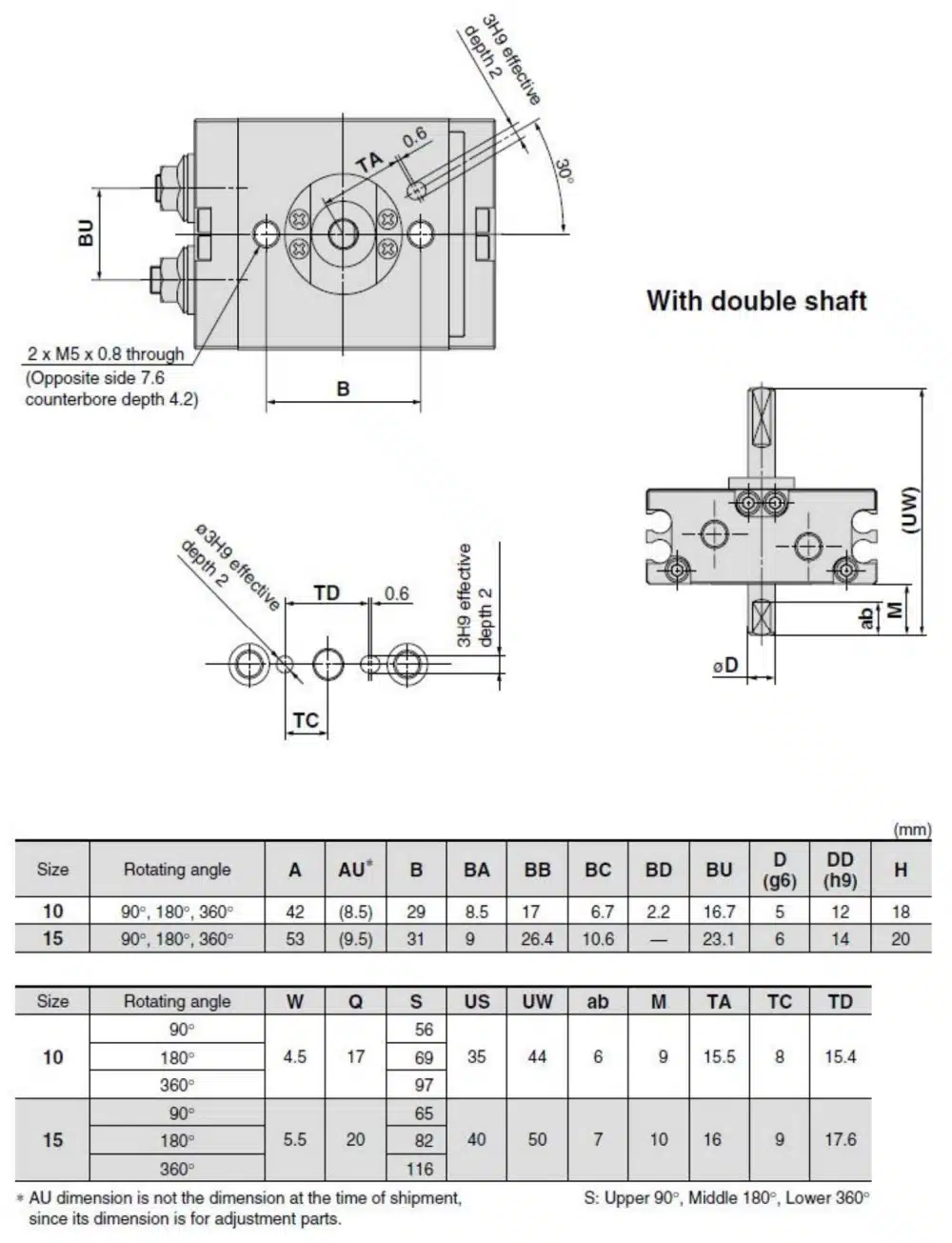

· Shaft type: Supports both single and double shafts.
· Centering is easy when mounting the body.
