MGP three shaft cylinder

MGP High Precision Guide Cylinder

The non-rotation accuracy of MGP series three shaft cylinder, triple rod guide cylinder,  MGP triple rod guide cylinder can reach 0.3 degrees in the 40 ūm filtered air. The bore has 10 mm, 16 mm, 20 mm, 25 mm, 32 mm five types together. Normally it is without magnet. Magnet is optional. This cylinder can be done a maximum speed of 500 mm/s.

Features:
·Body, cover and mounting plate machined in Horizontal CNC, high precision and concentricity
·High non-return precision and low piston rod deflection, precise positioning
·Supporting lateral loading with good bending resistance and tensional strength performance
·Longer slide bearing guiding, better guiding performance
·Cushion pad of front cover well adjust cylinder stroke and reduce impact force

Supply Chain:

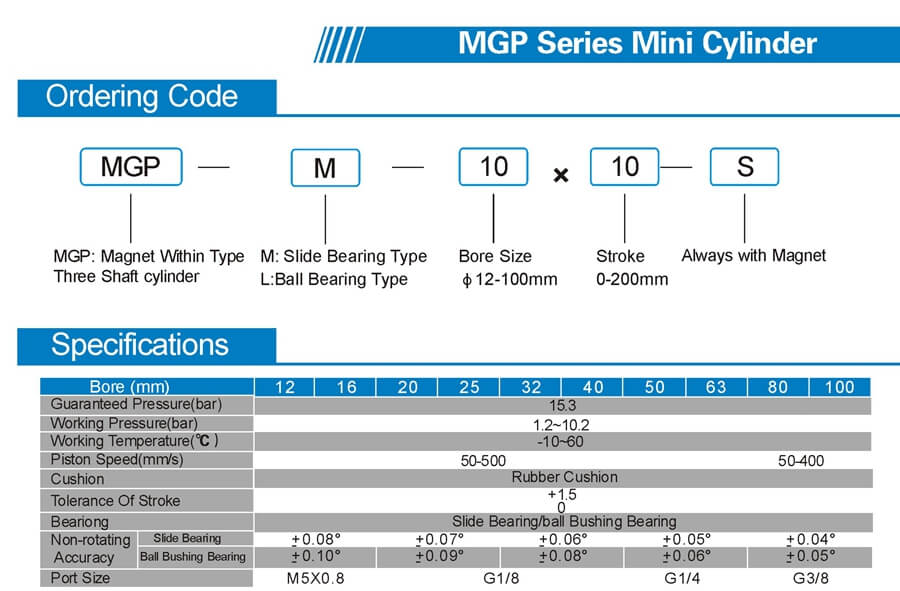

MGP series three shaft cylinder

MGP series three shaft cylinder

·Germany Grease
·Japan or Taiwan area seal
·Strong aluminum material
