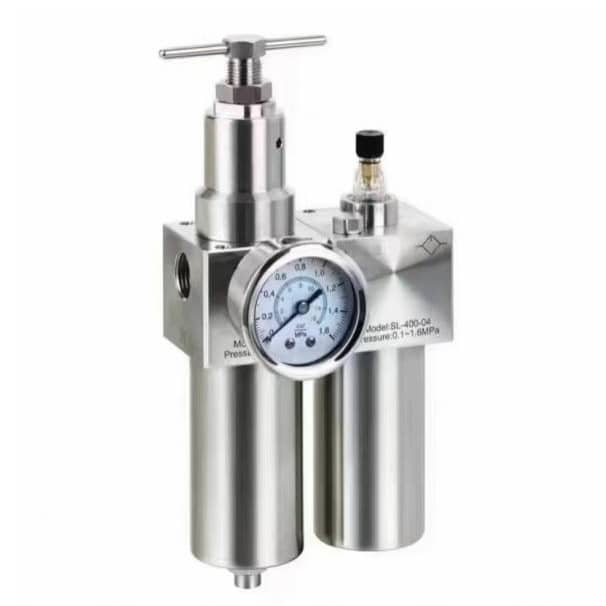

The SFRL Series air combination preparation units, F.R.L Combination,  features robust construction with high-quality stainless steel SS316 materials to ensure long-lasting performance. The filter regulator is capable of handling high pressures, making it ideal for applications where compressed air is used at high pressure. With its compact design and easy-to-use features, the SFRL Series is perfect for a wide range of industrial applications, including automotive, industrial, manufacturing, and more.

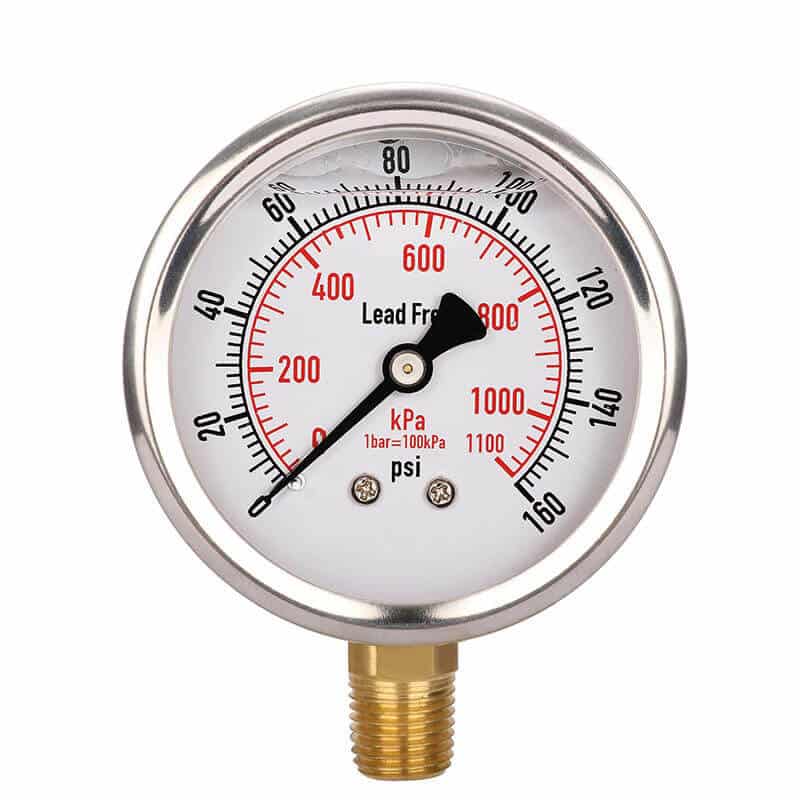

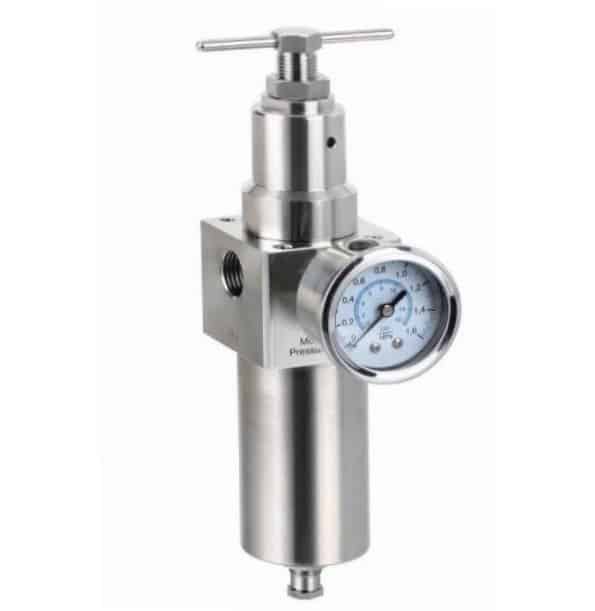

The high-pressure air filter regulator is equipped with a high-performance filter element that effectively removes dust, moisture, and other contaminants from the air, providing clean and dry air for your pneumatic tools and equipment. The regulator portion of the unit allows you to precisely control the output pressure, ensuring consistent performance of your pneumatic systems. The pressure gauge provides real-time pressure monitoring, allowing you to quickly and easily adjust the pressure to meet your specific requirements.

With its superior performance, durability, and ease of use, the SFRL Series High-Pressure Air Filter Regulator is the perfect choice for professionals who demand the best. Whether you need clean and dry air for painting, sandblasting, or other high-pressure applications, the SFRL Series will deliver consistent and reliable performance every time. Invest in the SFRL Series High Pressure Air Filter Regulator for unparalleled quality and peace of mind in your pneumatic systems.

Body material: SS316
Pressure: 0.15 MPa - 3.5 MPa
Max Pressure: 4.0 MPa
Filter: 5um, 10um, 20um, 40um, customized.
Pipe size:1/4”-1”
Fluid Media: Compressed air

• Integrated Design: Combines filtering, lubrication, and pressure regulation in one compact unit, saving installation space.

• Low Pressure Loss & High Water Separation Efficiency: Minimizes pressure drop while providing effective water separation.

• Filter Precision Options: Available in 5µm and 40µm for tailored filtration.

• High Filtration Precision: Effectively removes water, oil, solid particles, and other contaminants to ensure a clean air supply.

• Efficient & Rapid Contaminant Removal: Quickly eliminates water and particles for cleaner, more reliable operation.

• Comprehensive Protection: Filters impurities and prevents contaminants like water, oil, and solid particles from entering pneumatic components, while also lubricating to extend component lifespan.

• Prolonged Equipment Lifespan: By filtering particles from the air, it reduces wear and tear, ultimately extending the lifespan of your equipment.

• Enhanced Equipment Efficiency: Clean, filtered air improves the operational efficiency of your equipment.

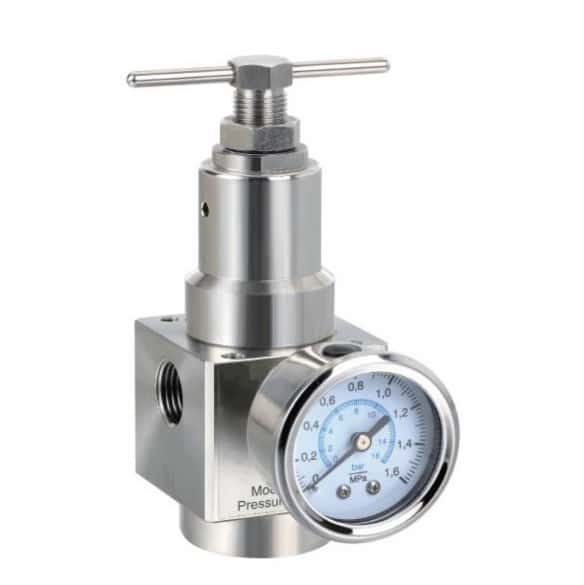

• Stable Output Pressure: The pressure-regulating valve ensures precise control of output pressure for smooth operation of downstream equipment.

• Improved System Reliability: Purification and lubrication reduce wear, enhancing the reliability of the overall system.

• Accurate Pressure Regulation: Delivers precise output pressure to ensure optimal operation of downstream components.

• Reduced Maintenance: Less frequent maintenance is required, thanks to reduced wear and corrosion on pneumatic components.

• Available Port Sizes: Options include M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', and 1''.

• Durable SUS316 Stainless Steel: Manufactured from high-quality, corrosion-resistant SUS316 stainless steel.

• High Resistance to Harsh Conditions: Built to withstand high pressure, extreme temperatures, and both acidic and alkaline environments.

• High Flow Rate: Supports efficient operation with a high flow capacity.
