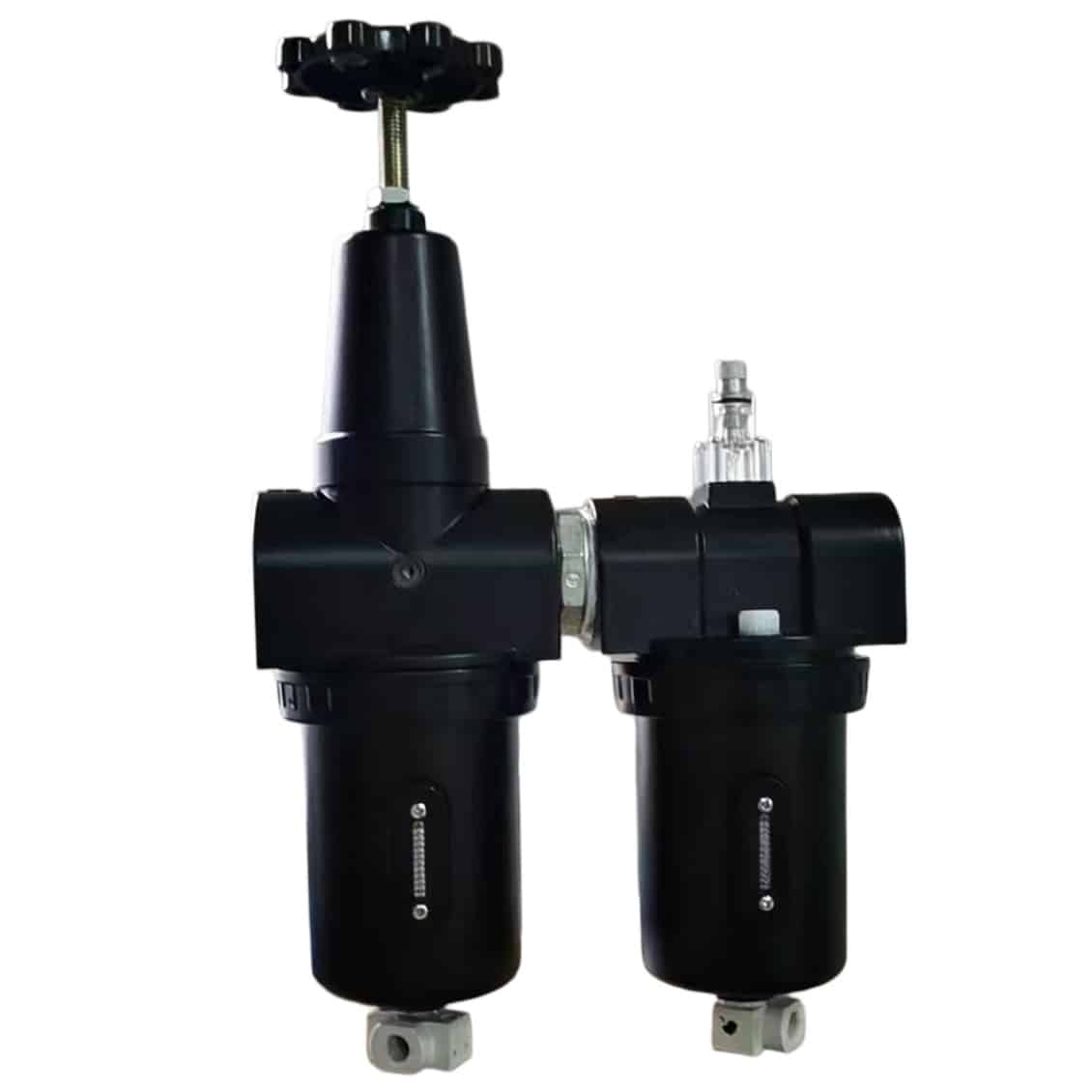

Large Flow Air Treatment Combination Pneumatic Filter Regulator Lubricator
SPC series big flow air filter regulator lubricator unit features stable and precise lubrication performance with a visible oil feeding design for easy monitoring. It provides reliable pressure regulation with high repeat accuracy, while effectively removing water and solid particles from compressed air systems. The compact and durable structure ensures easy installation and long service life. Manual, differential pressure, and automatic drain options are available to meet different application requirements.
Body material:Â Aluminum
Pressure: 0 Bar to 0.9 MPa
Max Pressure: 1.0 MPa
Pipe size: 1-1/2″ DN40, 2″ DN50
Fluid Media: Compressed Air

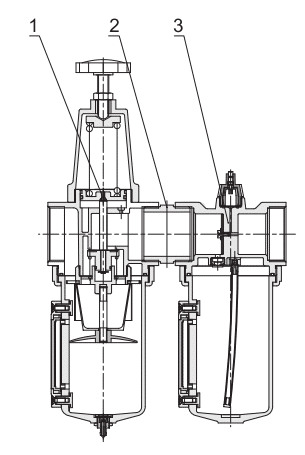

| 1 | Bracket |
|---|---|
| 2 | Filter Regulator |
| 3 | Lubricator |
| Type | SPC-40 | SPC-50 |
|---|---|---|
| Port Size(G) | 1-1/2″ (DN40) | 2″ (DN50) |
| Gauge Thread(G) | 1/4″ | |
| Media | Compressed air | |
| Operating Pressurerange(MPa) | 0.15～0.85 | |
| Ambient temperature(℃) | -10～60 | |
| Filterprecision | 5μm or 40μm | |
| Cup Material | Polycarbonate,Die-casting Aluminum | |
