OU Series Air Filter Regulator Lubricator Combination

The OU series air treatment combination consists of air filter, air regulator and air lubrication. Compact design, round pressure gauges and square pressure gauges as options. The OU series air preparation combinations have three sub-series depending on the size of the housing: MAX, MIDI and MINI. The body material also has two types, aluminum and Kirsite (zinc alloy), while the Kirsite material has better performance. The port size ranges from 1/8" to 1", and the working pressure can be up to 16 bar. High flow rate, efficient water removal from compressed air.

Specifications

Specification
MINI
MIDI
MAXI
Port Size
G1/8
G1/4
G3/8
G3/8
G1/2
G3/4
G3/4
G1
Materials Information
House: Zinc die-casting, Filter bowl and oil: Polycarbonate, Metal bowl guard: Aluminum alloy, Sealing: NBR, Adjusting knob: POM
Working Medium
Compressed air
Mounting Type
Pipe mounting or leg mounting
Assembly Position
Vertical ±5°
Min.Standard Nominal Flow Rate
3L/min
6L/min
10L/min
The capacity of Condensate Fluid
22ml
43ml
80ml
Turned Manually
0.1-1.6Mpa
Fully Automatic
0.15-1.2Mpa
Working Pressure
0.05-1.2Mpa/0.05-0.7Mpa
Precision
40um/5um
Working Temperature Range
0-60℃

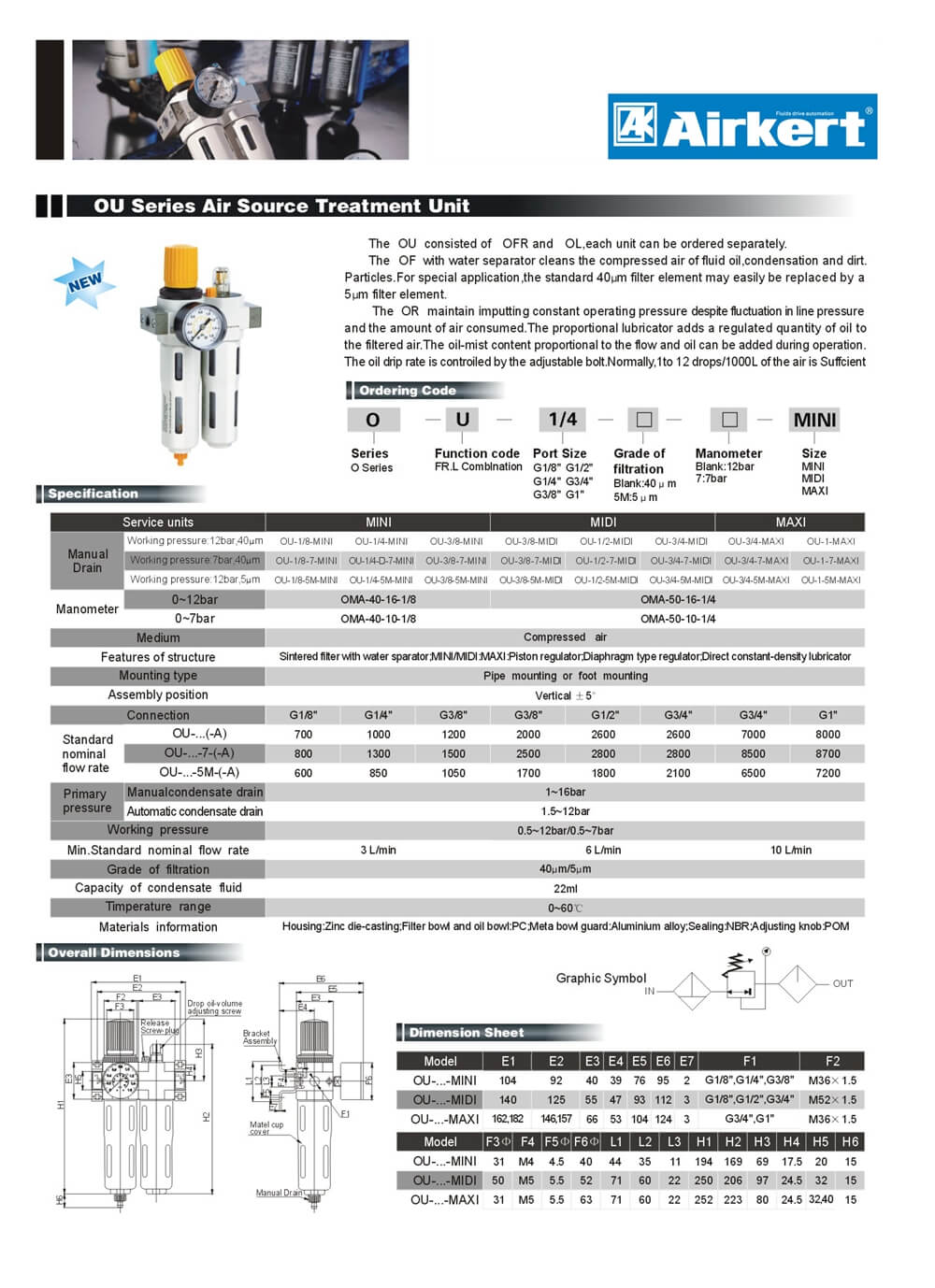

OU Series Air filter regulator
