| Ensured Pressure Resistance | 1.5MPa(15kgf/cm²) |
| Highest Working Pressure | 1.0MPa(10kgf/cm²) |
| Ambient and Fluid Temperature | 5-60℃ |
| * Filter Precision * | 25 µm |
| Recommended Oil Use | Turbine NO.1 Oil ISOVG32 |
| Container Material | Polycarbonate |
| Protective Cover | AC1000-2000(Not Available) AC2500-5000（Available） |
| Pressure Regulating Range | AC1000：0.05-0.7MPa(0.5-7kgf/cm²) AC2000～5000：0.05-0.85MPa(0.5-8.5kgf/cm²) |
| Valve Type | With Overflow |
| 5、50 µm available in addition | |

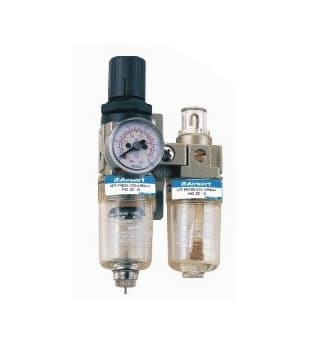

A series air treatment units SMC type
| Model | Specifications | Accessories | |||||||
| Assembly | Rated Flow （L/min） | Port Size （G） | Pressure Gauge Size（G） | Weight （kg） |
Bracket (tow) |
Pressure Gauge | |||
| Filter | Regulator | Mist separator | |||||||
| AC1000-M5 | AF1000 | AR1000 | AL1000 | 90 | M5 | 1/16 | 0.26 | Y10L | G27-10-R1 |
| AC2000-01 | AF2000 | AR2000 | HAL2000 | 500 | 1/8 | 1/8 | 0.74 | Y20L | G36-10-01 |
| AC2000-02 | 1/4 | ||||||||
| AC2500-02 | AF3000 | AR2500 | HAL3000 | 1500 | 1/4 | 1/8 | 1.04 | Y30L | |
| AC2500-03 | 3/8 | ||||||||
| AC3000-02 | AF3000 | AR3000 | HAL3000 | 2000 | 1/4 | 1/8 | 1.18 | Y30L | |
| AC3000-03 | 3/8 | ||||||||
| AC4000-03 | AF4000 | AR4000 | HAL4000 | 4000 | 3/8 | 1/4 | 2.14 | Y40L | G46-10-02 |
| AC4000-04 | 1/2 | ||||||||
| AC4000-06 | AF4000-06 | AR4000-06 | HAL4000-06 | 4500 | 3/4 | 1/4 | 2.47 | Y50L | |
| AC5000-06 | AF5000 | AR5000 | HAL5000 | 5000 | 3/4 | 1/4 | 3.82 | Y60L | |
| AC5000-10 | |||||||||
