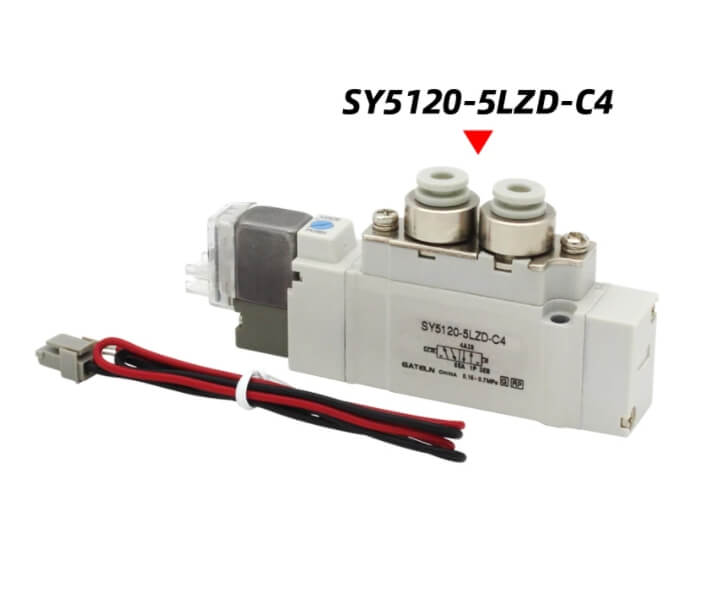

SMC Series SY5120 Solenoid Valve

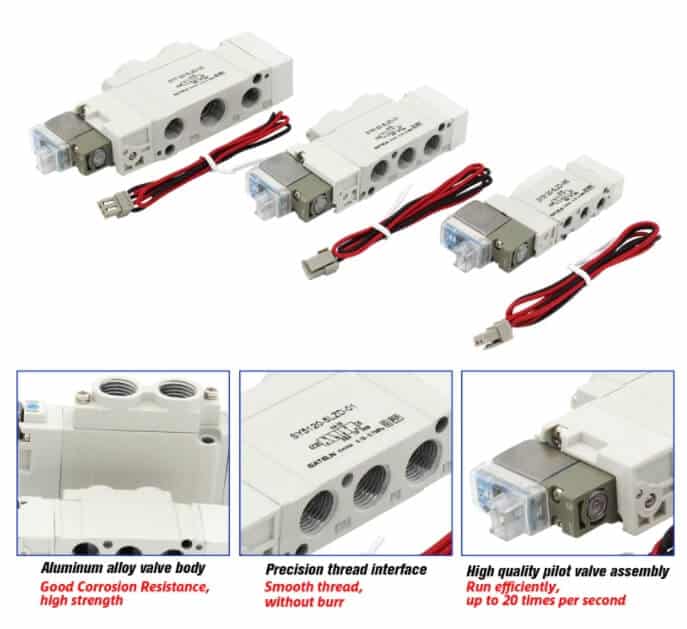

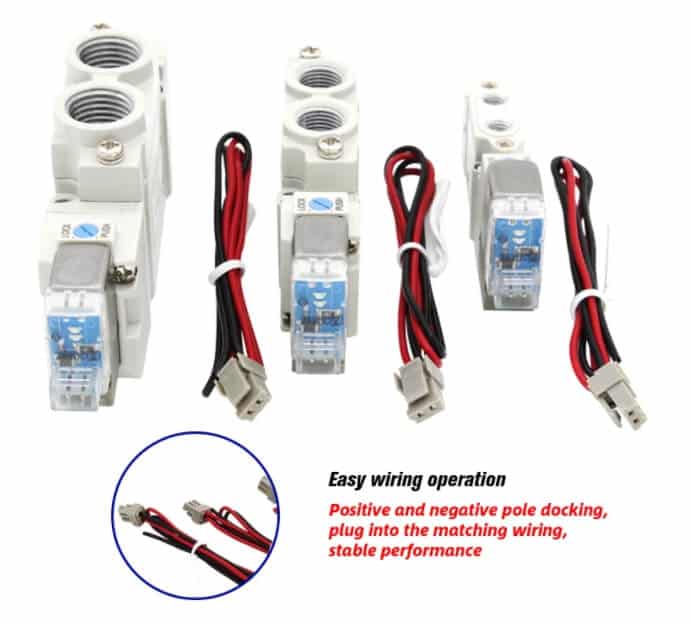

SMC alternative SY5120 solenoid valve is suitable for operating single acting or double acting pneumatic cylinders in pneumatic driven automation systems. Compact design, low consumption, 2 positions and 3 positions is optional. Connection type has DIN connector and lead wire type. Multiple solenoid valves can be mounted in air solenoid manifold, with more control options.
Features:

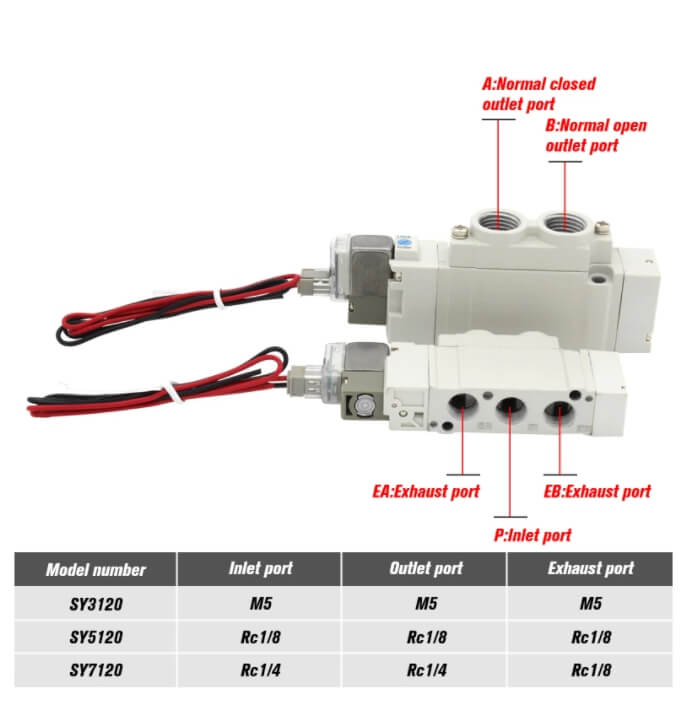

1. The combined mounting of a 3-port valve and a 5-port valve is available.
2. Power consumption: 1W (built-in power saving circuit)

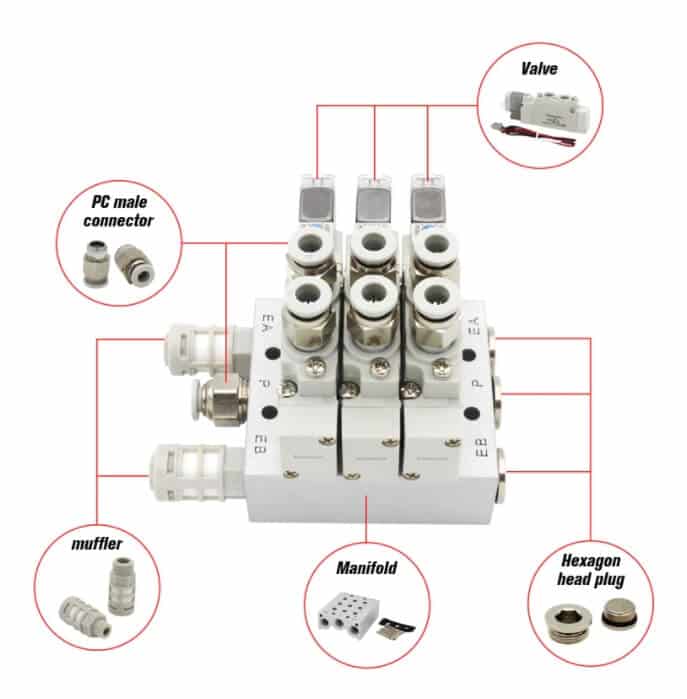

3. A wide variety of manifold options are available, like the aluminum body
manifold, DIN Rail, and stacking type manifold.
4. Manifold type No.: SS5Y3, SS5Y5, SS5Y7, SS5Y9
2. Power consumption: 1W (built-in power saving circuit)
3. A wide variety of manifold options are available, like the aluminum body
manifold, DIN Rail, and stacking type manifold.
4. Manifold type No.: SS5Y3, SS5Y5, SS5Y7, SS5Y9
Body material: Aluminum
Pressure:1-10 bar, 150 PSI
Fluid Media: Compressed air
|
Model
|
SY3000
|
SY5000
|
SY7000
|
SY9000
|
|
|
Fluid
|
Air
|
||||
|
Internal pilot Operating pressure range (Mpa)
|
5/2 Way Single
|
0.15 ~ 0.7
|
|||
|
5/2 Way Double
|
0.1 ~ 0.7
|
||||
|
5/3 Way Double
|
0.2 ~ 0.7
|
||||
|
Ambient and fluid Temperature
|
-10 ~50 ℃ (No freezing)
|
||||
|
Max Operating frequency
|
5/2 Way Single/Double
|
10
|
5
|
5
|
5
|
|
5/3 Way Double
|
3
|
3
|
3
|
3
|
|
|
Manual Operating
|
Non-lock push type,Push-turn locking slotted type,
Push-turn locking lever type
|
||||
|
Pilot exhaust method
|
Common exhaust type for main and pilot valve
|
||||
|
Mounting orientation
|
Not required
|
||||
|
Lubrication
|
Unrestricted
|
||||
|
Impact/Vibration resistance(m/s²)
|
150/30
|
||||
|
Enclosure
|
Dust proof (DIN terminal and M8 connector: IP65)
|
||||
