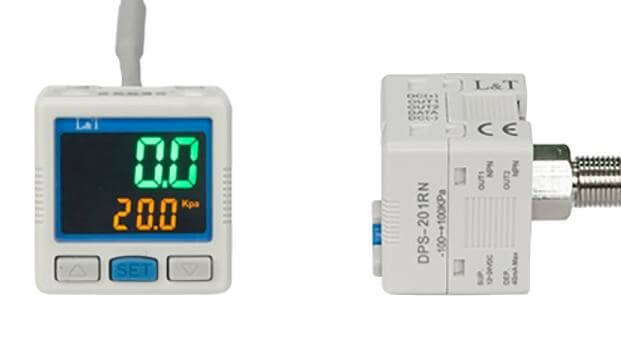

High Precision Multifunction Dual-channel LCD Digital Display Air Pressure Controller Vacuum Digital Pressure Switch
LCD Digital Display Air Pressure Controller Vacuum Digital Pressure Switch DPS series, compound type and positive type, easy to read out for general pneumatic systems. Cable included, with back thread connection. This precise pressure transmitter can be widely used in measuring air, water, steam, gas, and other fluids. 1/8" back connection thread, 4 groups display models, adjustable backlight, 3 setting buttons, electrical interface socket. Measurement patterns have Hysteresis mode, Single point mode, and Window mode.
Features:

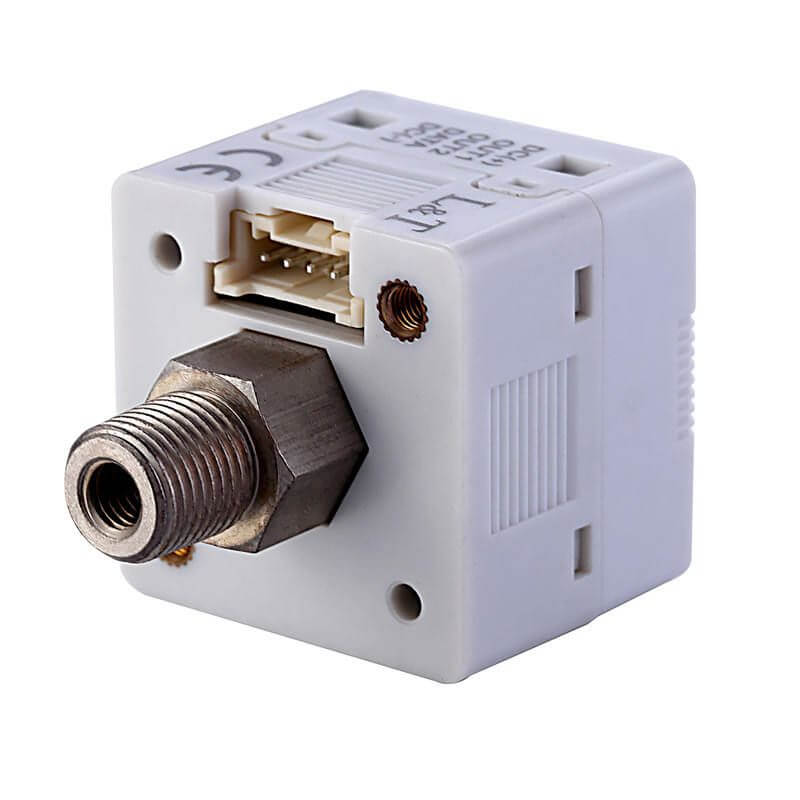

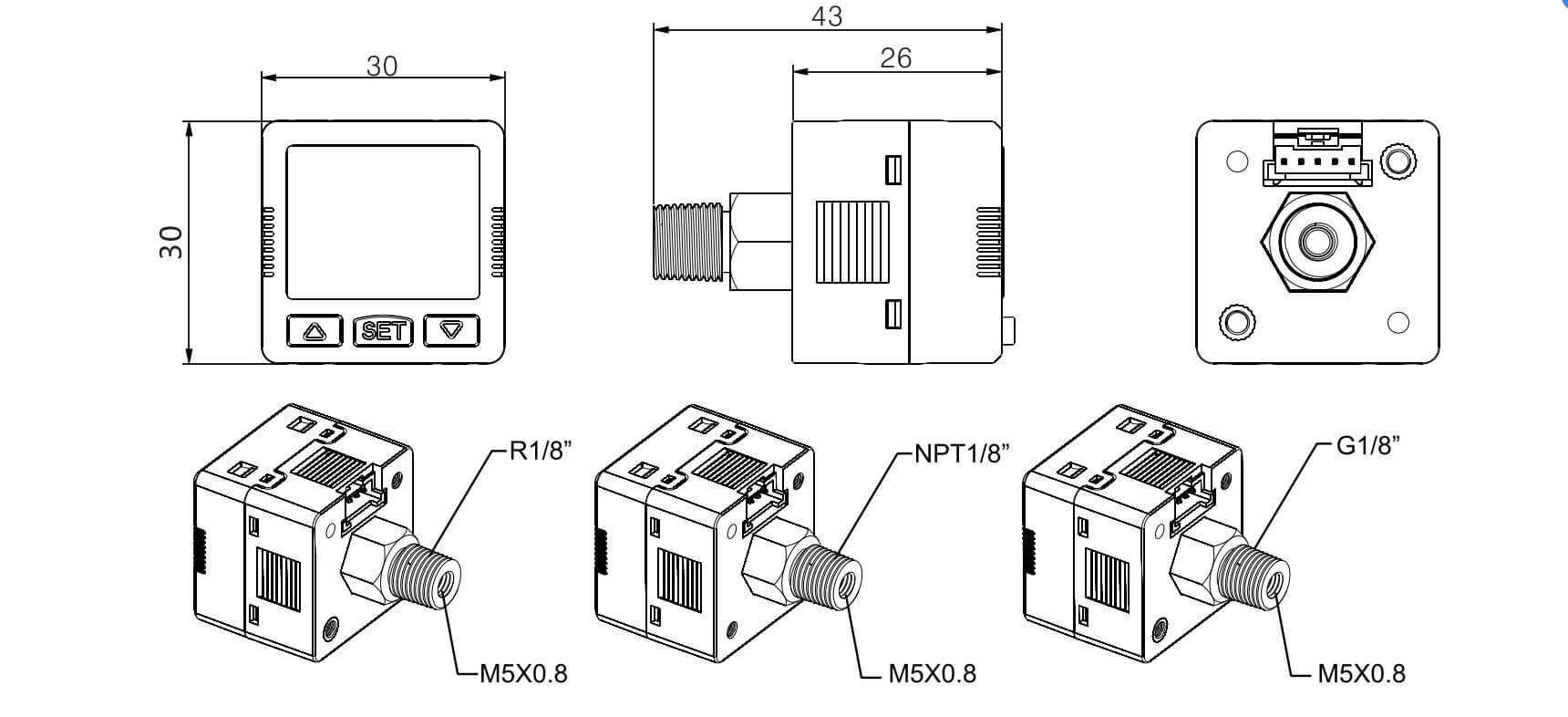

1. 1/8" BACK connection

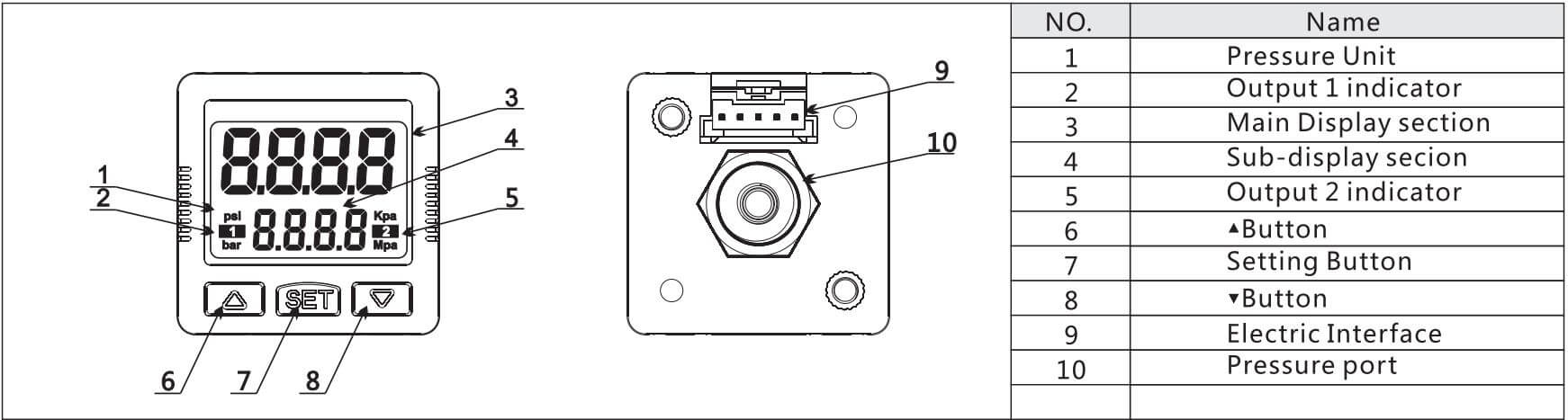

2. Double LCD Display
3. 4 digital measurement value
4. Adjustable backlight
2. Double LCD Display
3. 4 digital measurement value
4. Adjustable backlight
|

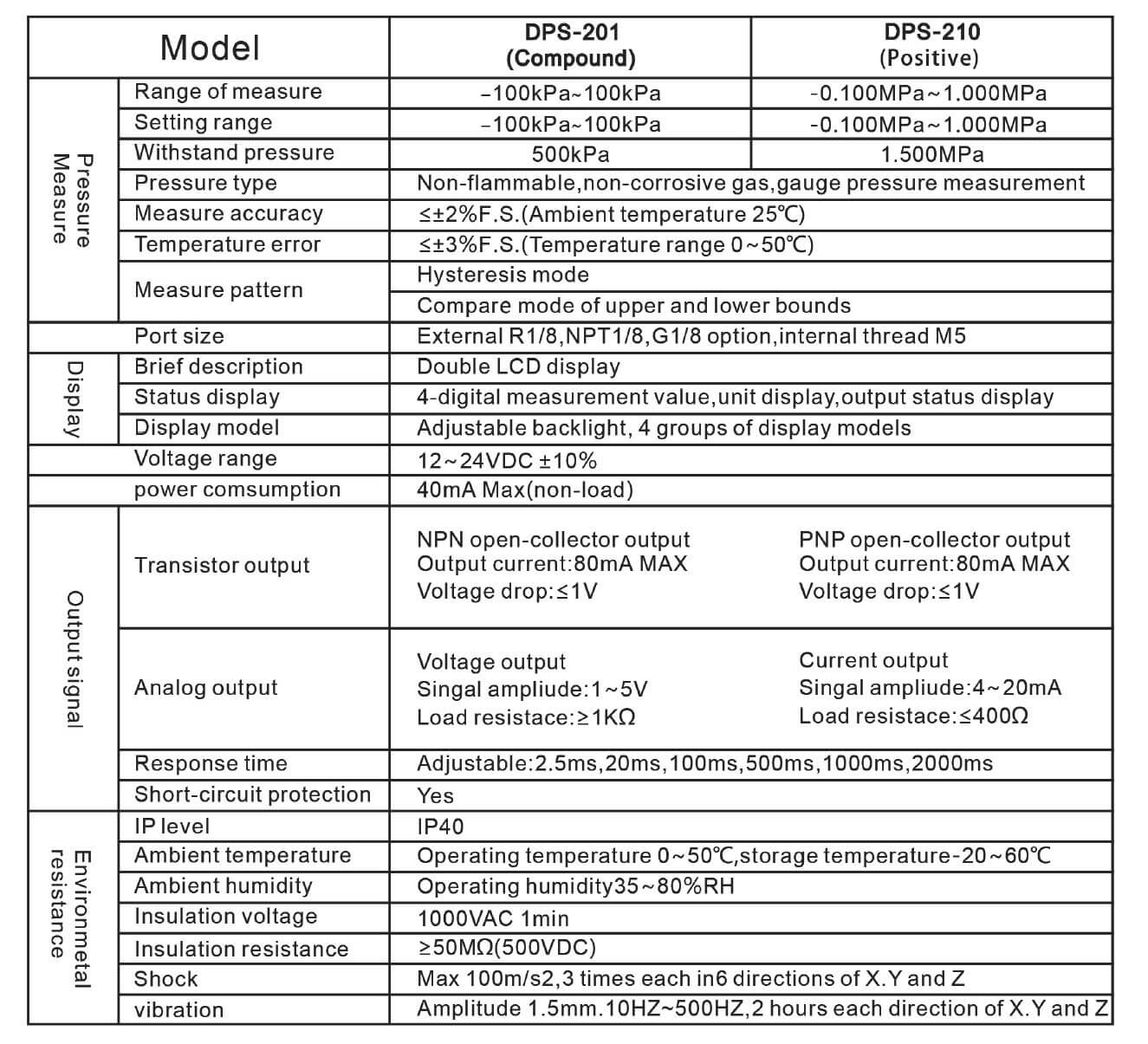

Model Number
|
DPS
|
|
Max. Current
|
40mA
|
|
Max. Voltage
|
24VDC
|
|
Max. Working Pressure
|
1.0 Mpa
|
|
Product name
|
digital water pump pressure switch
|
|
Pressure Types
|
Non-flammable,non-corrosive gas, gauge pressure measurement
|
|
Measurement Pattern
|
Hysteresis mode,Single point mode,Window mode
|
|
Consumed Power
|
40mA Max(non-load)
|
|
Response Time
|
Adjustable:2.5ms,20ms,100ms,500ms,1000ms,1500ms
|
|
IP Level
|
IP40
|
|
Insulation Voltage
|
1000VAC 1min
|
|
Insulation Resistance
|
≥50MΩ(500VDC)
|
|
Impact Resistance
|
Max 100m/s2,3 times each in6 directions of X.Y and Z
|
