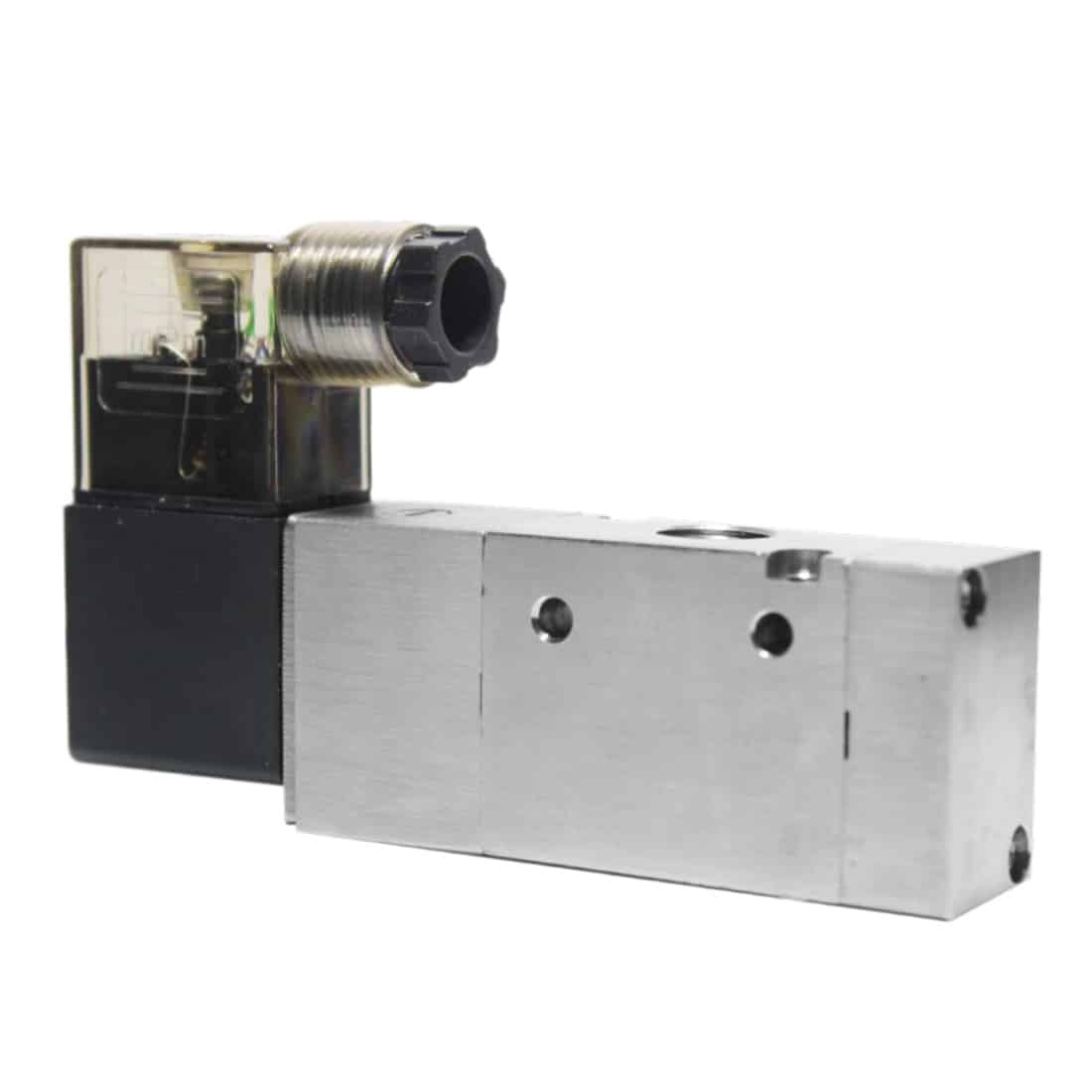

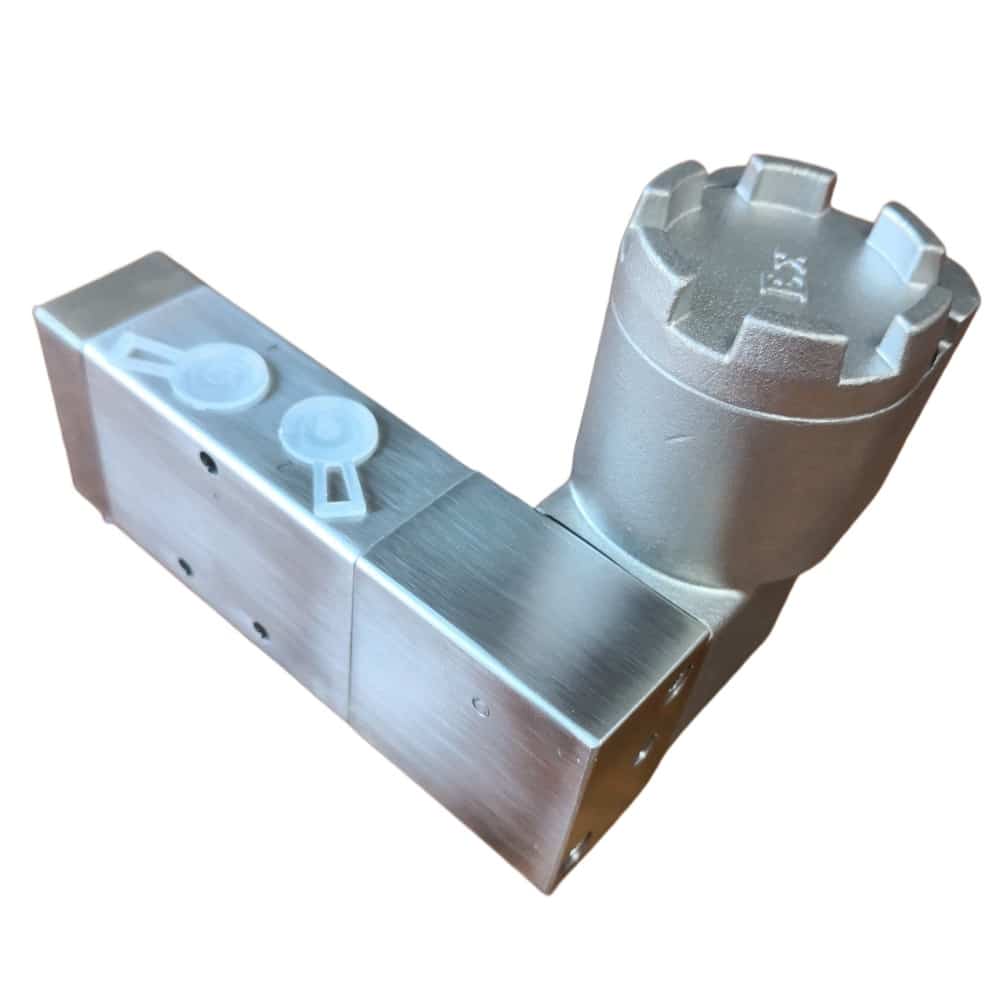

Ex d Flameproof SS316L Stainless Steel Solenoid Directional Valve
Designed for the most demanding hazardous environments, our premium SS316L stainless steel flameproof directional control solenoid valve delivers unparalleled reliability and extreme corrosion resistance.
Available in both two-position three-way (2/3-way) and two-position five-way (2/5-way) configurations, this versatile valve is engineered to seamlessly pilot both single-acting and double-acting pneumatic actuators. Its robust Ex d flameproof enclosure ensures maximum safety by preventing internal sparks from igniting external explosive atmospheres. Built with medical/marine-grade SS316L, it stands up to harsh media and corrosive surroundings, making it the ultimate fluid control solution for oil & gas, petrochemical, and offshore applications.
Key Features:
-
Configurations: Two-position three-way (for spring-return actuators) & Two-position five-way (for double-acting actuators).
-
Material Excellence: Crafted entirely from SS316L stainless steel, offering superior resistance to chemical attack and salt spray.
-
Safety First: Authentic flameproof design (Ex d), widely compatible with ATEX, IECEx, and CNEX standards for hazardous areas.
-
Precision Control: High-performance directional control solenoid valve mechanisms ensure rapid response times and zero leakage.
Technical Specifications
- Size: G 1/8″, G 1/4″
- Material: SS316L
- Media: Air
- Temperature: -20°C to +80°C
- Voltage: 24VDC, 220VAC, 110VAC, 12VDC
- Connection: Threaded
- Seal: NBR+PUR, HNBR
- Control Type: Normally Closed (NC)
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Way | Body Material | Operation | Coil Type | Thread Standard |
| SSV | 08 | U2 | H | 3 | S | C | X | N |
| 06: 1/8″ 08: 1/4″ |
U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC | N: HNBR NBR+PUR | 3: 3/2 5: 5/2 |
B: Brass A: Aluminum S: SS316 |
C: Normally Closed O: Normally Open | D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof | B: BSP G: G N: NPT |
Dimensions
Technical Specifications
| Position and Way NO. | 3/2 Way / 5/2 Way G 1/8″, G 1/4″ |
|---|---|
| Working Medium | 40 Micron Filtered Air |
| Motion Pattern | Inner Guide Type / Direct Acting Optional |
| Working-pressure | 0.15~1.2 M Pa |
| Max. Pressure Resistance | 1.6MPa |
| Operating Temperature | -20~80 ℃ |
| Voltage Range | ±10% |
| Seal | HNBR, NBR+PUR |
| Coil | F Class. IP65 / Ex db IIC T6, Ex db IIIC T80 C Db |
| Wiring Form | Lead Wire or Connector type |
| Material | SS316L |
| Cable Connection | NPT 1/2″ |
