CY3B Rodless Cylinder SMC CY1B Alternative Air Cylinder

CY3B magnetic coupling rodless cylinder: can directly install the load and has large holding force; is light in weight, simple in structure, and takes up little space; the rodless cylinder has a wide range of stroke options, and the stroke is larger than that of ordinary cylinders; there is no mechanism between the piston and the slider Excellent connection and sealing performance.

Features:

1. Light Weight
2. Large Holding Force
3. Compact Design, Space-Saving
4. Bore, Stroke customizable
5. Great Sealing Performance

Body material: Aluminum
Pressure: 0-10 bar, 150 PSI
Fluid Media: Air
Series: CY1B CY3B Basic Type

CY3B Series Magnetically Coupled Rodless Cylinders: Precision and Versatility for Diverse Environments

  • Leak-Proof Design: Engineered for reliability, the CY series ensures no external leakage, making it suitable for a wide array of environments.
  • Space-Efficient and Versatile Applications: These cylinders utilize magnetic coupling, offering a broad spectrum of applications while conserving mounting space.
  • Integrated Guides for Load and Moment Management: Equipped with integrated guides, the CY series can handle various loads and moments, enhancing operational stability.
  • Customizable Accuracy and Moment Capability: A selection of guides is available to meet specific accuracy requirements or allowable moments for diverse applications.
  • Comprehensive Range of Sizes: Available in 9 bore sizes, ranging from 6mm to 63mm, with standard strokes up to 1000mm, accommodating a wide range of industrial needs.
  • Multiple Model Options: With 5 different model variations, the CY series presents the widest choice for application-specific requirements.
  • Integrated Auto Switches: Standard integration of auto switches enhances functionality and ease of use.

Specifications:

  • Type: Magnetically coupled rodless cylinder, direct mount type with switch rail.

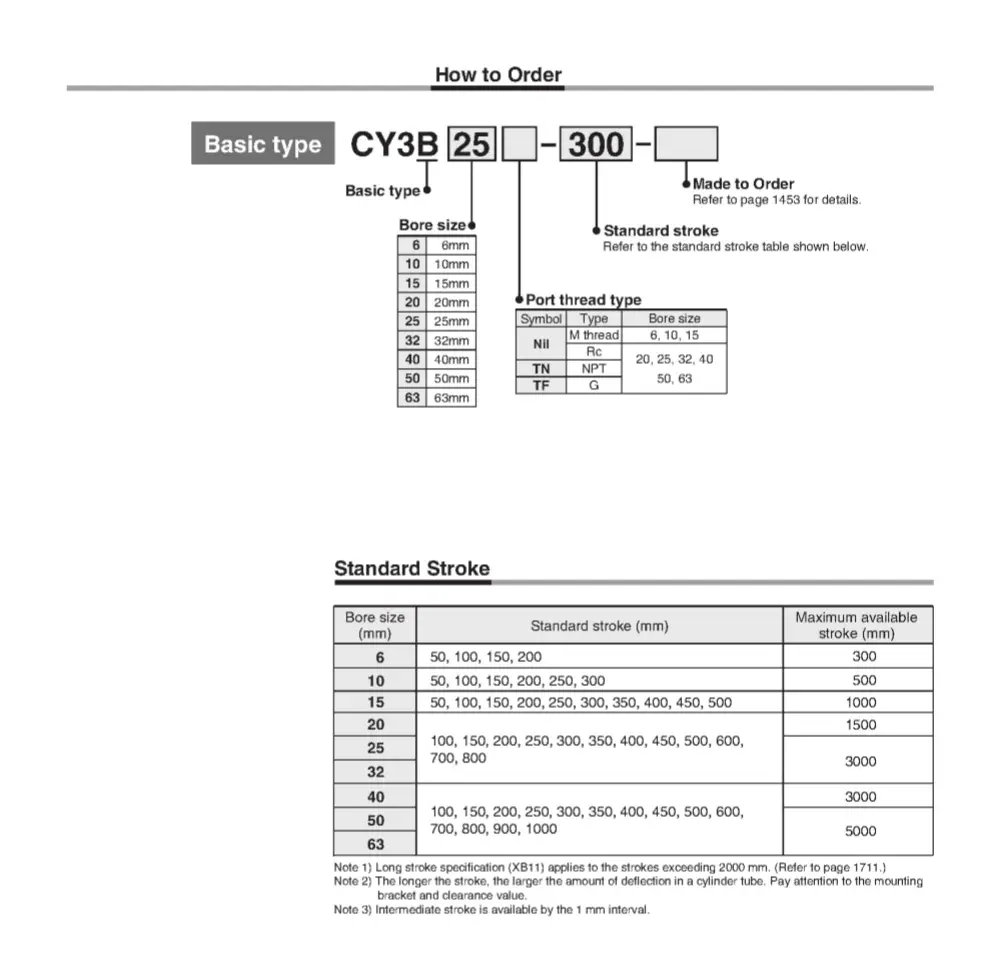

  • Bore Sizes: Available in 6, 10, 15, 20, 25, 32, 40, 50, 63mm.
  • Maximum Operating Pressure: 0.7MPa.
  • Ambient Operating Temperature: Ranging from -10 to 60°C.
  • Auto Switch Options: A diverse array of auto switches is available to suit different operational needs.
