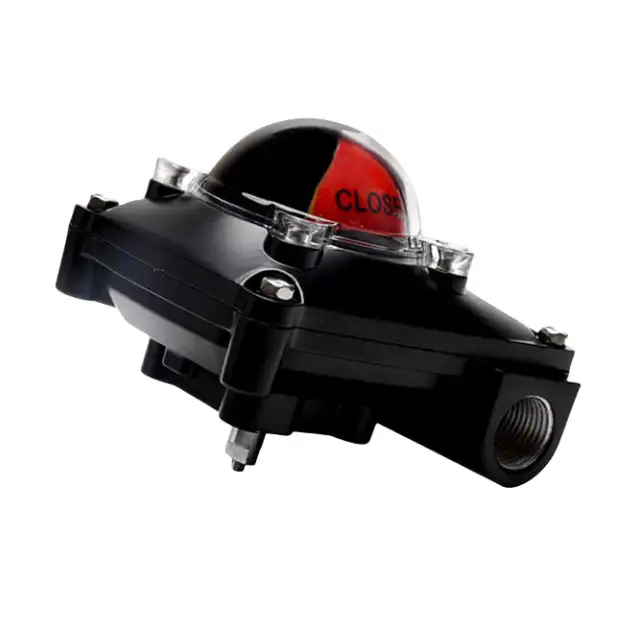

APL-210N Limit Switch Box
The APL-210N Series Limit Switch Box by AIRKERT Pneumatic is a small, waterproof housing with internal adjustable position switches and an external visual indicator. It features NAMUR-standard mounting and drive, making it perfect for installation on quarter-turn actuators and valves. APL series limit switch box is designed to accurately and reliably signal and indicate the position of most valves or actuators. APL-210N Sensor for the position feedback.
Features:
● Solid and compact design with an aluminum die-cast housing and polyester powder-coated finish.
● Bolt-on visual position indicator for easy monitoring.
● Quick-set spring-loaded splined cam eliminates the need for readjustment after initial setting and can be easily set without the use of tools.
● Dual cable entries for versatile installation options.
● Captive cover bolts prevent loss when the cover is removed.

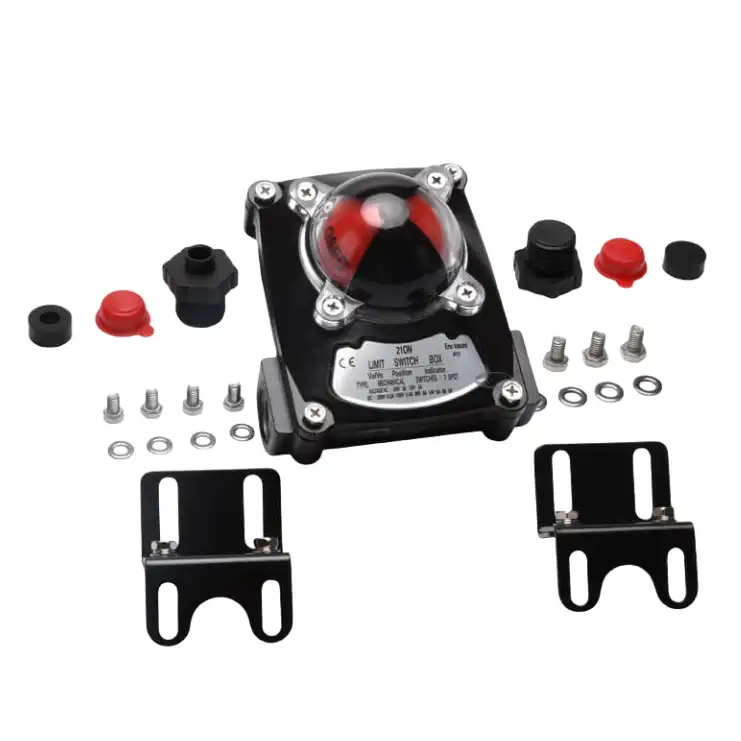

● NAMUR-standard stainless steel shaft and bracket for reliable performance.
|
Product Model
|
APL-210N Series
|
|
Enclosure explosion proof
|
IP65
|
|
Temperature Scale
|
-25℃ to 85℃
|
|
Connection port size
|
G1/2″,G3/4″
|
|
Terminal connection
|
8 Points ( 0.08-2.5mm2)
|
|
Indicator position
|
0-90°
|
|
Operation
|
Mechanical
|
|
Potentiometer
|
1KΩ
|
|
Current feedback
|
4~20mA
|
