Burkert Type 5404 Solenoid Valve
5404 Solenoid Valve Series 2/2-way High Pressure Solenoid Valve and High Temperature Solenoid Valve Normally Closed. Alternative valve of Burkert Type 5404 solenoid valves for high-pressure use. 5404 solenoid valve series pilot acting solenoid valves can support high working pressure of 5.0 MPa and high temperature. This series solenoid valves have two types coil: flying leads type and DIN type, and the port size ranges from 1/2” to 1”.
Features:
1. Type 5404 2-way solenoid valve
2. Port Sizes: 1/2″, 3/4″, 1″
3. Thread Standard: G, BSP, NPT
4. Materials: Brass, Stainless Steel
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/2″, 3/4″, 1″
3. Thread Standard: G, BSP, NPT
4. Materials: Brass, Stainless Steel
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-50 bar, 5 MPa
Fluid Media: Air, Water, Liquid Oil, Steam.
Fluid Media: Air, Water, Liquid Oil, Steam.

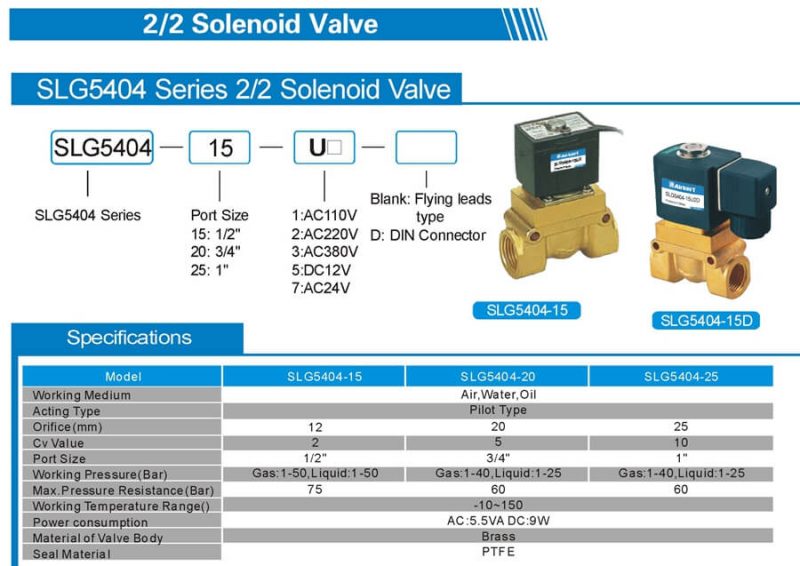

| Working Medium | Air,Water,Oil, Steam |
| Operation | Direct Acting |
| Acting Type | Normally Closed |
| Orifice Size(mm) | 1/2″ 12mm, 3/4″ 20mm, 1″ 25mm |
| CV Value | 1/2″ 2, 3/4″ 5, 1″ 10 |
| Port Size | 1/2″, 3/4″, 1″ |
| Operation Fluid Viscosity | 20 CST Below |
| Operating Pressure | Air：1~5.0Mpa, Liquid: 1 – 2.5 MPa |
| Max. Pressure Resistance | 6.0Mpa |
| Operating Temperature | -20~180℃ |
| Voltage Range | ±10% |
| Material of Body | Brass |
| Material of Oil Seal | PTFE |
