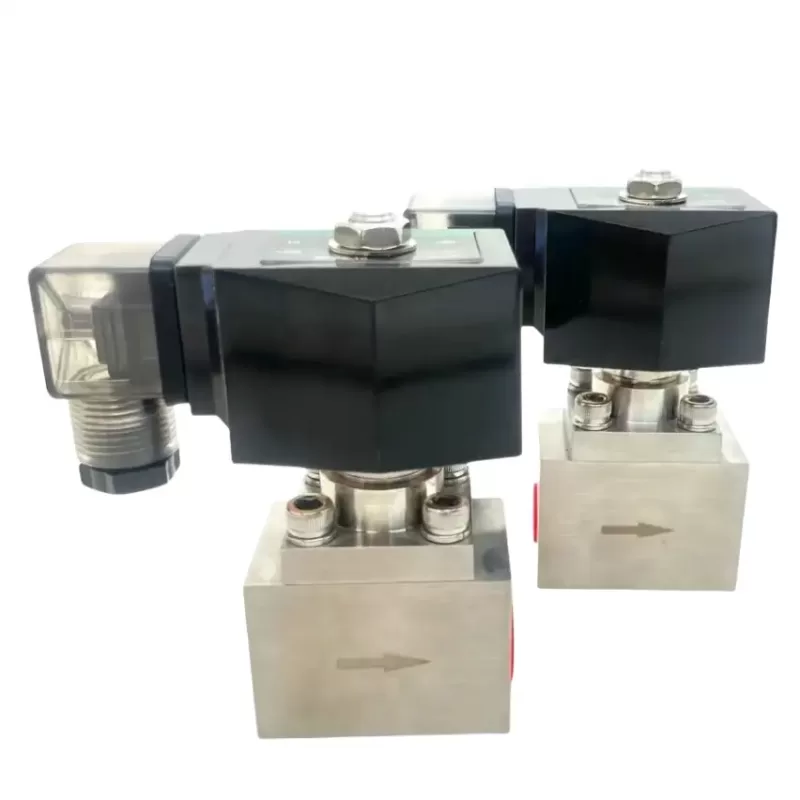

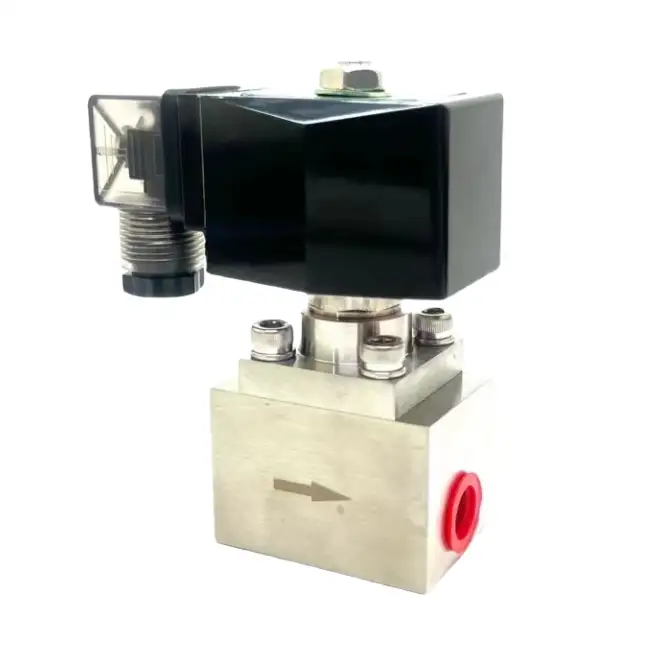

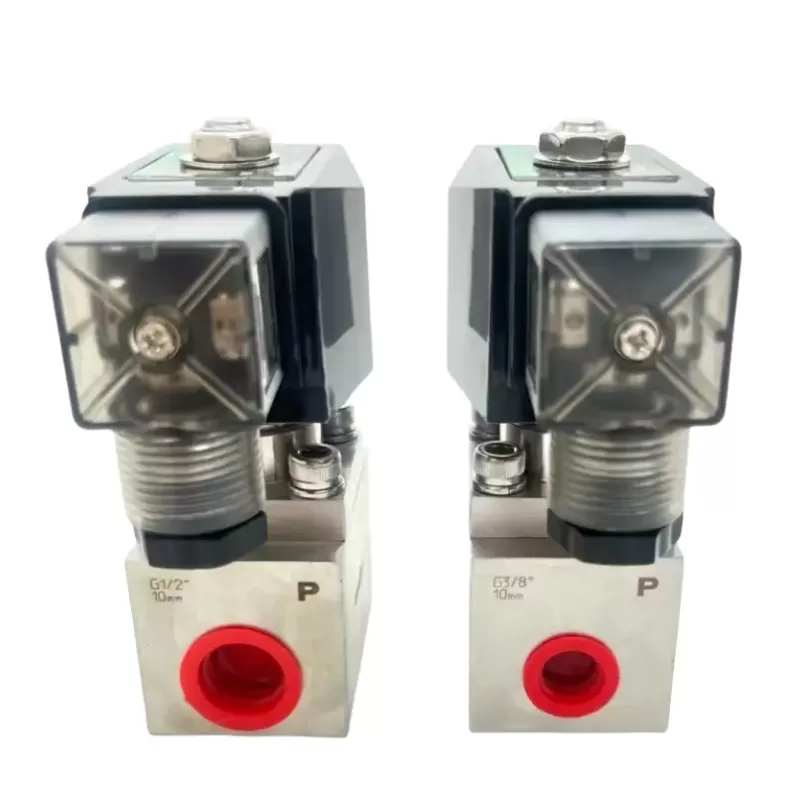

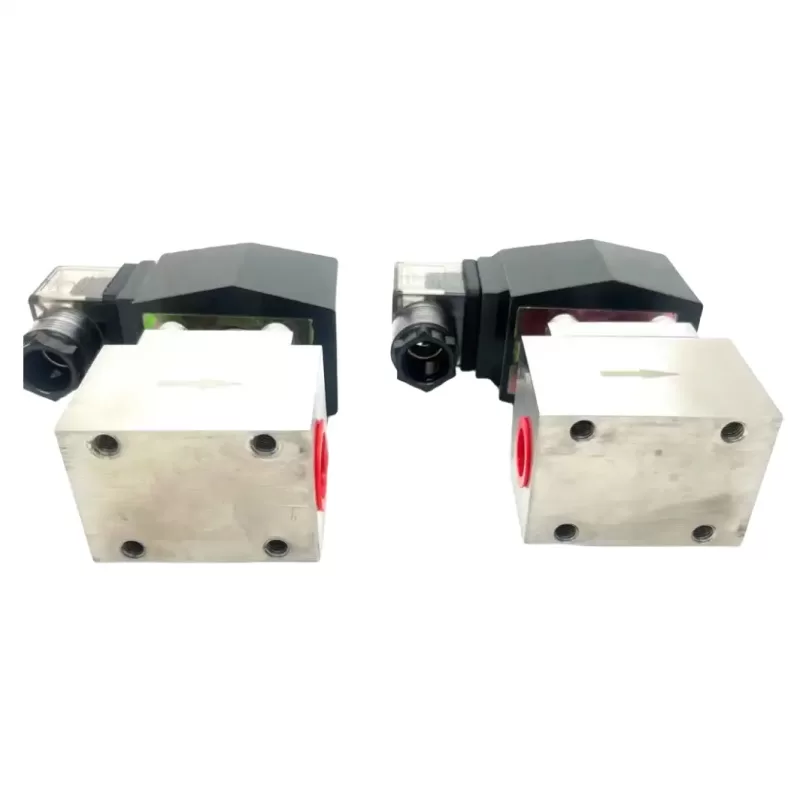

Stainless Steel 3/8″ 1/2″ 200 Bar 20 MPa High Pressure Solenoid Valve
HTG Series Super High pressure solenoid valve is designed to meet applications that need super high pressure resistance, pressure up to 20 MPa 200bar. SS304 AND SS316 durable material. The HTG high pressure solenoid valve direct acting type, has a thread size ranging from 3/8 and 1/2″.We started production when the factory was established. Anti corrosion durable stainless steel body, for high pressure applications, stainless steel type is recommended. And the function can be a normally closed valve and normally open. With good quality and stable performance, this type of solenoid valve is widely used in many different industrial fields. Our output can reach 600,000Pcs per year.
Body material: SS304 SS316
Pressure:1-200 bar, 20 MPa
Orifice: 10mm
Pipe size: 3/8″, 1/2″
Fluid Media: Water、Hot Water、Air、Gas 、Oil Etc
| Working Medium | Air, Water,Oil,Gas, Steam |
| Operation | Direct Acting |
| Acting Type | Normally Closed |
| Orifice Size(mm) | 10mm |
| CV Value | 4.3 / 7 / 11 |
| Port Size | 3/8″, 1/2″ |
| Operation Fluid Viscosity | 20 CST Below |
| Operating Pressure | 200 bar, 20 MPa |
| Max. Pressure Resistance | 200 bar |
| Operating Temperature | VITON for -5~150℃ |
| Voltage Range | ±10% |
| Material of Body | SS304, SS316 |
| Material of Oil Seal | NBR VITON |
