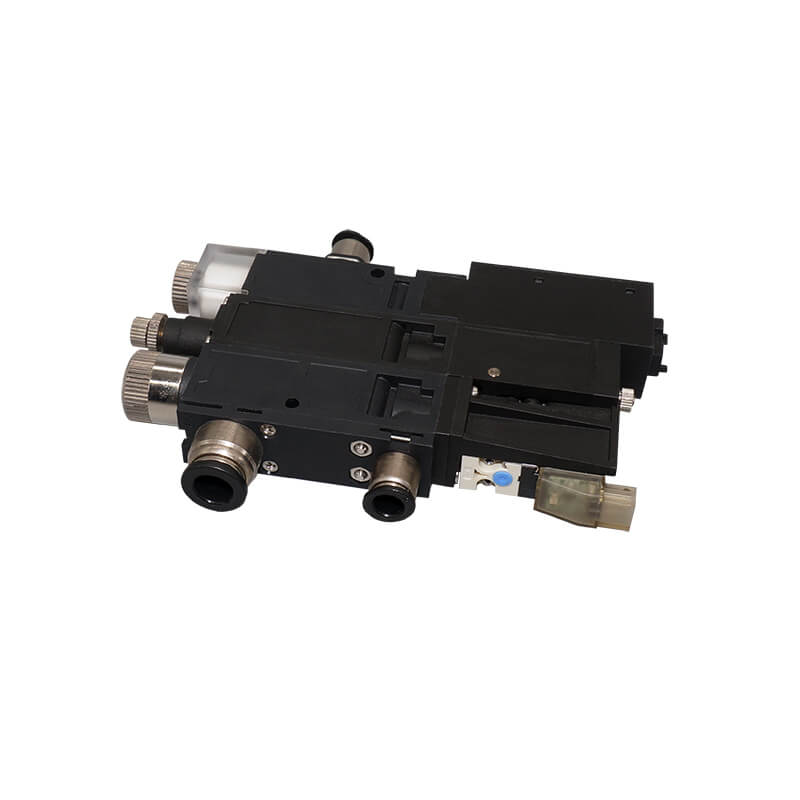

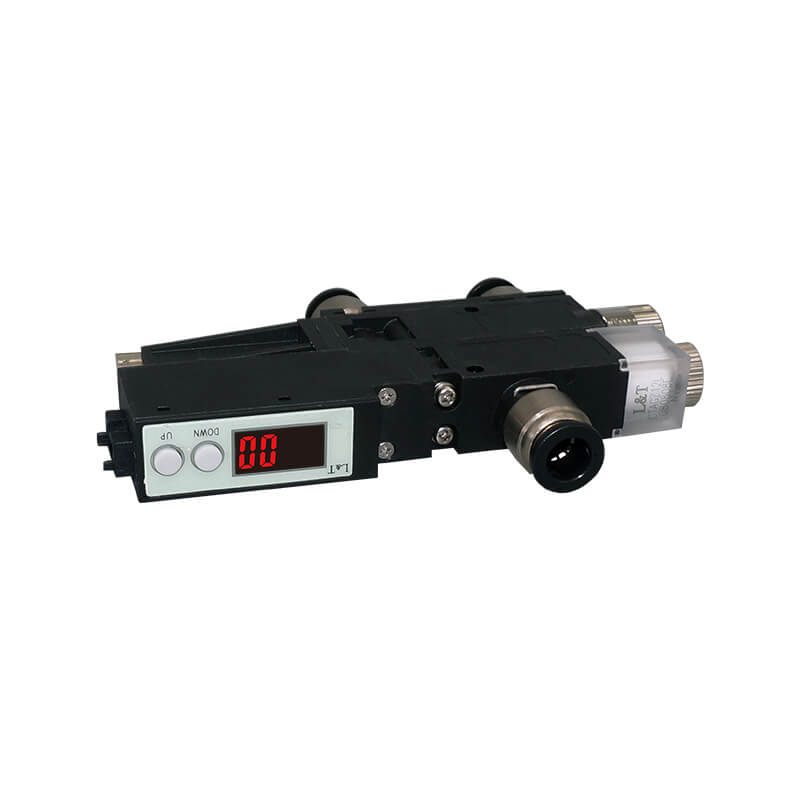

VK Series Vacuum Generator Alternative
The Alternative VK Series Vacuum Generator is a compact and efficient device designed to create vacuum suction for various applications. It provides reliable performance and can be easily integrated into existing systems. Vacuum Creator is a high-performance device capable of generating strong and consistent vacuum pressure. It is designed for demanding industrial environments and can handle heavy-duty applications with ease. With its durable construction and advanced features, it is suitable for demanding tasks that require reliable vacuum performance.
Features:

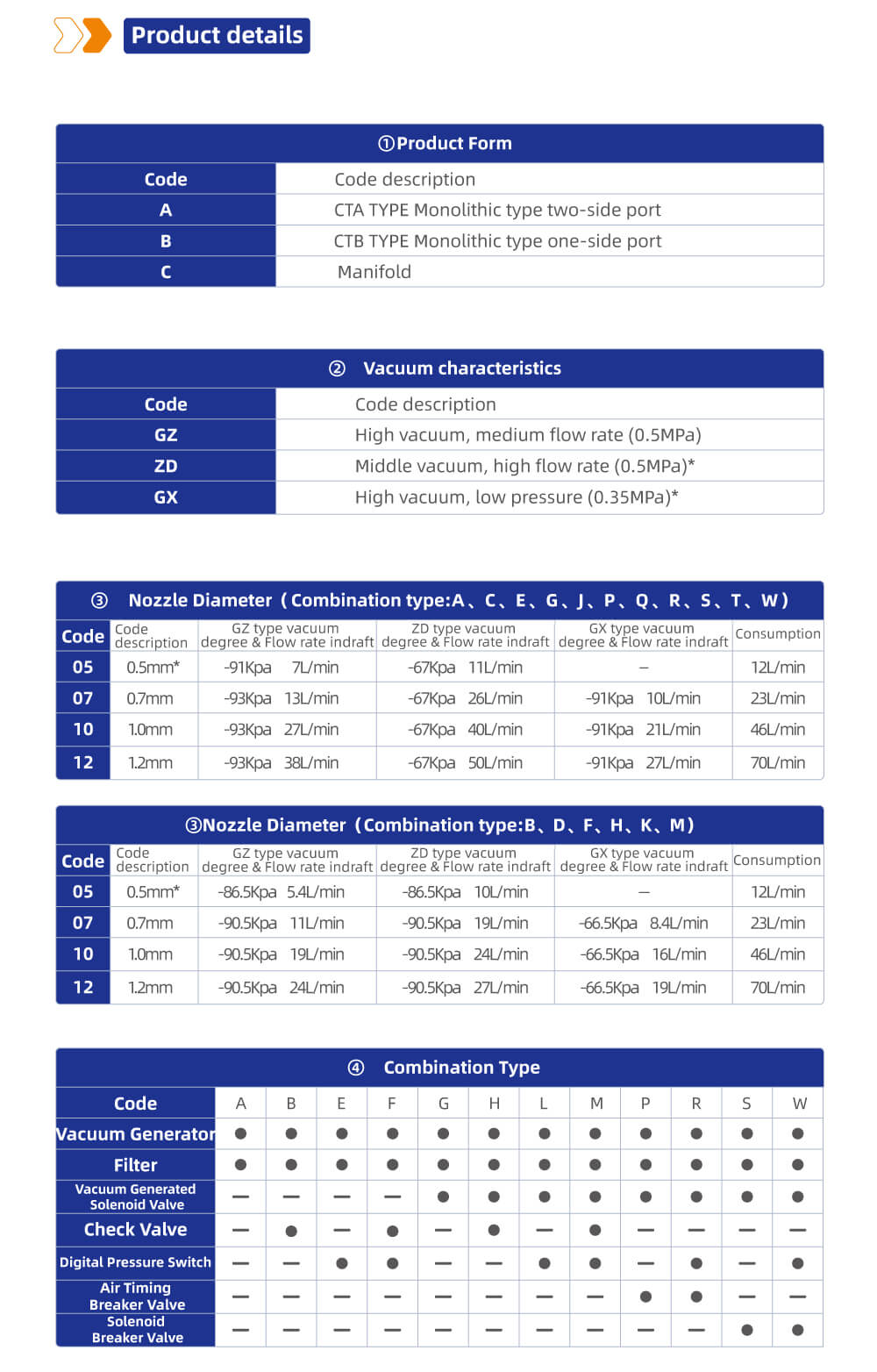

- Max 12 optional types

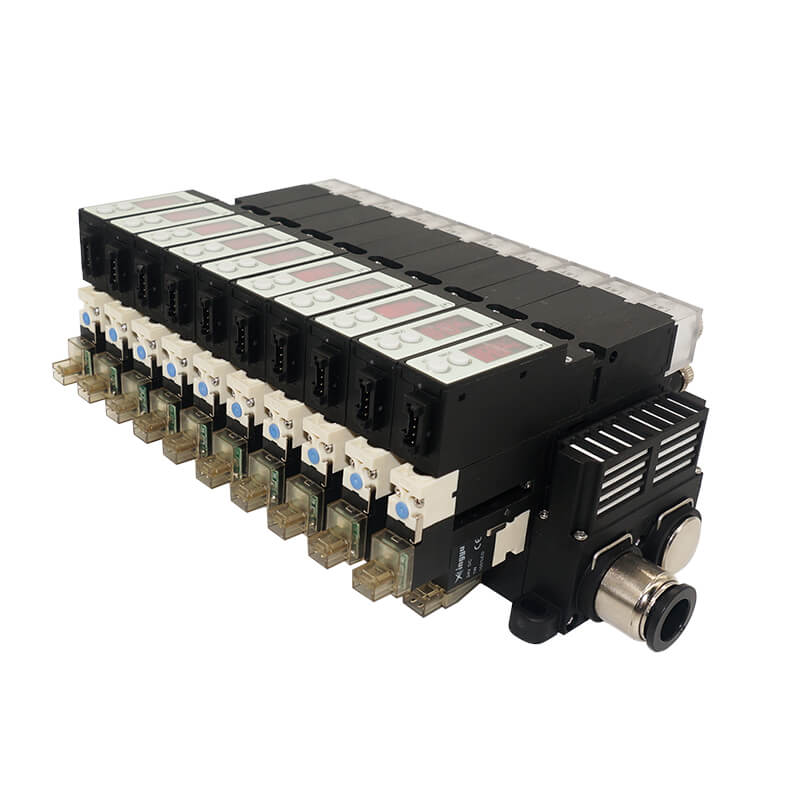

- Can be manifold mounting
- Working pressure range: 0.25~0.7 Mpa
- Strong vacuum Preservation Ability
- Various Vacuum Nozzle Orifice. Can be used on all kinds of occasions
- Vacuum Destroying flow rate: 0~40 L/min

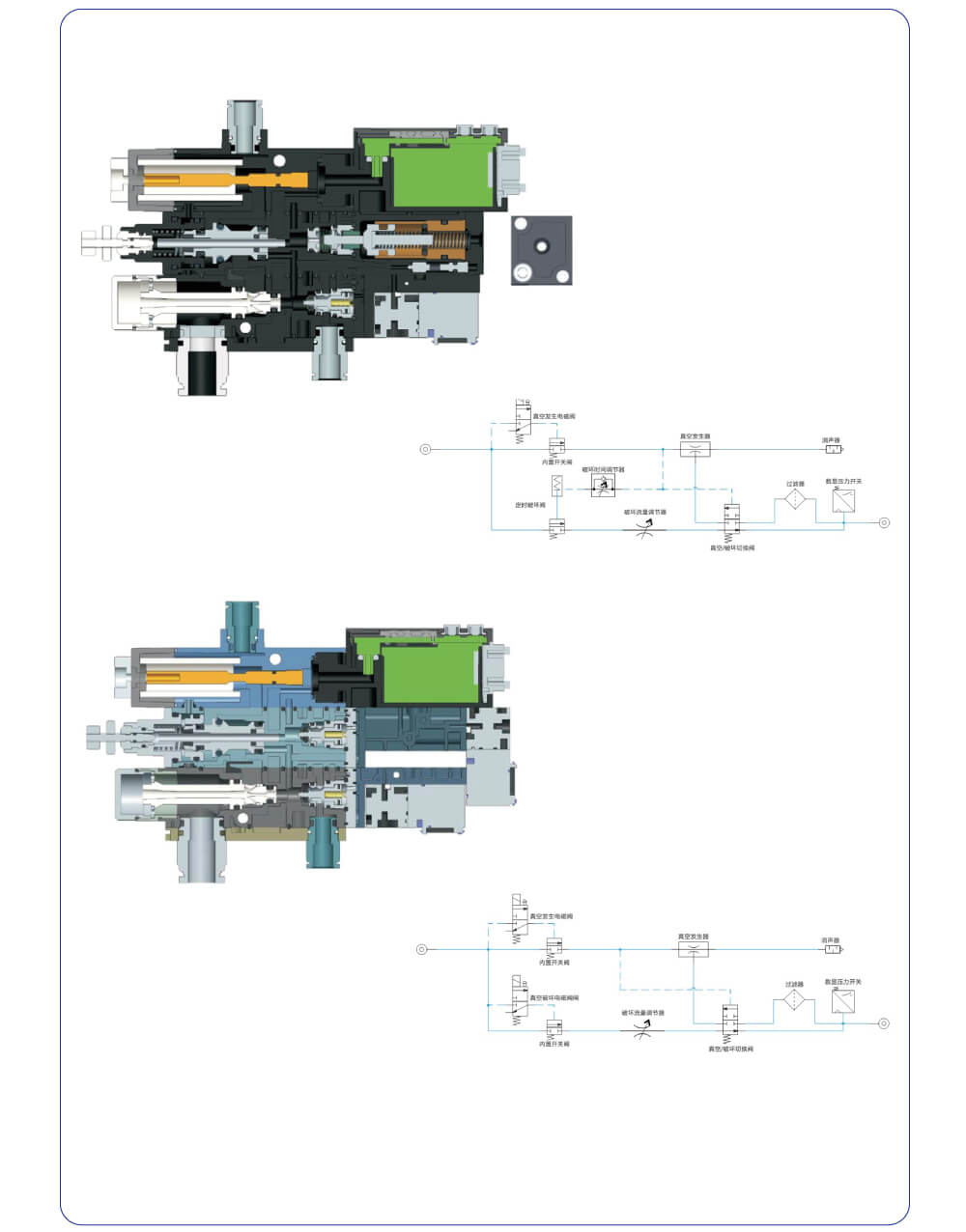

- Combination: Vacuum generator/ filter/ solenoid valve/ check valve
Body material: Aluminum
Pressure: 0.25 – 0.7 Mpa
Fluid Media: Compressed air
|
Working medium
|
Air
|
|
Working pressure
|
0.25~0.7MPa
|
|
Rated supply pressure
|
H and L type:0.5MPa/ E type: 0.35MPa
|
|
Working temperature
|
5~50℃（No freezing）
|
|
Lubrication
|
Not required
|
