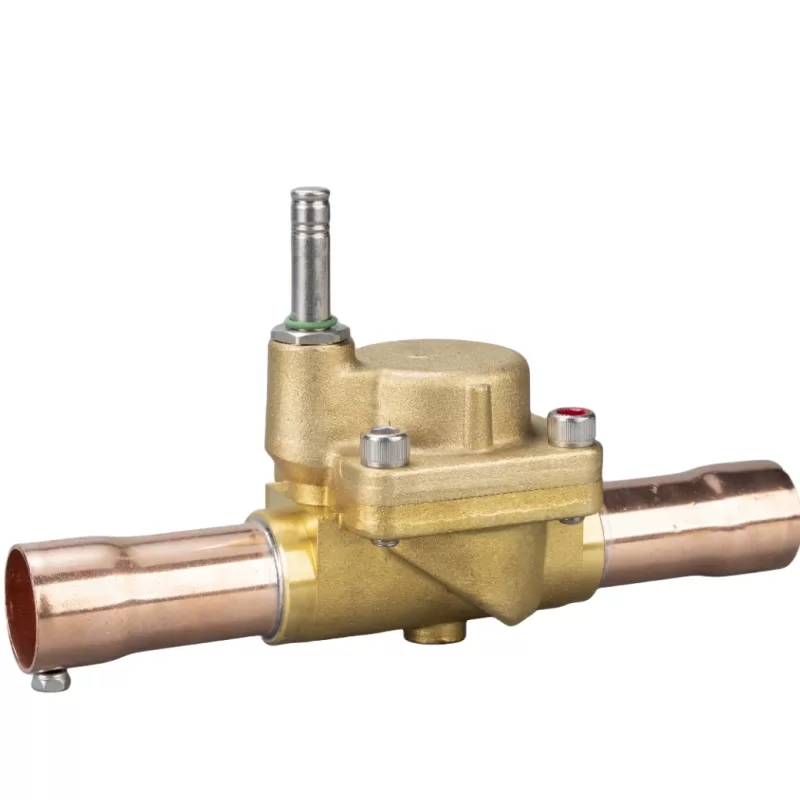

Danfoss Type EVR 25 Solenoid Valve, Solder, ODF, 1 1/8 in
Danfoss Type Alternative EVR Series Solenoid valve, 032L2200, EVR 25, Solder, ODF, 1 1/8 in, Function: NC. Max. Working Pressure [bar] 45.2 bar. Manual operation is optional. A complete range of servo-operated solenoid valves for air conditioning systems. EVR valves can be used in liquid, suction, and hot gas lines, and the valves are compatible with fluorinated refrigerants, including high-pressure refrigerants such as R410A.
Features:
2. Various voltages are optional.
3. Solder Welded connection standard, clamp type is available.
4. Widely used in freezing, cold storage, and air conditioner units.
Body material: Copper
Max. Pressure: 45 bar, 655 PSI
Fluid Media: Refrigerant
Series: EVR 25, Solder, ODF, 1 1/8" inch
| Applicable refrigerants | EVR 25, and related medium viscosity≤2°E lubricant oil |
| Applicable medium temperature | -30℃~+105℃ |
| Application Ambient Temperature of coil | -40℃~+65℃ |
| Standard Voltage of coil | AC380V, 220V, 110V, 24V/50, 60Hz, DC12V |
| Allowable Voltage fluctuation for coil | +10%~-15% |
| Connection of coil | Standard 3-wire insert connector |
EVR/EVRH solenoid valves are direct or servo-operated solenoid valves for liquid, suction, and hot gas lines. They are suitable for condensing units and power packs in all refrigeration, freezing, and air conditioning applications and are compatible with fluorinated refrigerants R22/R407C, R404A/R507, R410A, R134a and R407C.
Versions are also available for high-pressure refrigerants such as R410A and R744 (CO2) with a max working pressure of 45 bar g. The valves can be delivered as normally open or normally closed valves and with or without manual operation.EVR valves are available with flare, solder, or flange connections.EVRC is a servo-operated Solenoid Valve for use in liquid lines in refrigeration plants. EVRC allows flow in both directions and can therefore be used in liquid lines in refrigeration plants with hot gas or gas defrost. During the refrigeration period, EVRC works as a normal solenoid valve, while during the defrost it allows the condensed liquid to return to the liquid manifold.
|
Type
|
Current Type
|
Connection Size
|
Max. working pressure
|
Kv valve [m3/h]
|
Cv valve [gal/min]
|
Code No.
|
||
|
[mm]
|
[in.]
|
[bar]
|
[psi]
|
|||||
|
EVR2
|
a.c.
|
-
|
1/4
|
45.2
|
655
|
0.16
|
0.19
|
032F1201
|
|
a.c.
|
6
|
-
|
45.2
|
655
|
0.16
|
0.19
|
032F1202
|
|
|
EVR3
|
a.c./d.c.
|
-
|
1/4
|
45.2
|
655
|
0.27
|
0.32
|
032F1206
|
|
a.c./d.c.
|
-
|
3/8
|
45.2
|
655
|
0.27
|
0.32
|
032F1204
|
|
|
a.c./d.c.
|
6
|
-
|
45.2
|
655
|
0.27
|
0.32
|
032F1207
|
|
|
a.c./d.c.
|
10
|
-
|
45.2
|
655
|
0.27
|
0.32
|
032F1208
|
|
|
EVR6
|
a.c./d.c.
|
-
|
1/2
|
45.2
|
655
|
0.80
|
0.92
|
032F1209
|
|
a.c./d.c.
|
-
|
3/8
|
45.2
|
655
|
0.80
|
0.92
|
032F1212
|
|
|
a.c./d.c.
|
10
|
-
|
45.2
|
655
|
0.80
|
0.92
|
032F1213
|
|
|
a.c./d.c.
|
12
|
-
|
45.2
|
655
|
0.80
|
0.92
|
032F1236
|
|
|
EVR10
|
a.c./d.c.
|
-
|
1/2
|
35
|
500
|
1.9
|
2.2
|
032F1217
|
|
a.c./d.c.
|
12
|
-
|
35
|
500
|
1.9
|
2.2
|
032F1218
|
|
|
a.c./d.c.
|
16
|
5/8
|
35
|
500
|
1.9
|
2.2
|
032F1214
|
|
|
EVR15
|
a.c./d.c.
|
22
|
7/8
|
32
|
460
|
2.6
|
3.0
|
032F1225
|
|
a.c./d.c.
|
16
|
-
|
32
|
460
|
2.6
|
3.0
|
032F1227
|
|
|
a.c./d.c.
|
16
|
5/8
|
32
|
460
|
2.6
|
3.0
|
032F1228
|
|
|
EVR20
|
a.c.
|
22
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1240
|
|
a.c.
|
-
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1254
|
|
|
a.c.
|
-
|
1-1/8
|
32
|
460
|
5.0
|
5.8
|
032F1244
|
|
|
a.c.
|
28
|
-
|
32
|
460
|
5.0
|
5.8
|
032F1245
|
|
|
d.c.
|
22
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1264
|
|
|
d.c.
|
-
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1274
|
|
|
ECR22
|
a.c.
|
35
|
1-3/8
|
32
|
460
|
6.0
|
6.9
|
032F3267
|
|
EVR25
|
a.c./d.c.
|
-
|
1-1/8
|
32
|
460
|
10.0
|
11.6
|
032F2200
|
|
a.c./d.c.
|
-
|
1-1/8
|
32
|
460
|
10.0
|
11.6
|
032F2201
|
|
|
a.c./d.c.
|
28
|
-
|
32
|
460
|
10.0
|
11.6
|
032F2205
|
|
|
a.c./d.c.
|
28
|
-
|
32
|
460
|
10.0
|
11.6
|
032F2206
|
|
|
a.c./d.c.
|
-
|
1-3/8
|
32
|
460
|
10.0
|
11.6
|
032F2207
|
|
|
a.c./d.c.
|
-
|
1-3/8
|
32
|
460
|
10.0
|
11.6
|
032F2208
|
|
|
EVR32
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
16.0
|
18.5
|
042H1103
|
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
16.0
|
18.5
|
042H1104
|
|
|
a.c./d.c.
|
35
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1105
|
|
|
a.c./d.c.
|
35
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1106
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1107
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
16.0
|
18.5
|
042H1108
|
|
|
EVR 40
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
25.0
|
28.9
|
042H1109
|
|
a.c./d.c.
|
-
|
1-5/8
|
32
|
460
|
25.0
|
28.9
|
042H1110
|
|
|
a.c./d.c.
|
-
|
2-1/8
|
32
|
460
|
25.0
|
28.9
|
042H1111
|
|
|
a.c./d.c.
|
-
|
2-1/8
|
32
|
460
|
25.0
|
28.9
|
042H1112
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
25.0
|
28.9
|
042H1113
|
|
|
a.c./d.c.
|
42
|
-
|
32
|
460
|
25.0
|
28.9
|
042H1114
|
|
