MindMan Type MVSC-220-4E1 Solenoid Directional Valve
Mindman Alternative Type MVSC Series MVSC-220-4E1 solenoid directional valve, 5 ports 5-way 2 positions, sturdy body design, manual override, widely used in the applications of compressed air system driven machineries. Various sizes and voltages for options. Pilot-oriented mode, single coil, and double coils, mono and dual solenoid coil heads.
Features:
1. Pilot-operated diaphragm structure, aluminum valve body.
2. Durable and lightweight.
3. DIN connector with LED indicator.
4. Insulation Class: F class
2. Durable and lightweight.
3. DIN connector with LED indicator.
4. Insulation Class: F class
5. Manual override
6. Fast response working.
Body material: Aluminum Alloy
Pressure: 0-10 bar, 150 PSI
Fluid Media: Air

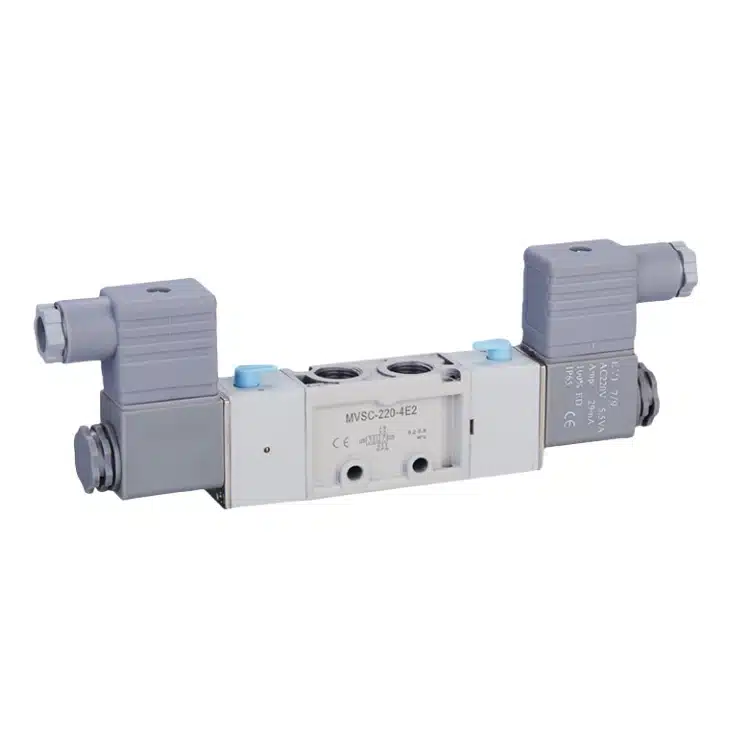

Series: MVSC-220-4E1 (single coil), MVSC-220-4E2 (double coils)
| Valve Ports | 5 port 2 position |
|---|---|
| Voltages | 24VDC |
| Port Size | 1/4″ |
| Power Consumption | AC=4.8/4.4VA, 6/4.9VA, DC=2W |
| Insulation Class | F class |
| Weight | 184 grams |
| Model | MVSC-220-4E1, MVSC-220-4E2 |
| Working Temperature | -5 to 50 C |
| Connection | DIN connector with LED indicator |
