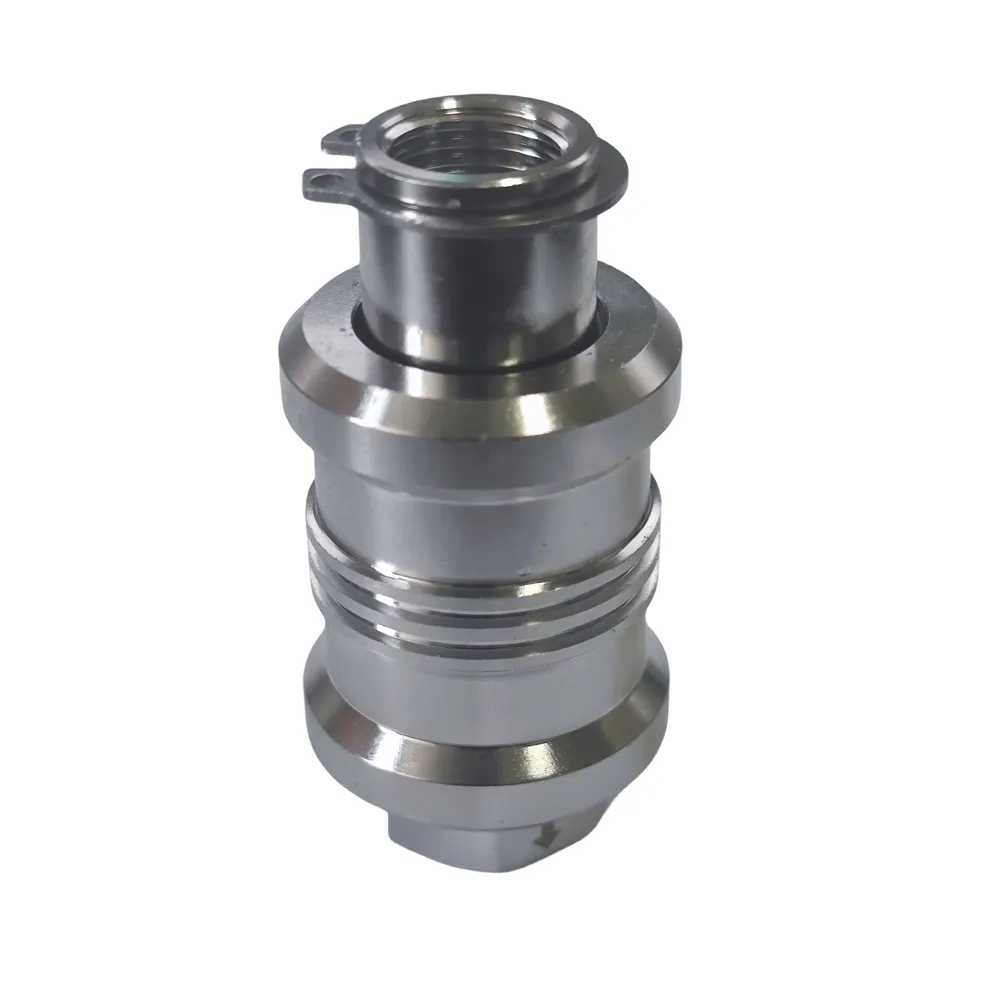

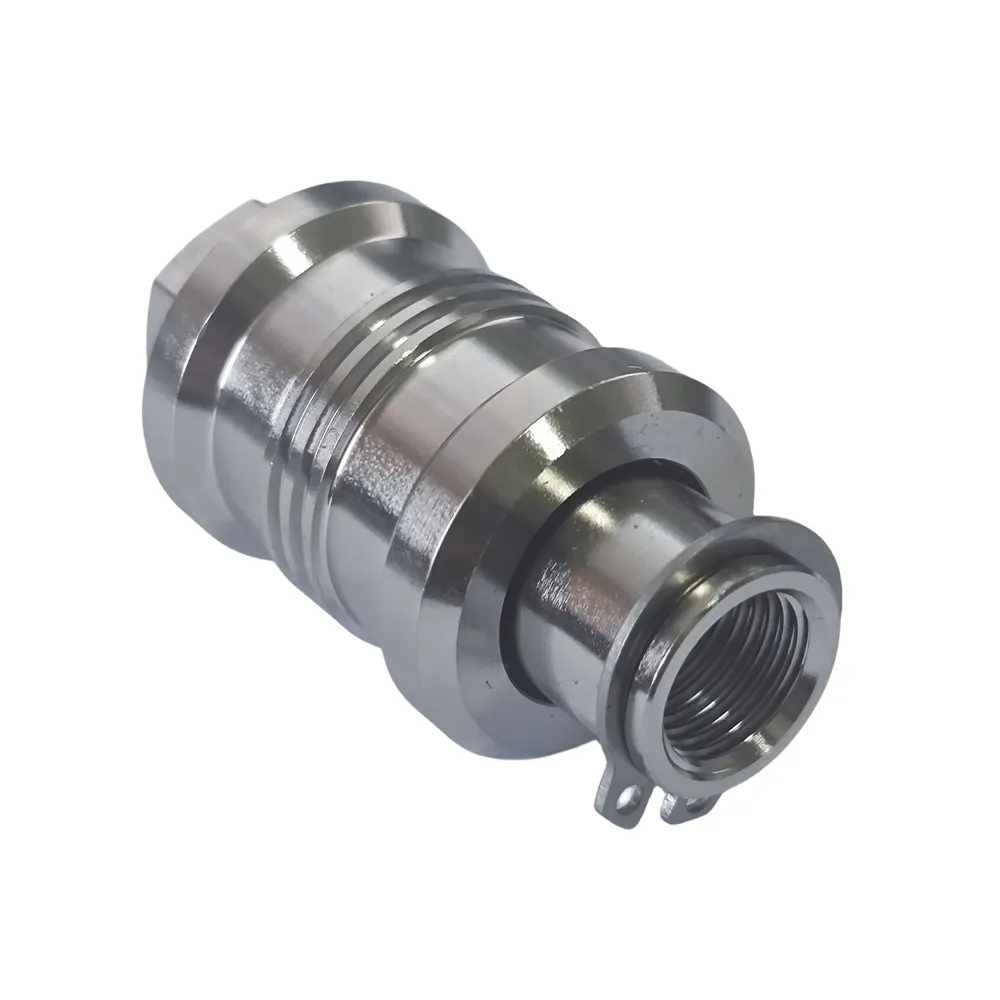

SS316L Stainless Steel Pneumatic Slide Valve
HSV Series stainless steel slide valve upgraded one, pneumatic manual slide valve, anti-corrosion, better performance, high-quality stainless steel SS316L body material, long working life. Reliable connection, suitable for pneumatic flow control applications. Female to Female thread, male to female thread, premium model than aluminum ones.
Features:
1. Easy of Use
2. Fast Connection
3. Anti Corrosion Stainless Steel
4. Long working life
2. Fast Connection
3. Anti Corrosion Stainless Steel
4. Long working life
Body material: SS316L
Pressure: 0 to 15 bar
Fluid Media: Compressed air
|
Product name
|
Pneumatic Manual Slide Valve
|
|||
|
Power
|
Manually
|
|||
|
Structure
|
Sliding Control
|
|||
|
Proof pressure
|
1.5 Mpa
|
|||
|
Sample
|
Available
|
|||
|
Media
|
water, oil, air
|
|||
|
Thread size
|
BSP 1/8" 1/4" 3/8" 1/2"
|
|||
|
Material
|
SS304, SS316, SS316L Stainless Steel
|
|||
|
Operating Pressure
|
0~10kgf/cm2 (0~1.0MPa)
|
|||
|
Applicable Tubing
|
Soft Nylon or Polyurethane PU tube
|
|||
