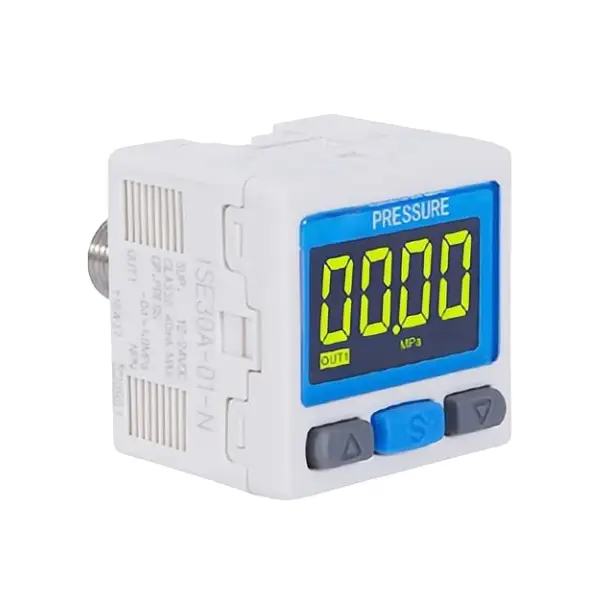

ISE30A Precision Digital Pressure Switch
ZSE30A(F), ZSE40A(F), ISE30A series High Precision Digital Display Pressure Gauges, Compact Design, Space-Saving, Horizontal and Vertical Mounting, 2-color display, for compressed air, compound pressure and vacuum conditions. A variety of options and settings, multiple functions, and easy operation.

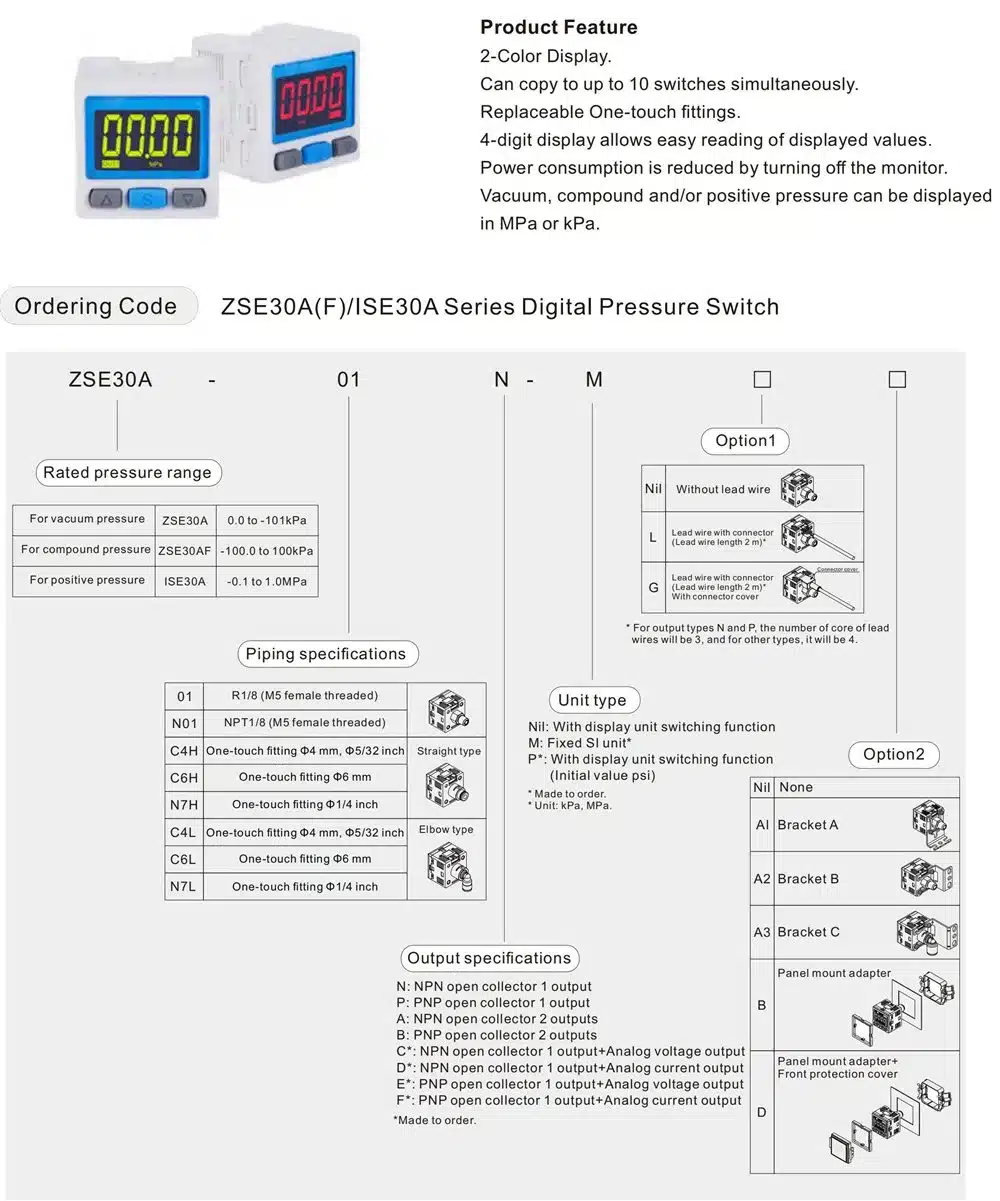

Features:
1. 2-color display
2. Positive, Vacuum, Compound Pressure
3. Various options
4. Easy operation.
2. Positive, Vacuum, Compound Pressure
3. Various options
4. Easy operation.
5. Multiple pressure index, MPa, kPa.
Body material: Reinforced Plastic
Pressure: 0-10 bar, 150 PSI
Fluid Media: Air
Series:Â ZSE30A(F), ZSE40A(F), ISE30A

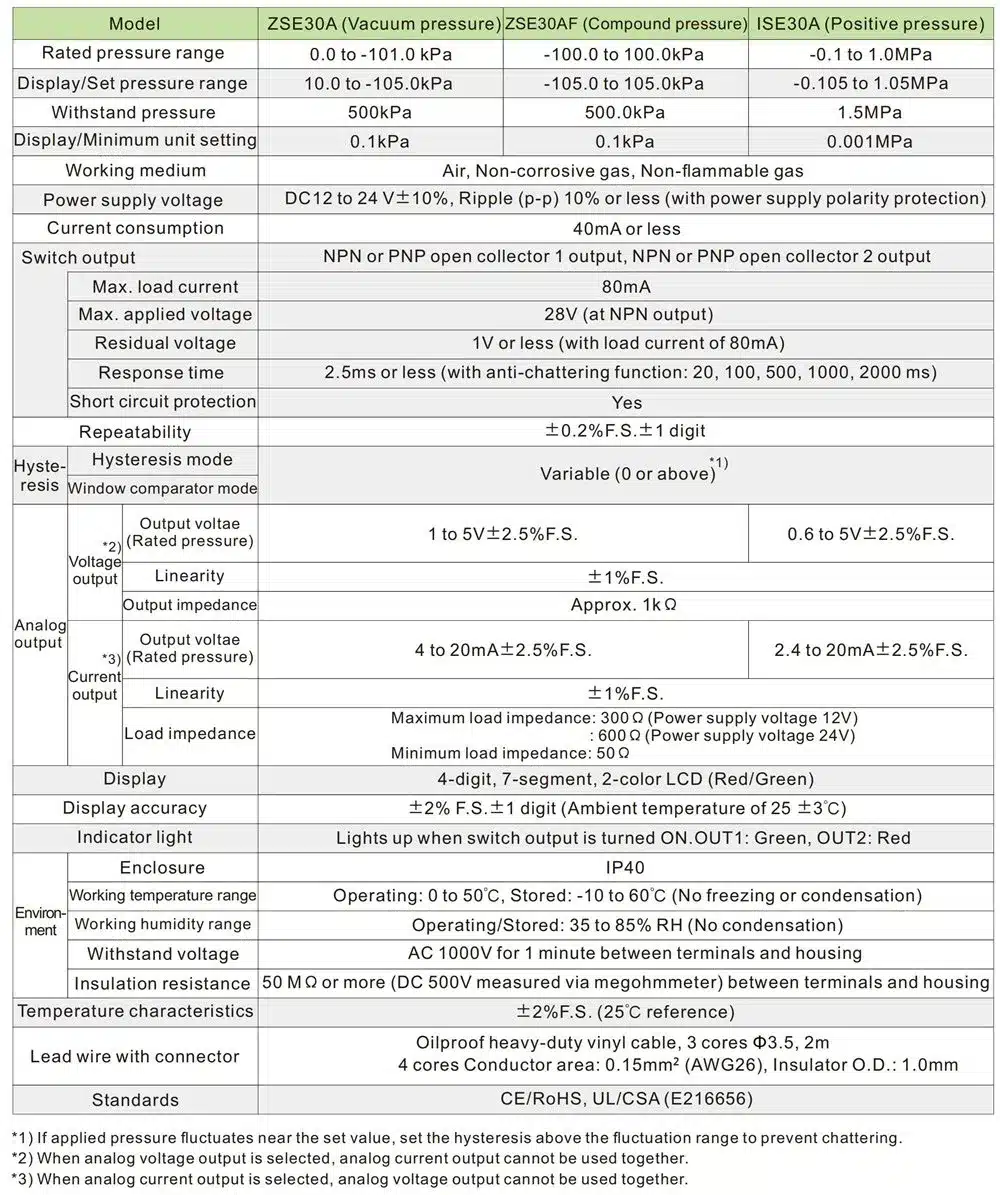

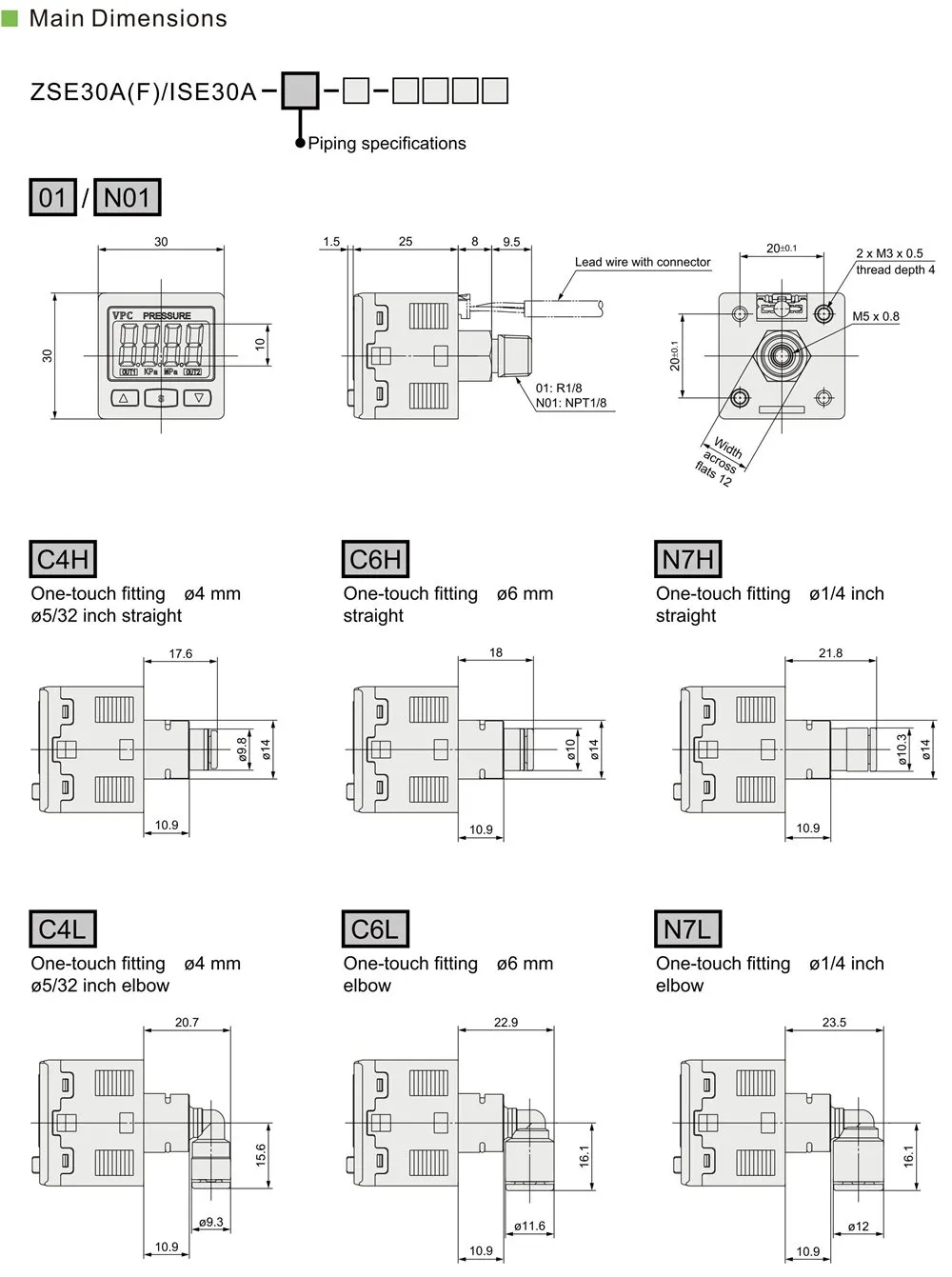

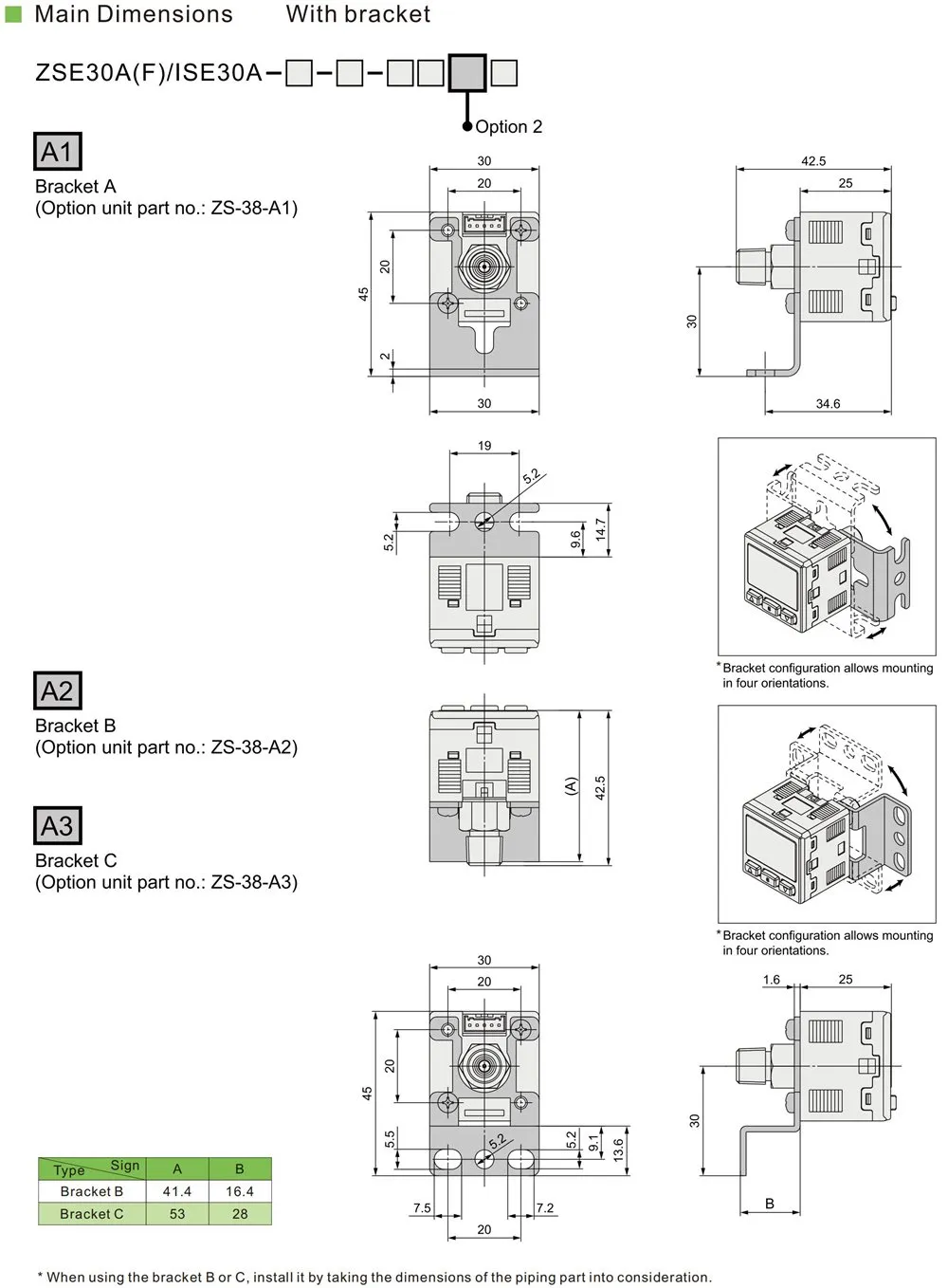

| Model | ZSE30A
(Vacuum pressure) |
ZSE30AF
(Compound pressure) |
ISE30A
(Positive pressure) |
||
| Rated pressure range | 0.0 to -101.0 kPa | -100.0 to 100.0kPa | -0.1 to 1.0MPa | ||
| Display/Set pressure range | 10.0 to -105.0kPa | -105.0 to 105.0kPa | -0.105 to 1.05MPa | ||
| Withstand pressure | 500kPa | 500kPa | 1.5MPa | ||
| Display/Minimum unit setting | 0.1kPa | 0.1kPa | 0.001MPa | ||
| Working medium | Filtered air, Non-corrosive gas / Non-flammable gas | ||||
| Power supply voltage | DC12 to 24 V±10%, Ripple (p-p) 10% or less
(with power supply polarity protection) |

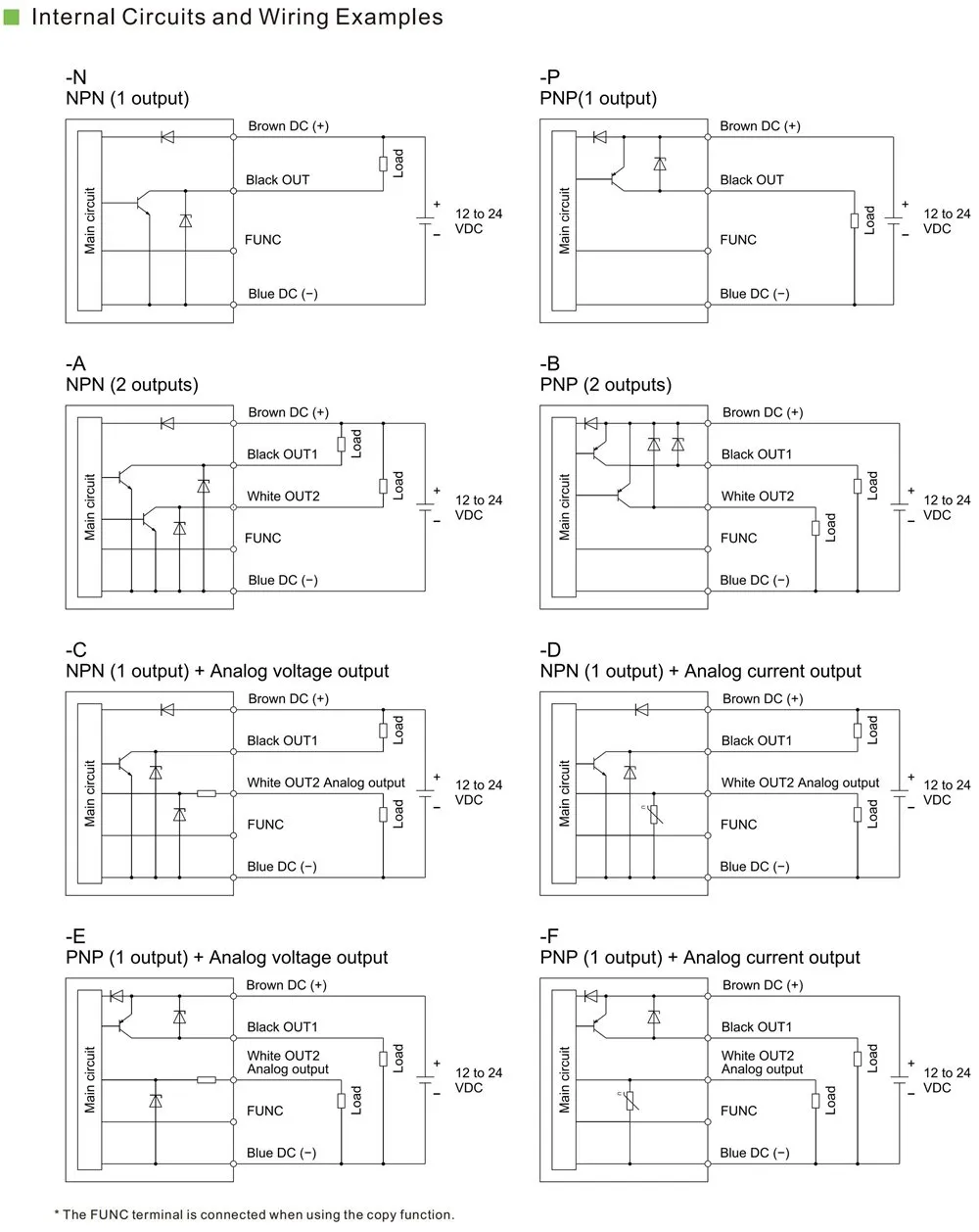

||||
| Current consumption | 40mA or less | ||||
| Switch output | Standard | Â Â NPN or PNP open collector 1 output, NPN or PNP open collector 2 output | |||
| Max. load current | 80mA | ||||
| Max. applied voltage | 28V (at NPN output) | ||||
| Residual voltage | 1V or less (with loading current of 80mA) | ||||
| Response time | 2.5ms or less (with anti-chattering function: 20, 100, 500, 1000, 2000 ms) | ||||
| Short circuit protection | Yes | ||||
| Repeatability | ±0.2% F.S. ±1 digit | ||||
| Hysteresis | Hysteresis mode | Variable (0 or above)Â *1) | |||
| Window comparator mode | |||||
| Analog output | Voltage output*2） | Output voltage
(Rated pressure) |
1 to 5V ±2.5% F.S. | 0.6 to 5V ±2.5% F.S. | |
| Linearity | ±1%F.S. | ||||
| Output impedance | Approx. 1 kΩ | ||||
| Current
output*3） |
Output voltage
(Rated pressure) |
4 to 20mA ±2.5% F.S. | 2.4 to 20mA ±2.5% F.S. | ||
| Linearity | ±1% F.S. | ||||
| Load impedance | Maximum load impedance: 300Ω(Power supply voltage 12V)
: 600Ω(Power supply voltage 24V) Minimum load impedance: 50Ω |

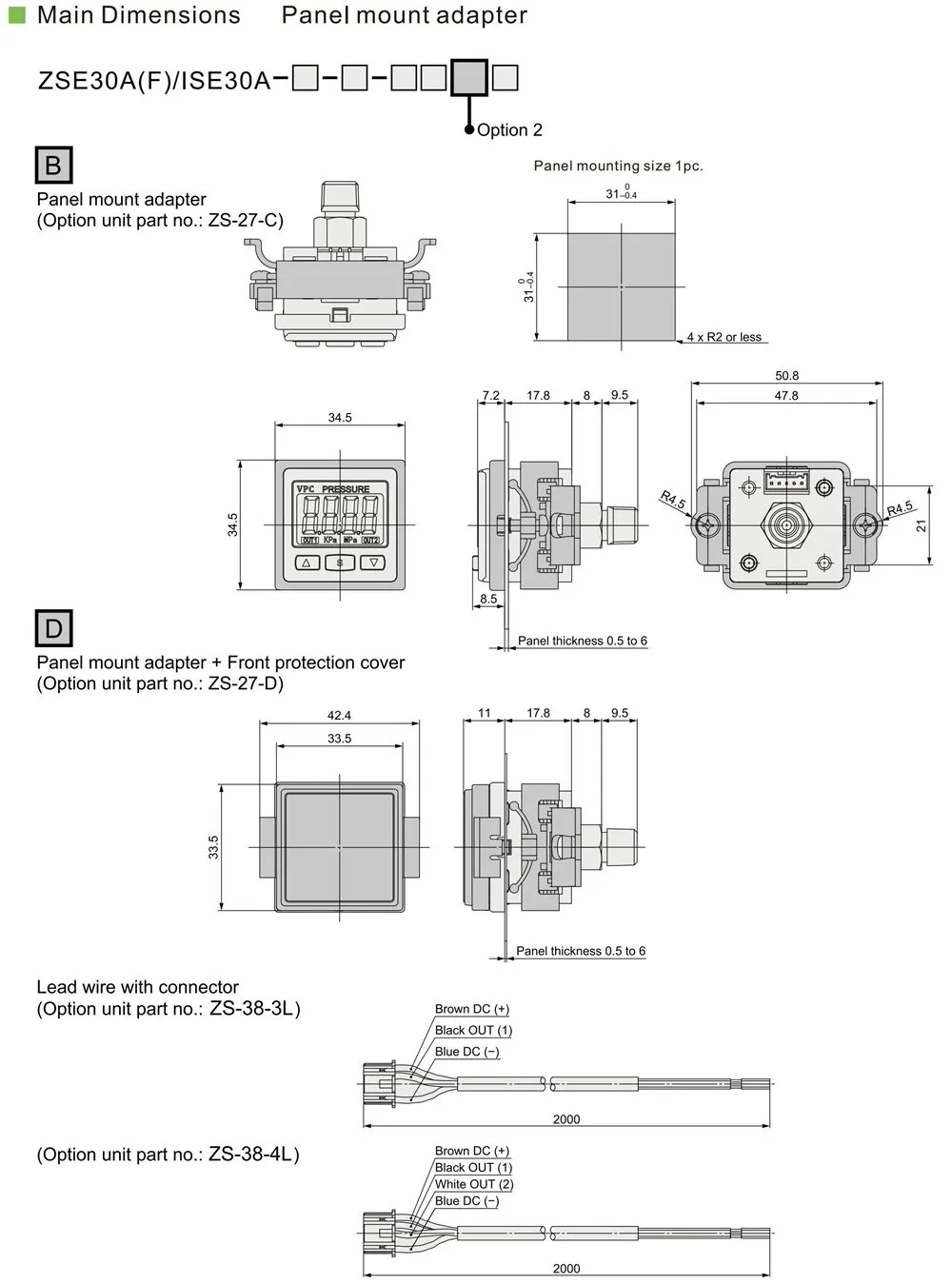

||||
| Display | 4-digit, 7-segment, 2-color LCD (Red/Green) | ||||
| Display accuracy | ±2% F.S.±1 digit (Ambient temperature of 25 ±3℃) | ||||
| Indicator light | Lights up when switch output is turned ON.OUT1: Green, OUT2: Red | ||||
| Environment | Enclosure | IP40 | |||
| Working  temperature range | Operation: 0 ~ 50°C, Storage:-10 ~ 60°C (No condensation or freezing) | ||||
| Ambient humidity range | Operation/Storage: 35 ~ 85% RH (No condensation) | ||||
| Withstand voltage | ACÂ 1000VÂ for 1 minute between terminals and housing | ||||
| Insulation resistance | 50 MΩor more (500 VDC measured via megohmmeter) between terminals and housing | ||||
| Temperature characteristic | ±2% F.S. (25℃ reference) | ||||
| Lead wire with connector | Oilproof heavy-duty vinyl cable, 3 cores Φ3.5, 2m
4 cores Conductor area: 0.15mm² (AWG26), Insulator O.D.: 1.0mm |
||||
| Standards | CE/RoHS, UL/CSA (E216656) | ||||
