4M210-08 NAMUR Solenoid Directional Valve For Pneumatic Actuator
5/2 5-way 2-position Namur Solenoid Directional Valve complies with the NAMUR standard, is designed to control the compressed air directions, and is widely mounted on the pneumatic actuator. By controlling the open/close status of the solenoid valve, the pneumatic actuator can output the driving force to operate the open/close of the pneumatic actuated valves, including the pneumatic actuated ball valve, butterfly valve, etc.
Features:
1. Internal guide structure, aluminum alloy body.
2. DIN Connector and Wire Lead connections.
3. Fast Response
4. 5 Ports 2 Positions
2. DIN Connector and Wire Lead connections.
3. Fast Response
4. 5 Ports 2 Positions
5. Wide voltage options.
Body material: Aluminum
Pressure: 0-10 bar, 150 PSI
Fluid Media: Compressed Air

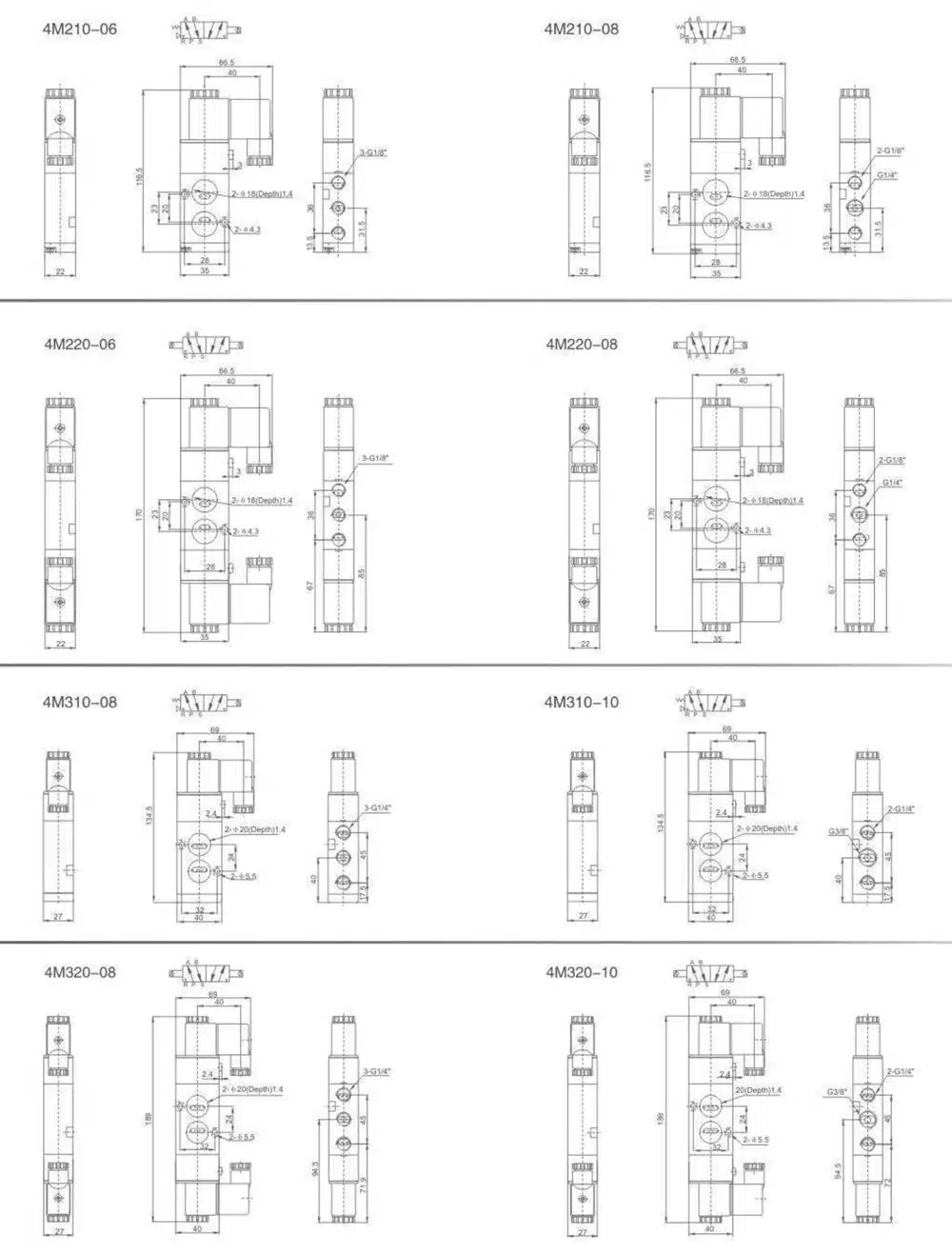

Model: 4M210-08 1/4″, 4M210-06 1/8″, 4M310-10 3/8″, 4M410-15 1/2″

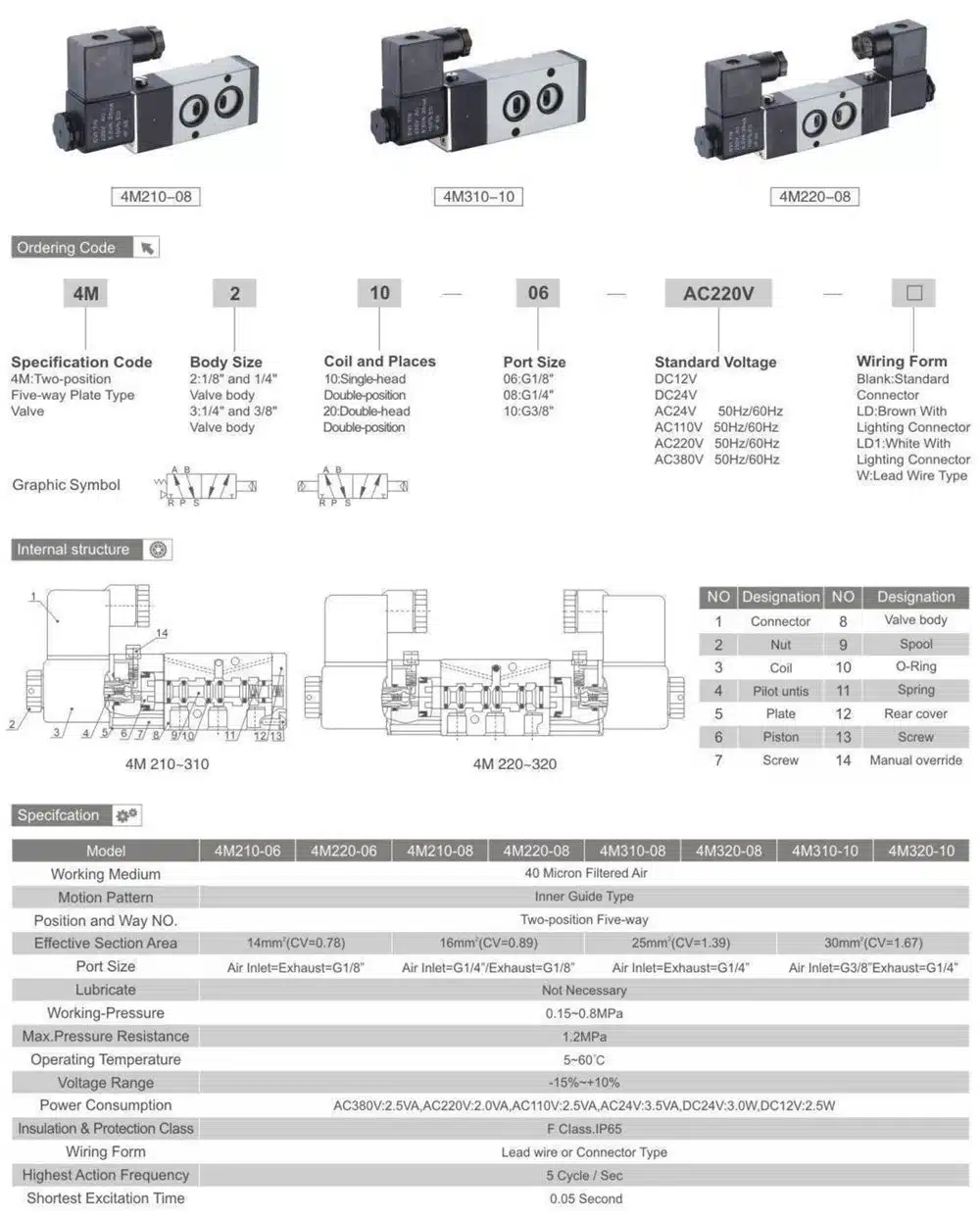

| Model | 4M110-M5 | 4M110-06 | 4M210-06 | 4M210-08 | 4M310-08 | 4M310-10 | 4M410-10 | 4M410-15 | |
| 4M120-M5 | 4M120-06 | 4M220-06 | 4M220-08 | 4M320-08 | 4M320-10 | 4M420-10 | 4M420-15 | ||
| Working medium | Compressed air | ||||||||
| Acting type | Internal guide | ||||||||
| Port Size | Import=M5 | Import=1/8 | Import=1/8 | Import=1/4 | Import=1/4 | Import=1/4 | Import=3/8 | Import=1/2 | |
| Export=M5 | Export=1/8 | Export=1/8 | Export=1/8 | Export=1/4 | Export=3/8 | Export=3/8 | Export=1/2 | ||
| Sectional area | 5.5mm²
(CV=0.31) |
12mm²
(CV=0.67) |
14mm²
(CV=0.78) |
16mm²
(CV=0.89) |
25mm²
(CV=1.4) |
30mm²
(CV=1.68) |
30mm²
(CV=1.68) |
50mm²
(CV=2.79) |
|
| Working pressure | 0.15 to 1.0 Mpa | ||||||||
| Max. pressure | 1.2Mpa | ||||||||
| Working temperature | -5 to 60℃ | ||||||||
| Voltage range | -15% to 10% | ||||||||
| Heat resistant grade | B | ||||||||
| Protective class | IP65(DIN40050) | ||||||||
| Coil Type | Din type, Wire Leads | ||||||||
| Max.Acting Frequency | 4 Cycles/s | ||||||||
