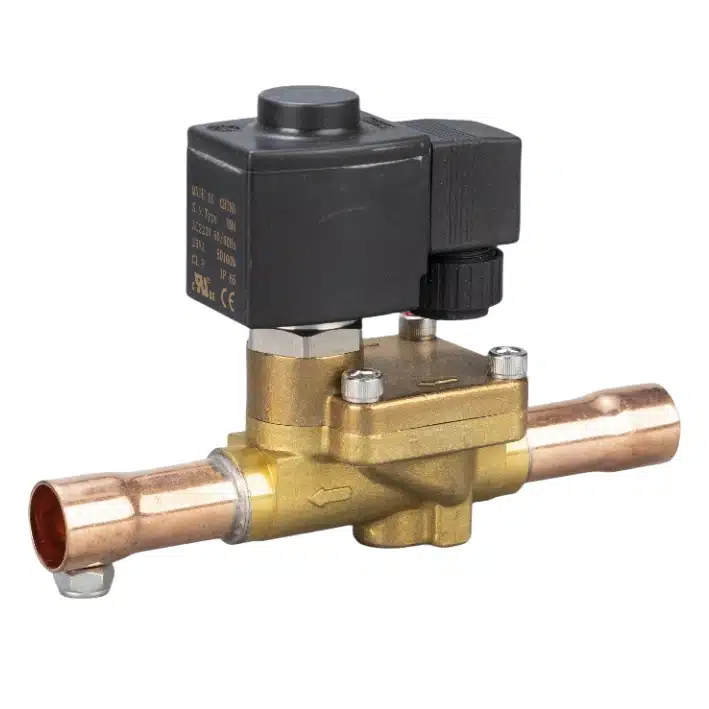

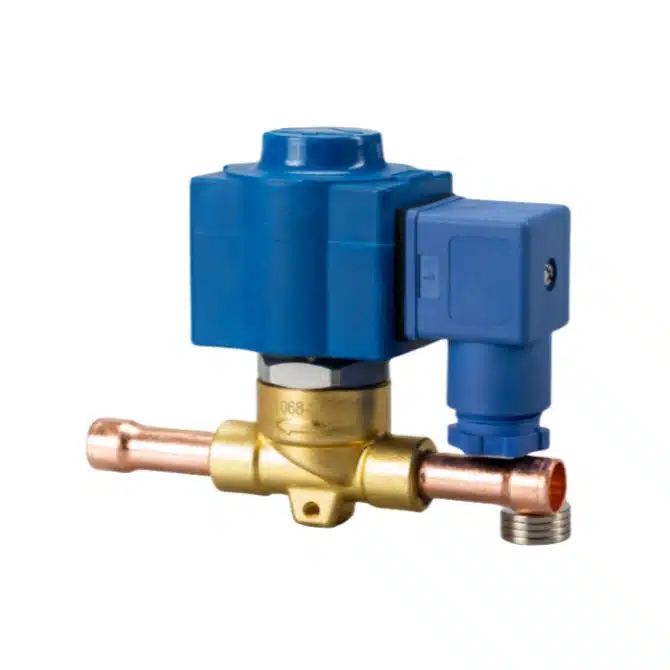

Danfoss Type EVR 3 Solenoid Valve, Solder, ODF, 3/8 in, Function: NC
Danfoss Type EVR 3 Solenoid Valve, Solder, ODF, 3/8 in, Function: NC
Danfoss Type Alternative Substitute EVR 3 Solenoid valve, 032F1204, EVR 3 Series, Solder, ODF, 3/8 in, Function: NC. Max. Working Pressure [bar] 45.2 bar 655 PSI. Manual operation is optional. A complete range of servo-operated solenoid valves for air conditioning systems. EVR3 valves can be used in liquid, suction, and hot gas lines, and the valves are compatible with fluorinated refrigerants, including high-pressure refrigerants such as R410A.
Features:
1. Normally Closed
2. Orifice size [mm] 3.3 mm
3. Solder Welded connection standard
4. Widely used in freezing, cold storage, and air conditioner units.
2. Orifice size [mm] 3.3 mm
3. Solder Welded connection standard
4. Widely used in freezing, cold storage, and air conditioner units.
5. Suitable for all fluorinated refrigerants
6. Wide voltage option.
Body material: Copper
Pressure: 0-45 bar, 655 PSI
Fluid Media: Refrigerant
Series: EVR 3, EVR3, Danfoss EVR 3
Applicable refrigerants | EVR 25, and related medium viscosity≤2°E lubricant oil |
Applicable medium temperature | -30℃~+105℃ |
Application Ambient Temperature of coil | -40℃~+65℃ |
Standard Voltage of coil | AC380V, 220V, 110V, 24V/50, 60Hz, DC12V |
Allowable Voltage fluctuation for coil | +10%~-15% |
Connection of coil | Standard 3-wire insert connector |
Type
|
Current Type
|
Connection Size
|
Max. working pressure
|
Kv valve [m3/h]
|
Cv valve [gal/min]
|
Code No.
|
||
[mm]
|
[in.]
|
[bar]
|
[psi]
|
|||||
EVR2
|
a.c.
|
–
|
1/4
|
45.2
|
655
|
0.16
|
0.19
|
032F1201
|
a.c.
|
6
|
–
|
45.2
|
655
|
0.16
|
0.19
|
032F1202
|
|
EVR3
|
a.c./d.c.
|
–
|
1/4
|
45.2
|
655
|
0.27
|
0.32
|
032F1206
|
a.c./d.c.
|
–
|
3/8
|
45.2
|
655
|
0.27
|
0.32
|
032F1204
|
|
a.c./d.c.
|
6
|
–
|
45.2
|
655
|
0.27
|
0.32
|
032F1207
|
|
a.c./d.c.
|
10
|
–
|
45.2
|
655
|
0.27
|
0.32
|
032F1208
|
|
EVR6
|
a.c./d.c.
|
–
|
1/2
|
45.2
|
655
|
0.80
|
0.92
|
032F1209
|
a.c./d.c.
|
–
|
3/8
|
45.2
|
655
|
0.80
|
0.92
|
032F1212
|
|
a.c./d.c.
|
10
|
–
|
45.2
|
655
|
0.80
|
0.92
|
032F1213
|
|
a.c./d.c.
|
12
|
–
|
45.2
|
655
|
0.80
|
0.92
|
032F1236
|
|
EVR10
|
a.c./d.c.
|
–
|
1/2
|
35
|
500
|
1.9
|
2.2
|
032F1217
|
a.c./d.c.
|
12
|
–
|
35
|
500
|
1.9
|
2.2
|
032F1218
|
|
a.c./d.c.
|
16
|
5/8
|
35
|
500
|
1.9
|
2.2
|
032F1214
|
|
EVR15
|
a.c./d.c.
|
22
|
7/8
|
32
|
460
|
2.6
|
3.0
|
032F1225
|
a.c./d.c.
|
16
|
–
|
32
|
460
|
2.6
|
3.0
|
032F1227
|
|
a.c./d.c.
|
16
|
5/8
|
32
|
460
|
2.6
|
3.0
|
032F1228
|
|
EVR20
|
a.c.
|
22
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1240
|
a.c.
|
–
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1254
|
|
a.c.
|
–
|
1-1/8
|
32
|
460
|
5.0
|
5.8
|
032F1244
|
|
a.c.
|
28
|
–
|
32
|
460
|
5.0
|
5.8
|
032F1245
|
|
d.c.
|
22
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1264
|
|
d.c.
|
–
|
7/8
|
32
|
460
|
5.0
|
5.8
|
032F1274
|
|
ECR22
|
a.c.
|
35
|
1-3/8
|
32
|
460
|
6.0
|
6.9
|
032F3267
|
EVR25
|
a.c./d.c.
|
–
|
1-1/8
|
32
|
460
|
10.0
|
11.6
|
032F2200
|
a.c./d.c.
|
–
|
1-1/8
|
32
|
460
|
10.0
|
11.6
|
032F2201
|
|
a.c./d.c.
|
28
|
–
|
32
|
460
|
10.0
|
11.6
|
032F2205
|
|
a.c./d.c.
|
28
|
–
|
32
|
460
|
10.0
|
11.6
|
032F2206
|
|
a.c./d.c.
|
–
|
1-3/8
|
32
|
460
|
10.0
|
11.6
|
032F2207
|
|
a.c./d.c.
|
–
|
1-3/8
|
32
|
460
|
10.0
|
11.6
|
032F2208
|
|
EVR32
|
a.c./d.c.
|
–
|
1-5/8
|
32
|
460
|
16.0
|
18.5
|
042H1103
|
a.c./d.c.
|
–
|
1-5/8
|
32
|
460
|
16.0
|
18.5
|
042H1104
|
|
a.c./d.c.
|
35
|
–
|
32
|
460
|
16.0
|
18.5
|
042H1105
|
|
a.c./d.c.
|
35
|
–
|
32
|
460
|
16.0
|
18.5
|
042H1106
|
|
a.c./d.c.
|
42
|
–
|
32
|
460
|
16.0
|
18.5
|
042H1107
|
|
a.c./d.c.
|
42
|
–
|
32
|
460
|
16.0
|
18.5
|
042H1108
|
|
EVR 40
|
a.c./d.c.
|
–
|
1-5/8
|
32
|
460
|
25.0
|
28.9
|
042H1109
|
a.c./d.c.
|
–
|
1-5/8
|
32
|
460
|
25.0
|
28.9
|
042H1110
|
|
a.c./d.c.
|
–
|
2-1/8
|
32
|
460
|
25.0
|
28.9
|
042H1111
|
|
a.c./d.c.
|
–
|
2-1/8
|
32
|
460
|
25.0
|
28.9
|
042H1112
|
|
a.c./d.c.
|
42
|
–
|
32
|
460
|
25.0
|
28.9
|
042H1113
|
|
a.c./d.c.
|
42
|
–
|
32
|
460
|
25.0
|
28.9
|
042H1114
|
