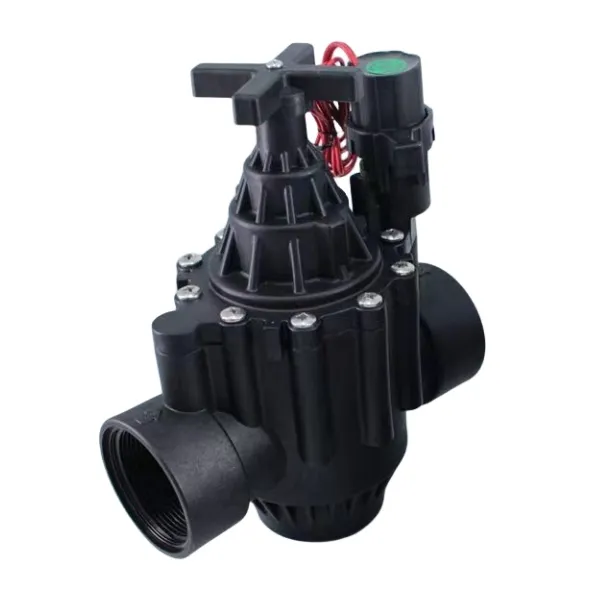

200P irrigation solenoid valve

RainBird Alternative IVM PGA Irrigation Solenoid Valve

Irrigation Solenoid Valves are installed in the water flow control pipeline, widely used in gardens, fields, and landscape irrigation systems, to open and close the water by electric control. By the signal feedback, the solenoid valve can be controlled by PLC, a remote control APP. Reinforced nylon plastic valve body, durable, stainless steel screw parts, IP68 degree. Alternative solenoid valves of Rainbird PGA IVM series, competitive.

Features:

1. Pilot-operated diaphragm structure, nylon plastic valve body.
2. Double filtration to protect the solenoid armature.
3. IP68 Degree, waterproof solenoid coil.
4. Slowly close to prevent the water hammer.
5. Manually Open/Close the valve by turning the coil.
6. Water flow rate adjustable.

Body material: Reinforced Nylon Plastic
Pressure: 0-10 bar, 150 PSI
Fluid Media: Water
Series: 2″ IVM200PGA, 1-1/2″ IVM150PGA, 1″ IVM100PGA

Characteristic 1. Pilot-operated diaphragm structure, reinforced nylon.

Both are normally closed and the latching valve on optional.
 2. Double filtration anti-blocking solenoid valve
 3. Full closed coil waterproof
 4. Close slowly, anti-water hammer
Medium water
Temperature NBR seal: -10°C to 80 °C
Pressure 0.1-1.0Mpa
Port size 3/4′-3′
Port thread G
Orifice 20,25,40,50,63, 80mm
Voltage DC-12V,24V
AC-24V,120V,240V/60HZ,110V,220V/50HZ
Tolerance ±10%
Coils SE02B,8W,IP68,100% ED
L32B,DC6-20V, pulse length 20-500 ms
 Application  Widely used in lawn irrigation systems, like large areas of lawn, gym, agriculture, industrial dusting, and water treatment.
Material Body-reinforced nylon
Seal- NBR
Amature tube-stainless steel 304
Plunger-stainless steel430F
Stop-stainless steel 430F
Springs-SS304
Shading rings- stainless steel 304

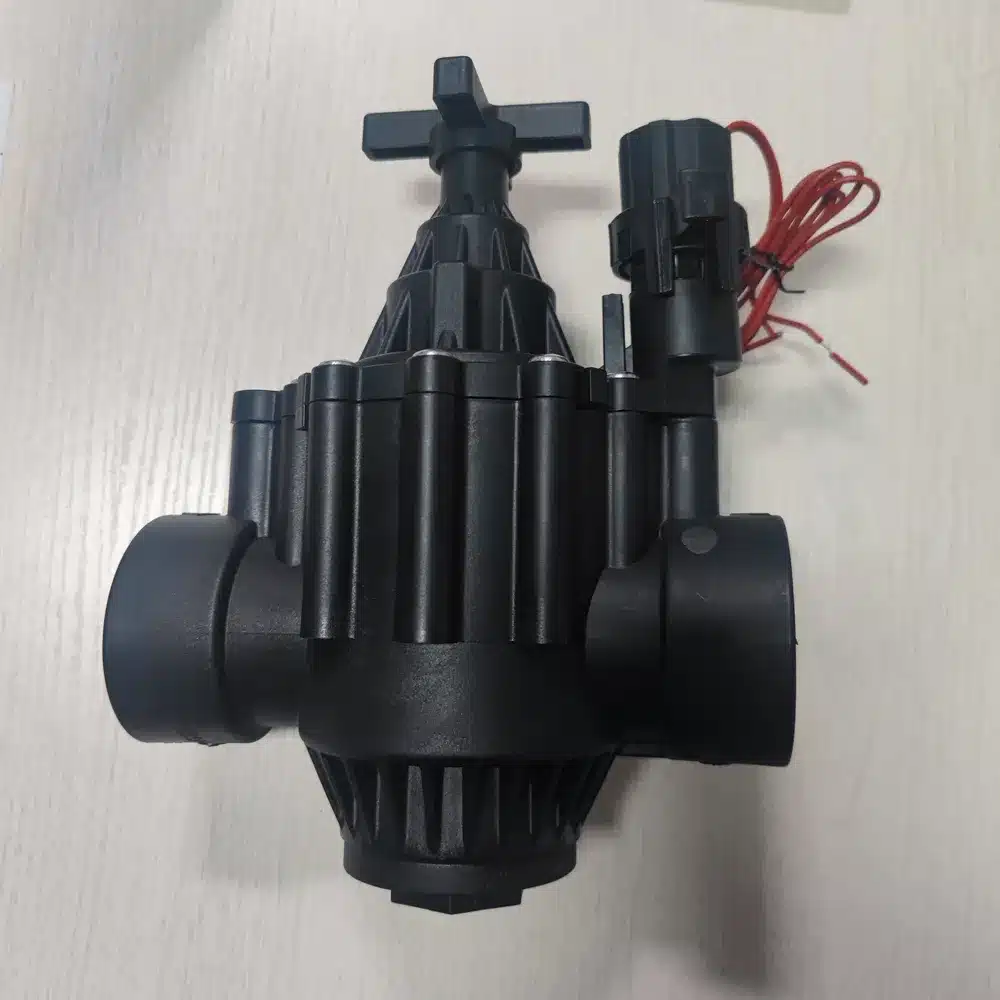

T type plastic irrigation solenoid valve

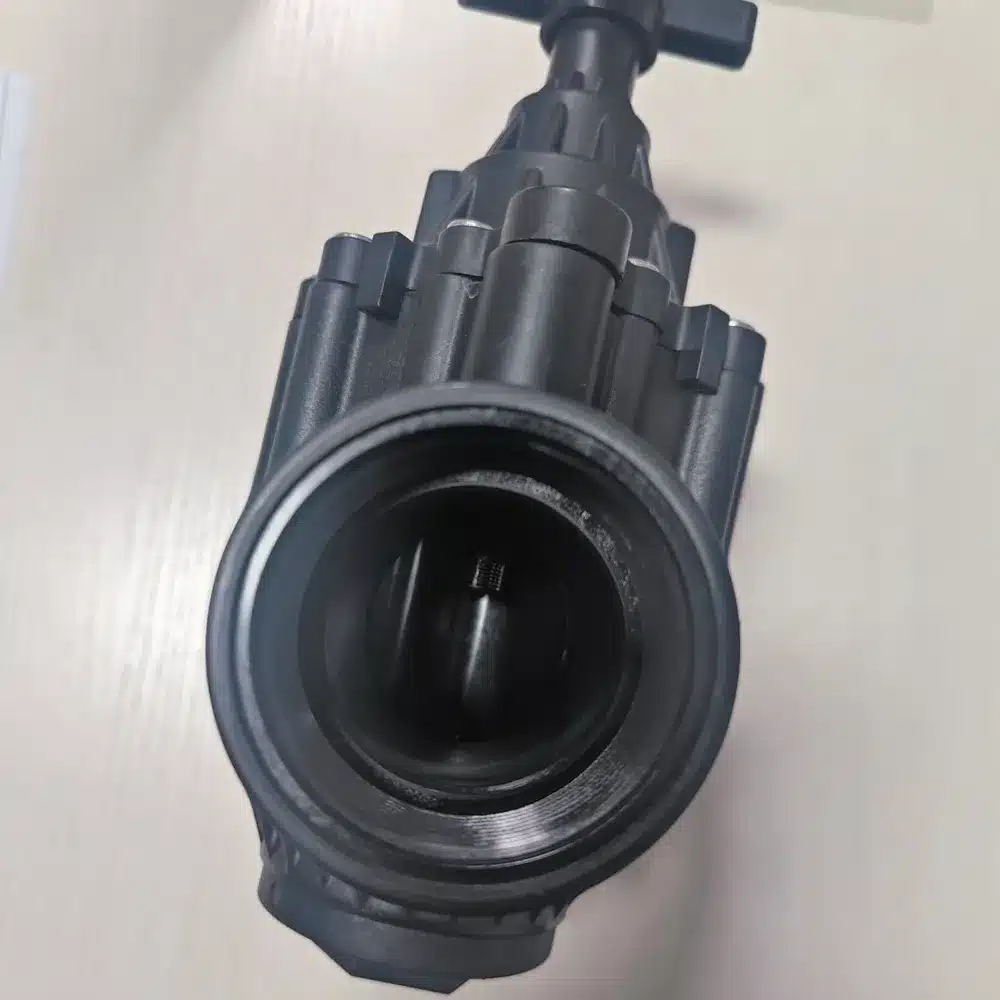

big flow irrigation solenoid valve

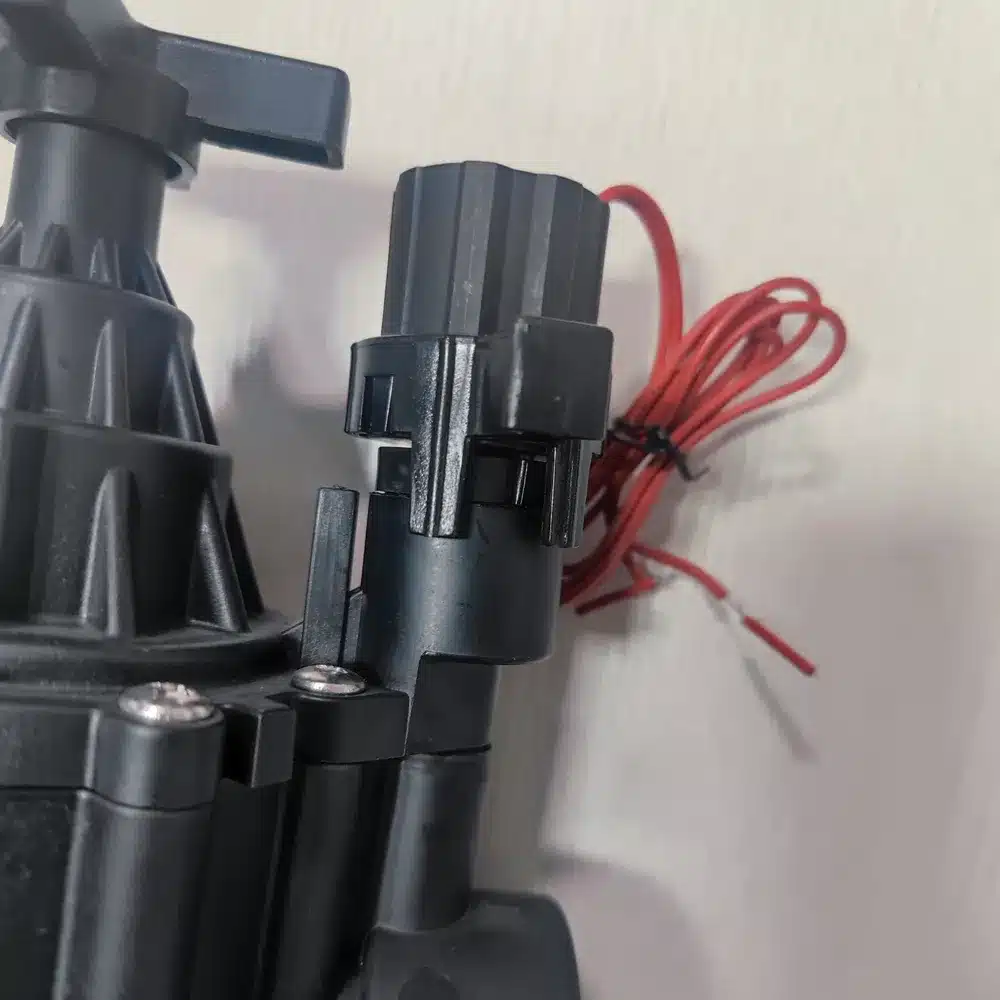

nylon field irrigation solenoid valve

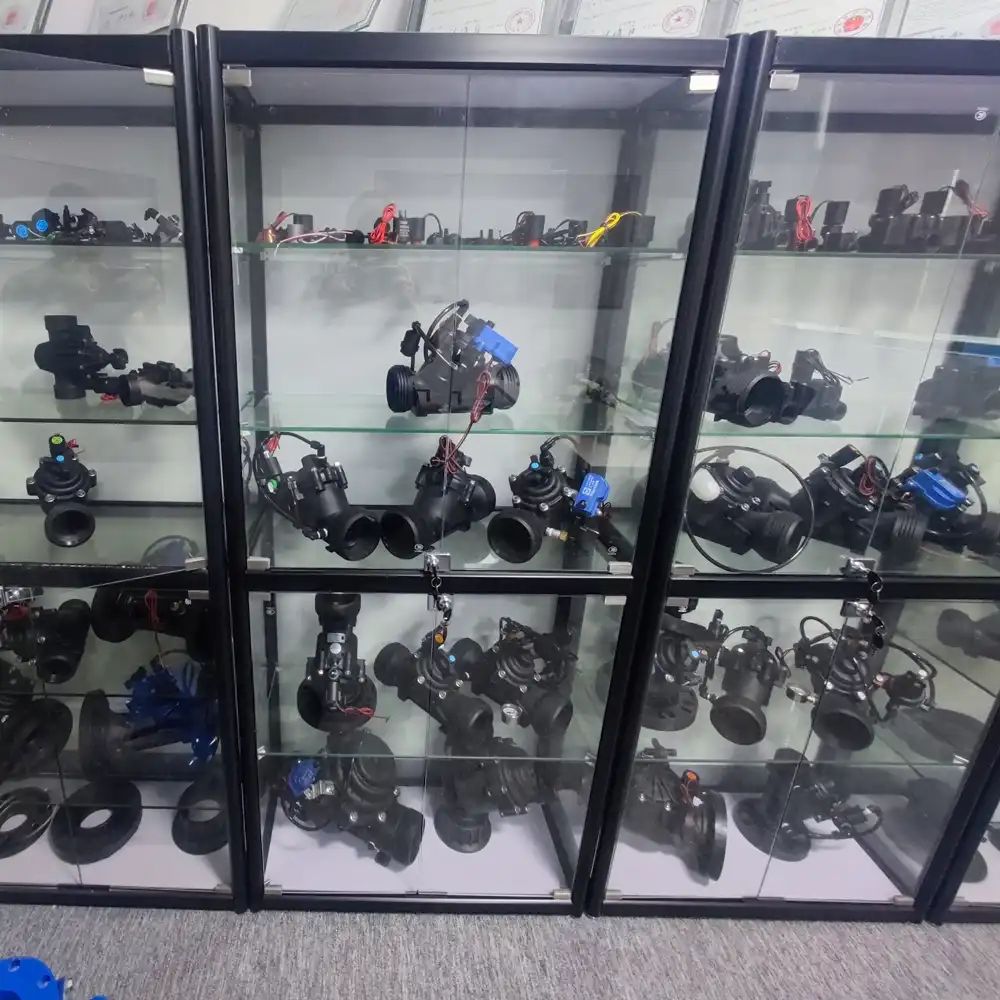

Irrigation Solenoid Valves Sample Room
