SL Series SS316 Stainless Steel High Pressure Air Oil Lubricator
The SL Series air regulator, SUS316 regulator, features robust construction with high-quality stainless steel SS316 materials to ensure long-lasting performance. The filter regulator is capable of handling high pressures, making it ideal for applications where compressed air is used at high pressure. With its compact design and easy-to-use features, the SL Series is perfect for a wide range of industrial applications, including automotive, industrial, manufacturing, and more.
Oil mist can improve the lubrication of seals and improve sealing performance. With its superior performance, durability, and ease of use, the SL Series High-Pressure Air Oil lubricator is the perfect choice for professionals who demand the best.
Through effective lubrication, the service life of pneumatic equipment can be extended, clean air improves the efficiency of equipment operation.
Body material: SS316 SUS316
Pressure: 0.15 MPa - 3.5 MPa
Max Pressure: 4.0 MPa
Filter: 5um, 10um, 20um, 40um, customized.
Pipe size:1/4”-1”
Fluid Media: Compressed air

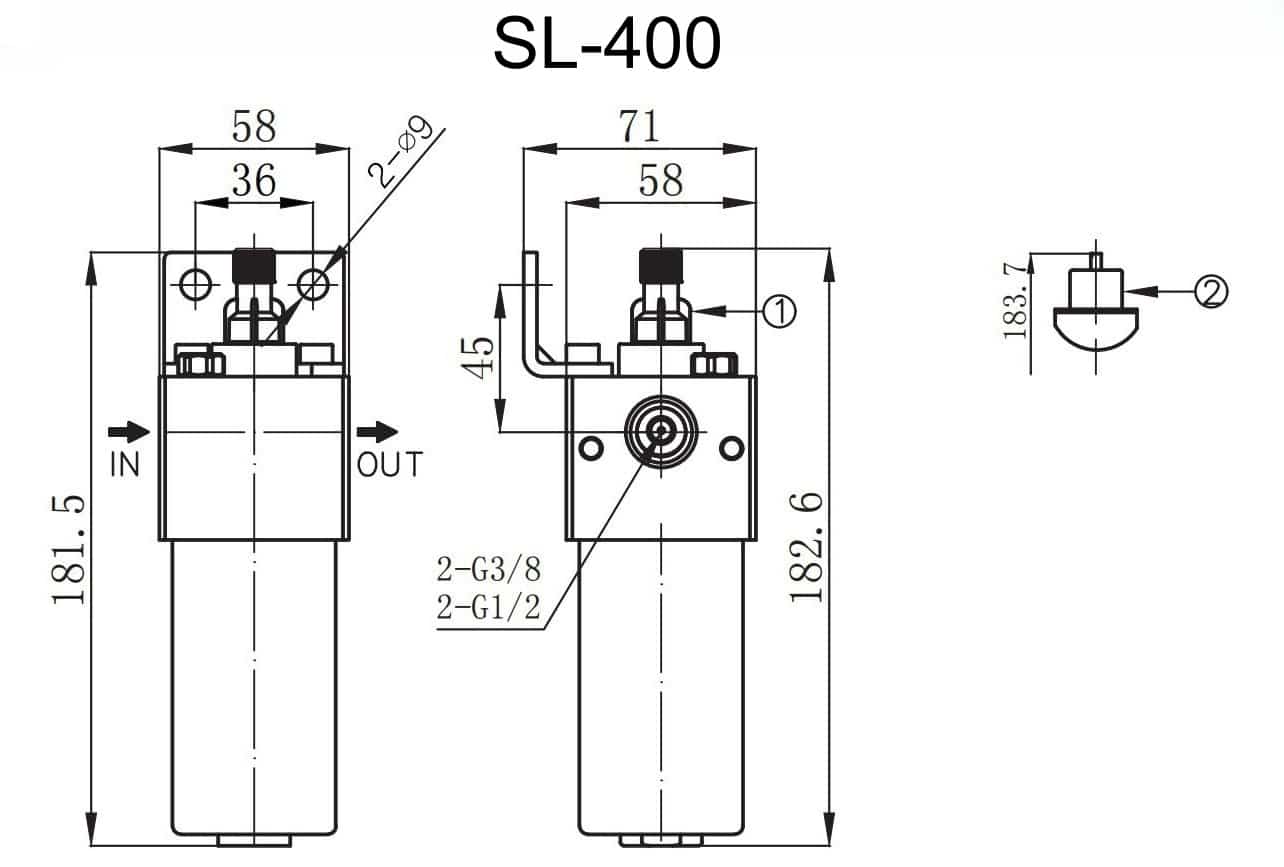

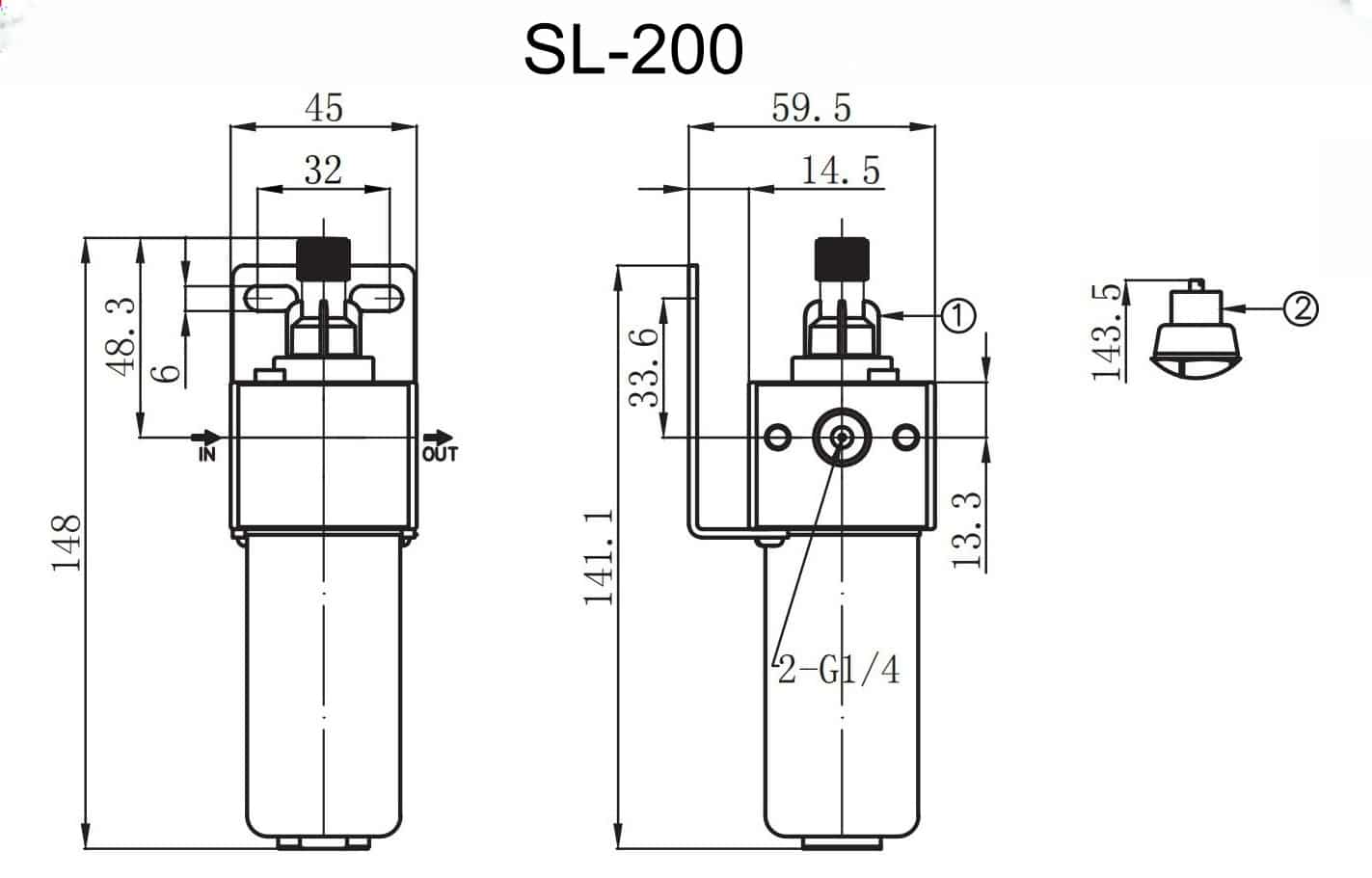

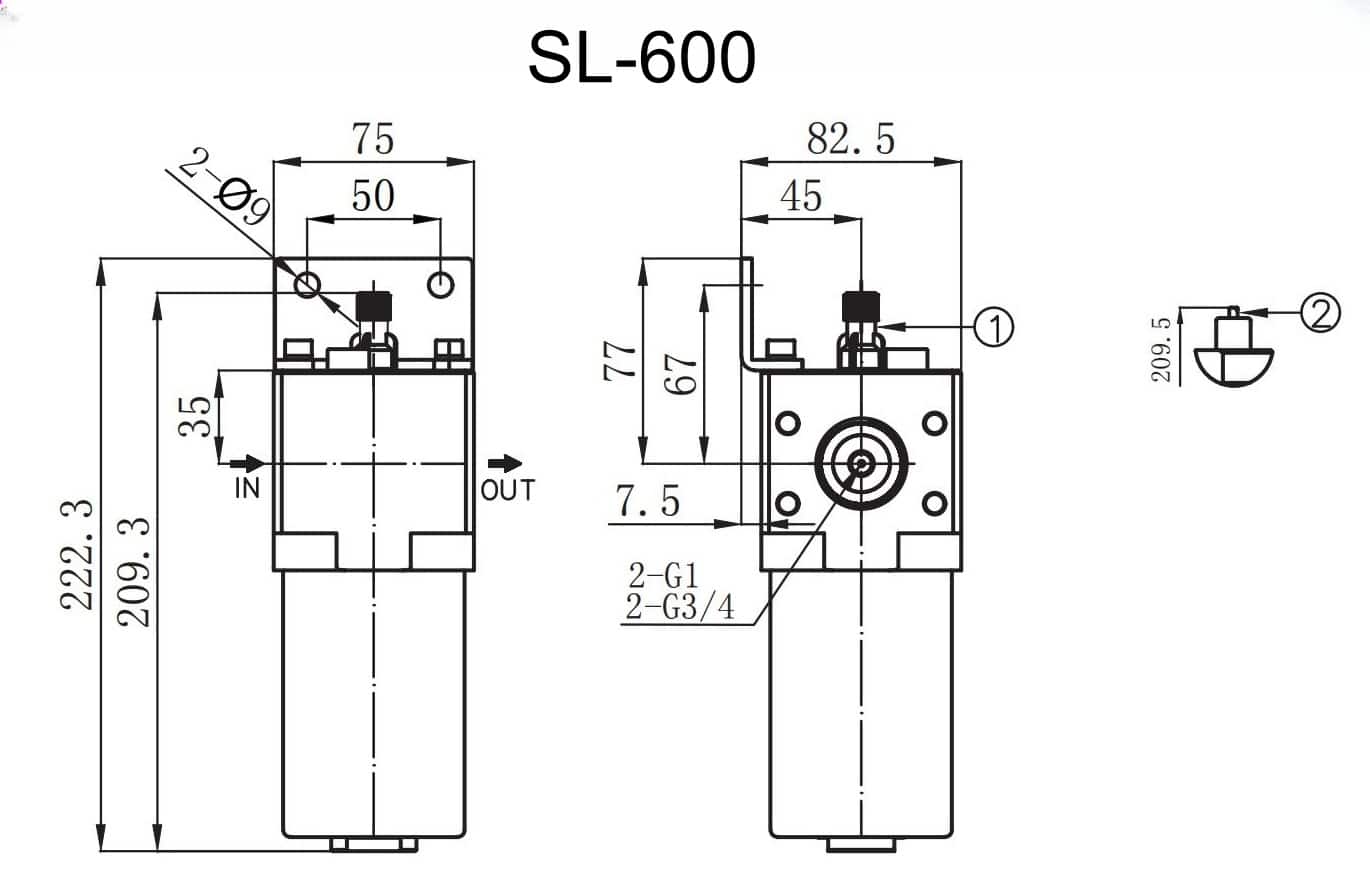

Model: SL-200 / SL-400 / SL-600
| Type-Name | Air Oil Lubricator | ||||
|---|---|---|---|---|---|
| Model | SL200 | SL400 | SL400 | SL600 | SL600 |
| Port Size(G) | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Max Flow Rate(L/Min) | 2500 | 2525 | 4100 | 13200 | 13200 |
| Lubricator Cup Capacity | 125cc | 130cc | 130cc | 200cc | 200cc |
| Working Medium | Air | ||||
| Pressure Regulating Range | 0.15~0.8MPa | ||||
| Pressure Resistance | 6MPa(870Psi) | ||||
| Operating Temperature Range | -40~100℃ | ||||
| Material | SUS316 stainless steel | ||||
| Accessories | Mounting bracket,screw x2 | ||||
| Weight | 1150g | 1700g | 1680g | 3300g | 3270g |
-
Compact and Lightweight: Easy to install and operate with a space-saving design.
-
Low Pressure Loss & High Efficiency: Provides effective oil mist separation with minimal pressure drop.
-
High Flow Rate: Capable of handling high flow volumes.
-
Reduced Starting Resistance: Oil mist helps lower the starting resistance of pneumatic components, enhancing overall system efficiency.
-
Enhanced Sealing Performance: Improves seal lubrication, leading to better sealing and performance.
-
Effective Lubrication: Oil mist uniformly coats pneumatic components, forming a protective oil film that prevents rust, wear, and provides lubrication.
-
Lubricant Savings: Oil mist lubrication significantly reduces lubricant consumption compared to traditional drip methods, lowering production costs.
-
Extended Equipment Lifespan: Effective lubrication helps extend the service life of pneumatic equipment.
-
Optimized Equipment Efficiency: Clean air enhances the operational efficiency of equipment.
-
Versatile Port Sizes: Available with various thread options, including G/PT/NPT, as well as sizes M5, 1/8'', 1/4'', 3/8'', 1/2'', and 3/4''.
-
Durable Construction: Made from SUS316 stainless steel for superior strength and resistance.
-
Resistant to Harsh Conditions: Withstands high pressure, corrosion, extreme temperatures, and both acidic and alkaline environments.
-
Longer Equipment Life: Oil mist spray provides consistent lubrication, enhancing machine performance and extending its lifetime.
