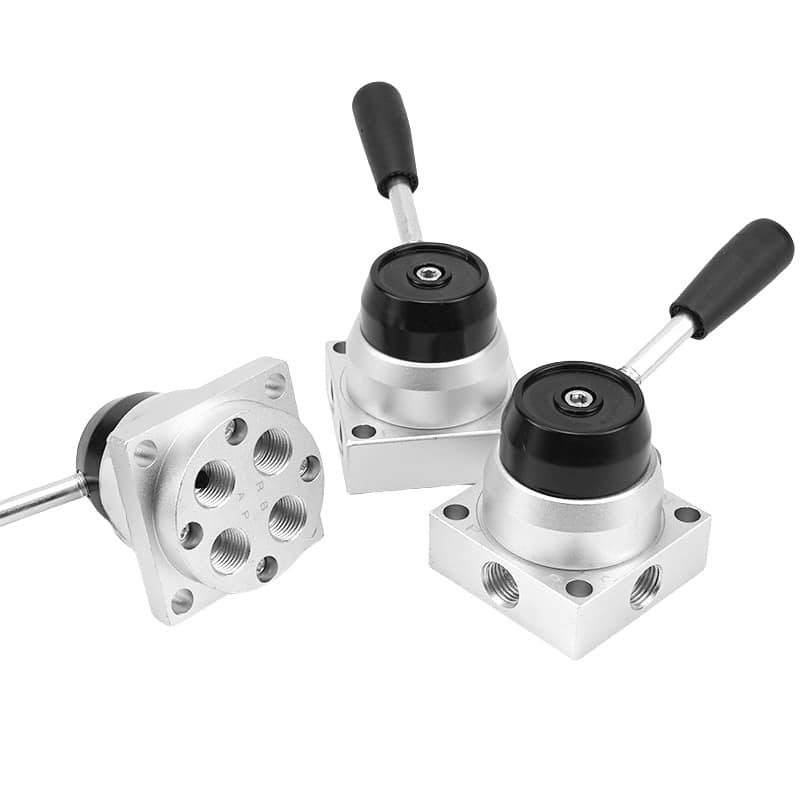

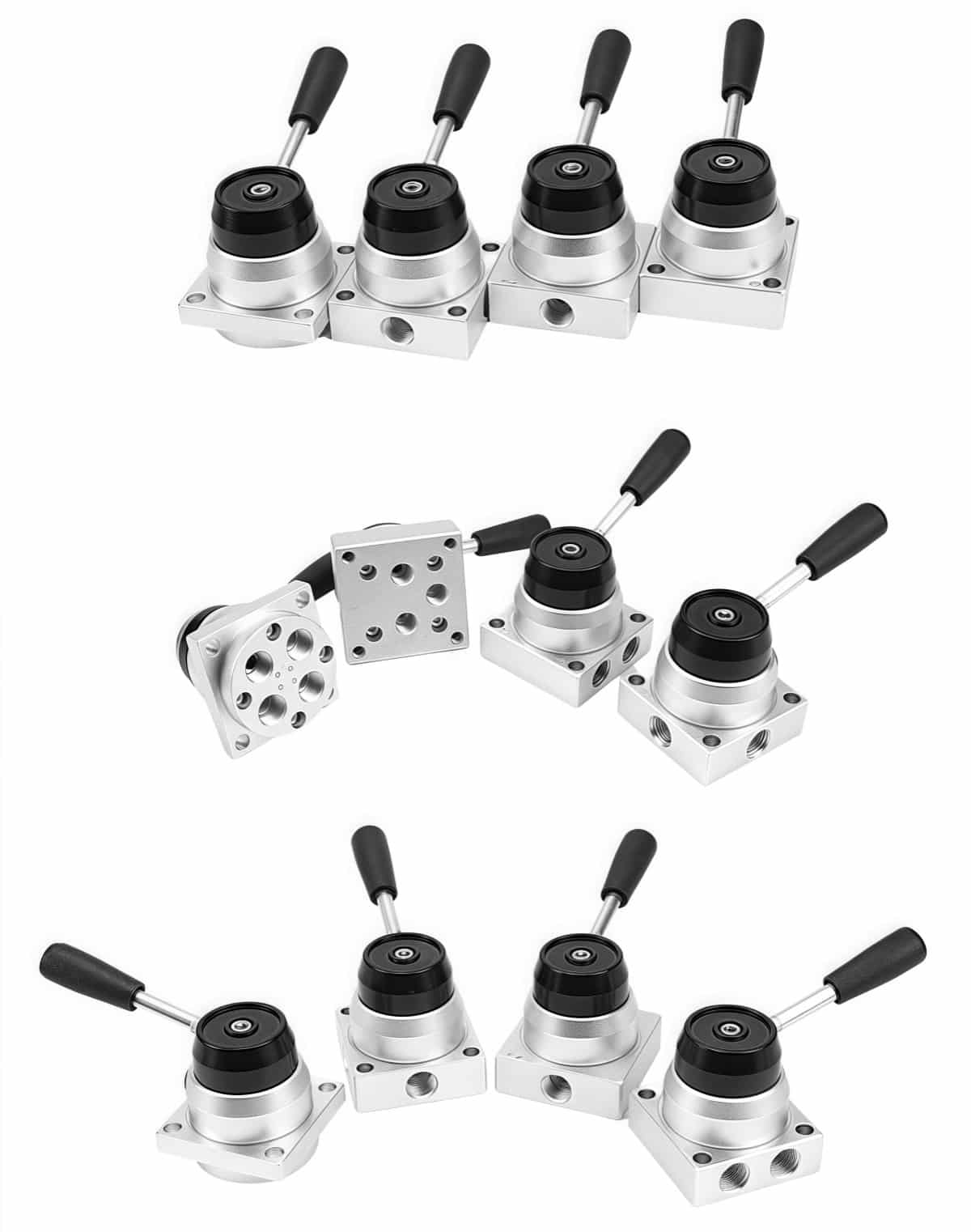

Pneumatic Air Rotary Hand Valve Hand Lever Valve
K24R6-6 K34R6-8 Series Pneumatic Air Operated Rotary Hand Valve, pneumatic control hand lever valve, 2 positions and 3 positions, 4 ways, 1/8" and 1/4" port size options, widely used in the compressed air pipeline control, fast installation, easy switch.
Features:
1. K34R6 K24R6 Series 4-Way 3 Positions or 2 Positions rotary type hand valve.
2. Port size:Â 1/8", 1/4"
3. Thread: BSP / NPT
4. Materials: Aluminum
5. Standard: ISO/CE
6. Colors: Silver, Black, customized
7. QC: Valve will be tested before shipment.
2. Port size:Â 1/8", 1/4"
3. Thread: BSP / NPT
4. Materials: Aluminum
5. Standard: ISO/CE
6. Colors: Silver, Black, customized
7. QC: Valve will be tested before shipment.
8. Operation: Compressed Air
9. Pressure: 0-8 Bar, 0.8 MPa, 110 PSI
10. Seal: NBR / VITON OPTIONAL.
10. Seal: NBR / VITON OPTIONAL.
11. Medium: Filtered Compressed Air
Specifications
| Model | K24R6-8 | K24R6-8D | K34R6-8 | K34R6-8D | K34R6-8L |
|---|---|---|---|---|---|
| Medium | 40um or above filtered air | ||||
| Operation | Rotary Hand Control | ||||
| Port Size | 1/4" BSP / NPT | ||||
| Working Pressure | 0.15~0.8MPa(21~114psi) | ||||
| Positions | 4-Way 2-Position | 4-Way 3-Position | |||
| Working Temperature | -10~60 ℃ | ||||
| Max Pressure | 1.5 MPa (215psi) | ||||

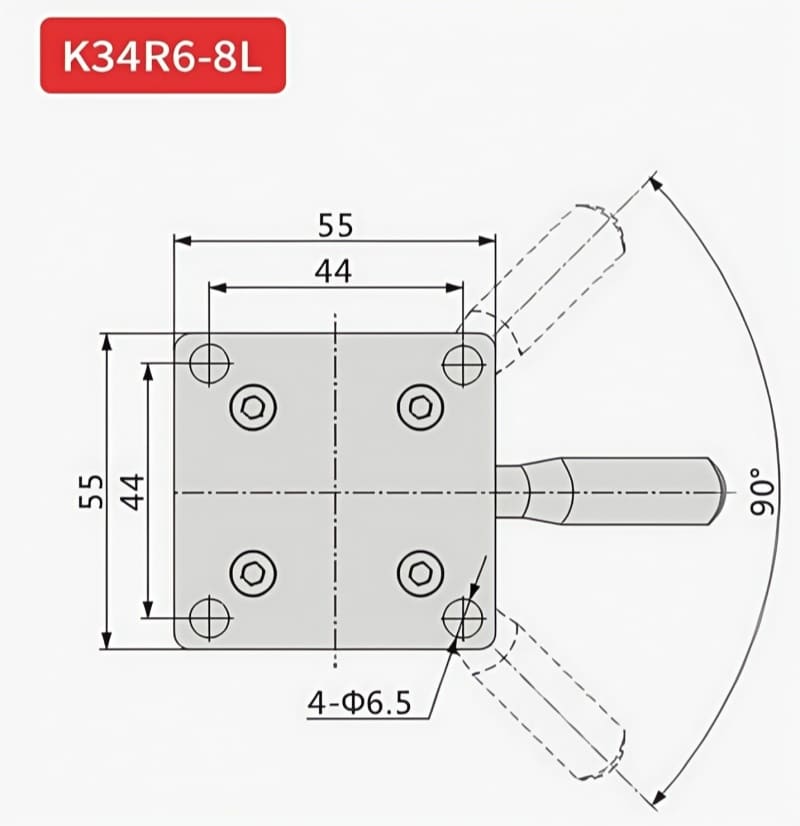

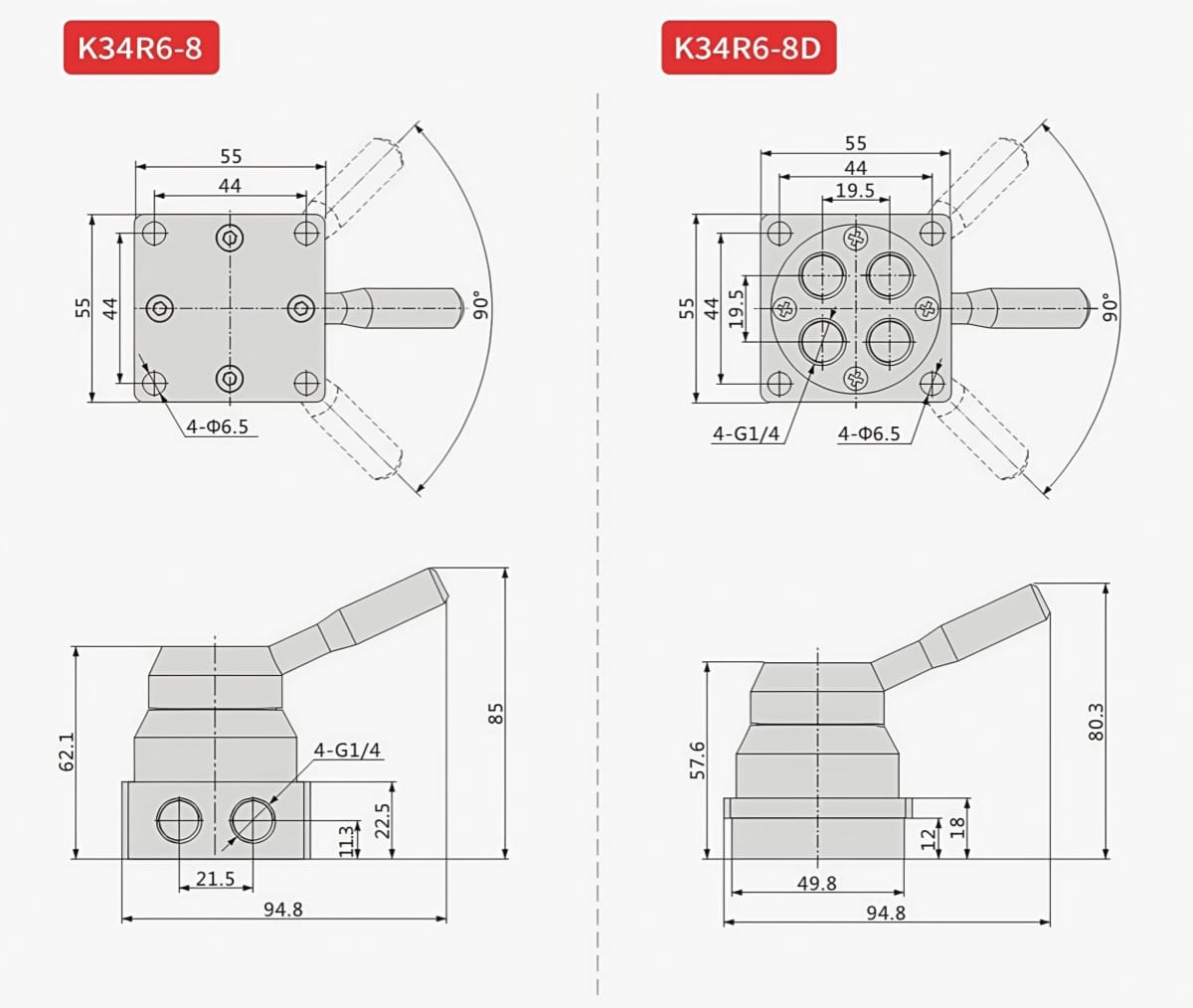

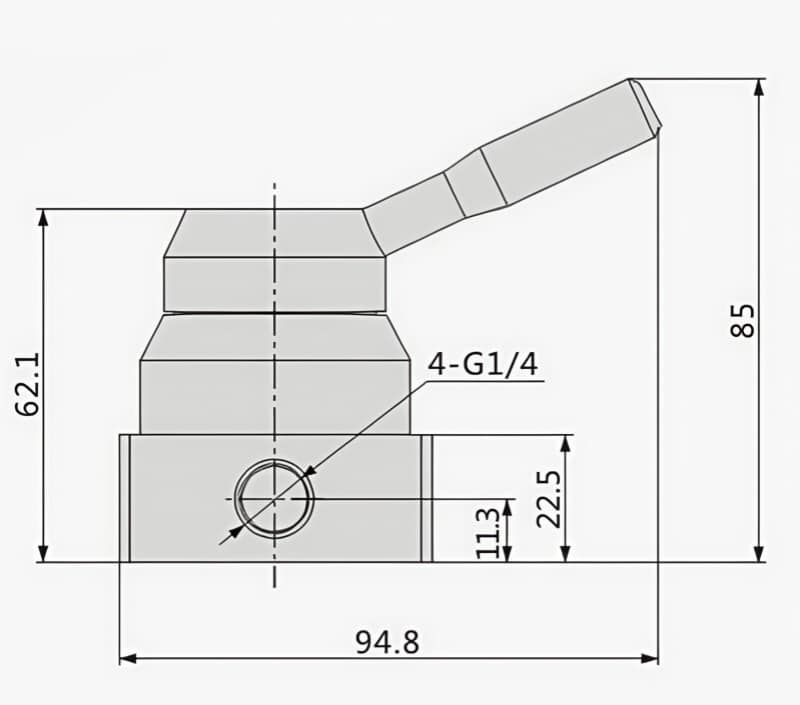

Sizes
