Flange Angle Seat Valve

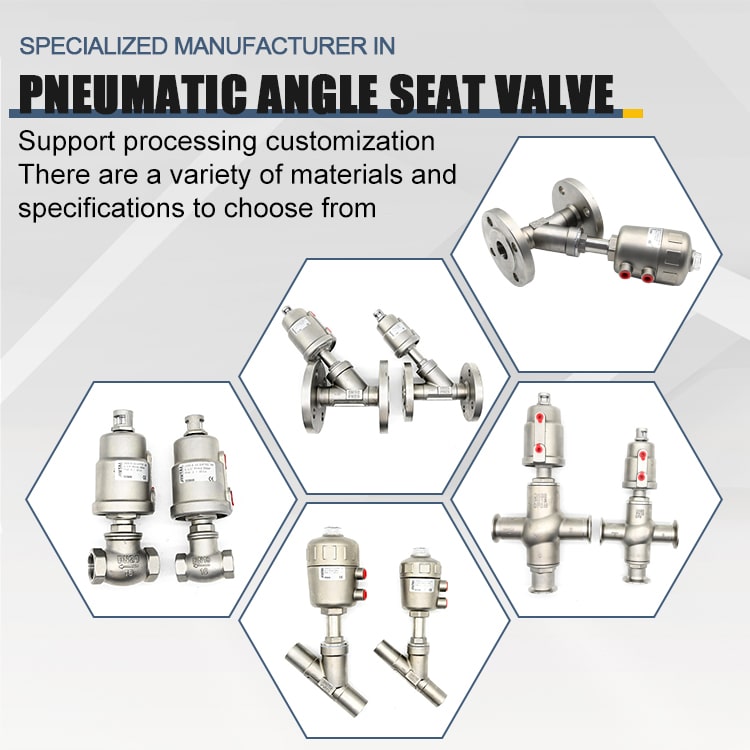

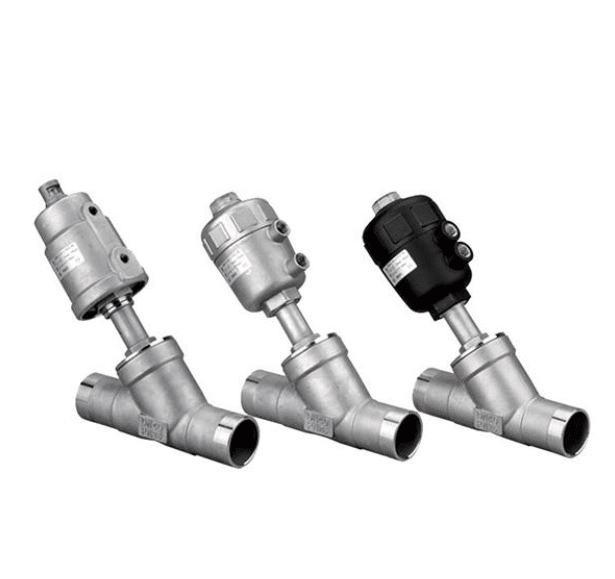

AKCF Series Stainless Steel SS304 SS316 Flange End Pneumatic Angle Seat Valve, Single Acting, Double Acting, 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some special fluids. The piston actuator works in a precise and fast linear movement.
Features:
1. 2/2 pneumatically flanged angle seat valve
2. Port Sizes: DN10 DN15 DN20 DN25 DN32 DN40 DN50 DN63 DN80
3. Connection: Threaded, Flange End, Welded End, Welding, Socket.
4. Materials: Plastic Actuator / Stainless Steel Actuator, SS304 / SS316 Stainless Steel Body
5. Seal options: NBR, EPDM, and FKM.
6. Optional Accessories: Limit Switch, Solenoid Valve, Position Indicator, Air Filter Regulator
7. Quality: Angle Seat Valve, Limit Switch, Solenoid valves will be tested one by one before shipment.
3. Connection: Threaded, Flange End, Welded End, Welding, Socket.
4. Materials: Plastic Actuator / Stainless Steel Actuator, SS304 / SS316 Stainless Steel Body
5. Seal options: NBR, EPDM, and FKM.
6. Optional Accessories: Limit Switch, Solenoid Valve, Position Indicator, Air Filter Regulator
7. Quality: Angle Seat Valve, Limit Switch, Solenoid valves will be tested one by one before shipment.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Air, Gas, Steam, Water, Oil, Acidic liquids.
Fluid Media: Air, Gas, Steam, Water, Oil, Acidic liquids.
| Body Material | SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc. |
|---|---|
| Size | 1/2"-4"(DN15-DN100) DN10 DN15 DN20 DN25 DN32 DN40 DN50 DN63 DN80 DN100 |
| Working pressure | PN16-25,1.6-2.5Mpa,16-25Bar |
| Medium temperature | - 20 ℃ ~ + 180°C, Optional (- 20℃ ~ + 220°C) |
| Ambient temperature | -20 °C~ + 60 °C |
| Regulating pressure | 0.3 ~ 0.8 MPa |
| Control gas | gas, air |
| Connection type | Weld, Thread,Socket,Clamped,Flanged |
| Thread Standard | BSPT,Optional(NPT, BSP, BSPP) |
| Control type | Single acting,Double acting |
| Optional accessory | Solenoid valve, limit switch box, positioner, etc. |
| Actuator material | Stainless Steel,plastics |
| Seat material | PTFE,PPL |
| Stem material | 304,316,CF8,CF8M |
| Sealing ring material | NBR |
| Solenoid valve | Option(DC24V,AC220V) |

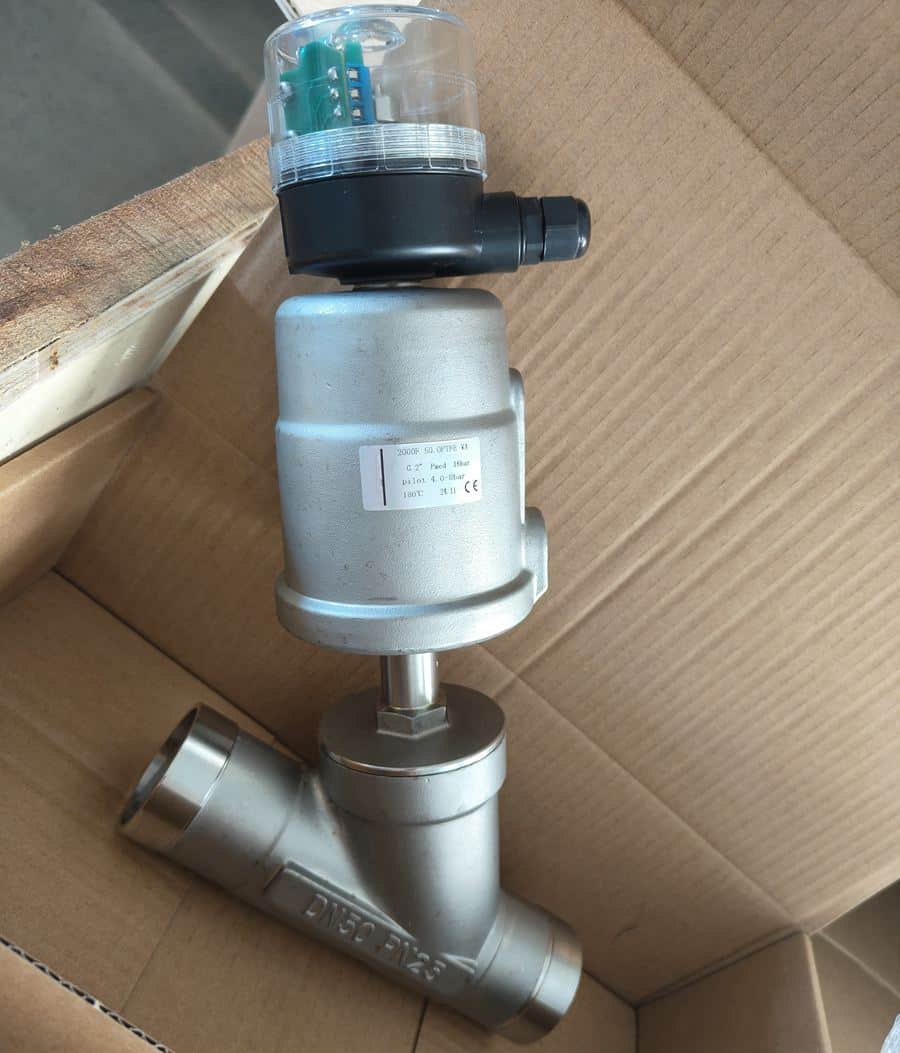

| Positioner | Option(TY-1000,1500 Series, 4-20ma Signal feedback) |
| Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
| Capacity to produce | 10000PCS/Mouth |
| Certification | CE, ISO, our factory has been inspected by leyon and TUV |
| MOQ | 1 PC |
| HS Code | 8481804090 |
| Trademark | AIRKERT |
| Application | Suitable for water, oil, air ,steam and some corrosive liquid etc |
| Buyer's drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Or as buyer's requirements |
