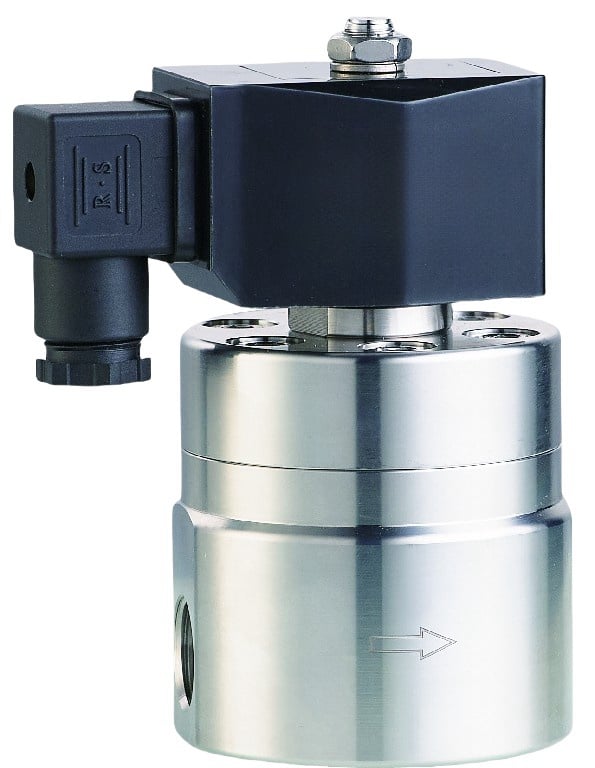

700 Bar 10000 PSI 70 MPa Super High Pressure Solenoid Valve
ASMZ Series Super Ultra High Pressure Resistant Stainless Steel Solenoid Valve, SS304, SS316, up to 700 bar, 70 MPa, 10000 PSI pressure resistance. Suitable for water washing machine, dust cleaning system, high pressure blowing system. Durable, long lasting performance, anti corrosion,
Features:
1. SS316 SS304 series 2-way N/C high-pressure solenoid valve
2. Port Sizes: 1/8", 1/4"
3. Thread Standard: G, BSP, NPT
4. Materials: SS316 Stainless Steel
5. Seal options: PTFE, PEEK, PTCFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. N/C, normally closed. N/O normally open optional.
2. Port Sizes: 1/8", 1/4"
3. Thread Standard: G, BSP, NPT
4. Materials: SS316 Stainless Steel
5. Seal options: PTFE, PEEK, PTCFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. N/C, normally closed. N/O normally open optional.
8. Pressure Resistance: 700 bar, 70 MPa, 10000 PSI
9. Orifice: 0.5mm
10. Working Medium: Water, Air, Gas, Liquid, etc.
| Size | Orifice(mm) | CV | Pressure Resistance(Max. Bar) | Working Temperature | Coil Type | Coil Class | Model Code | Weight(KGS) |
|---|---|---|---|---|---|---|---|---|
| 1/8" | 0.5 | 0.02 | 700 | 120 | M | F | ASMZ06 | 0.9 |
| 1/4" | 0.5 | 0.02 | 700 | 120 | M | F | ASMZ08 | 0.9 |
| Voltage | Inrush Power | Holding Power | Inrush Electricity | Holding Electricity |
|---|---|---|---|---|
| 220VAC | 130VA | 6.0VA | 590mA | 28mA |
| 110VAC | 95VA | 8.0VA | 900mA | 75mA |
| 24VDC | 45W | 4.5W | 3750mA | 380mA |
- High Pressure Performance: The ASMZ Series solenoid valve is designed to handle high pressures of up to 700bar, making it suitable for target applications.
- Durable Fabrication: Made of high-quality SS316 stainless steel material, long-lasting performance and high resistance to corrosion.
- Customization: OEM supported, we offer customization options to meet some customers requirements.
- Port Size Range: From 1/8 to 1 inch, providing full options for various applications.
- Warranty and Support: The product comes with a 1-year warranty and non-stop customer support.
