Project Description

4V210 pneumatic directional solenoid valves

4V Series Pneumatic Directional Solenoid Valves

4V series solenoid valves are suitable for operating double or single acting cylinders in pneumatic control system. They have 5 ports and 2 or 3 positions. And 4 type’s valve bodies are provided. They are 4V100, 4V210, 4V310 and 4V410 etc. The ports size can be from M5 to 1/2”. The solenoid operated valves can be mounted in line. The pilot valve is supplied with manual override and connector as standard.

Characteristic:

1) The protection grade for this series solenoid valve is IP65.

2) Different voltages are available for coils.

3) Pressure unit: 1kgf/cm2=1bar=0.1MPa=100KPa=14.5psi

4) Lead wire type is available, please remind when you order.

5) Different thread types can be offered according to customers’ requirements, e.g.: PT, NPT etc.

MediaCompressed air
Applicable pressure range0.15~0.85Mpa
Proof pressure1.2Mpa
Ambient and fluid temperature-5~60°C
Material of bodyAluminum alloy
Standard voltageDC12V,DC24V,AC24V,AC110V,AC220V,AC380V
Power consumptionAC220V2.0W
DC12V,AC110V,AC380V2.5W
DC24V3.0W
AC24V3.5W
Allowable voltage range-15%~10%
IP rateIP65
Insulation rateClass F
ActionInternally piloted
Min. activate time0.05 s
LubricationNeedless

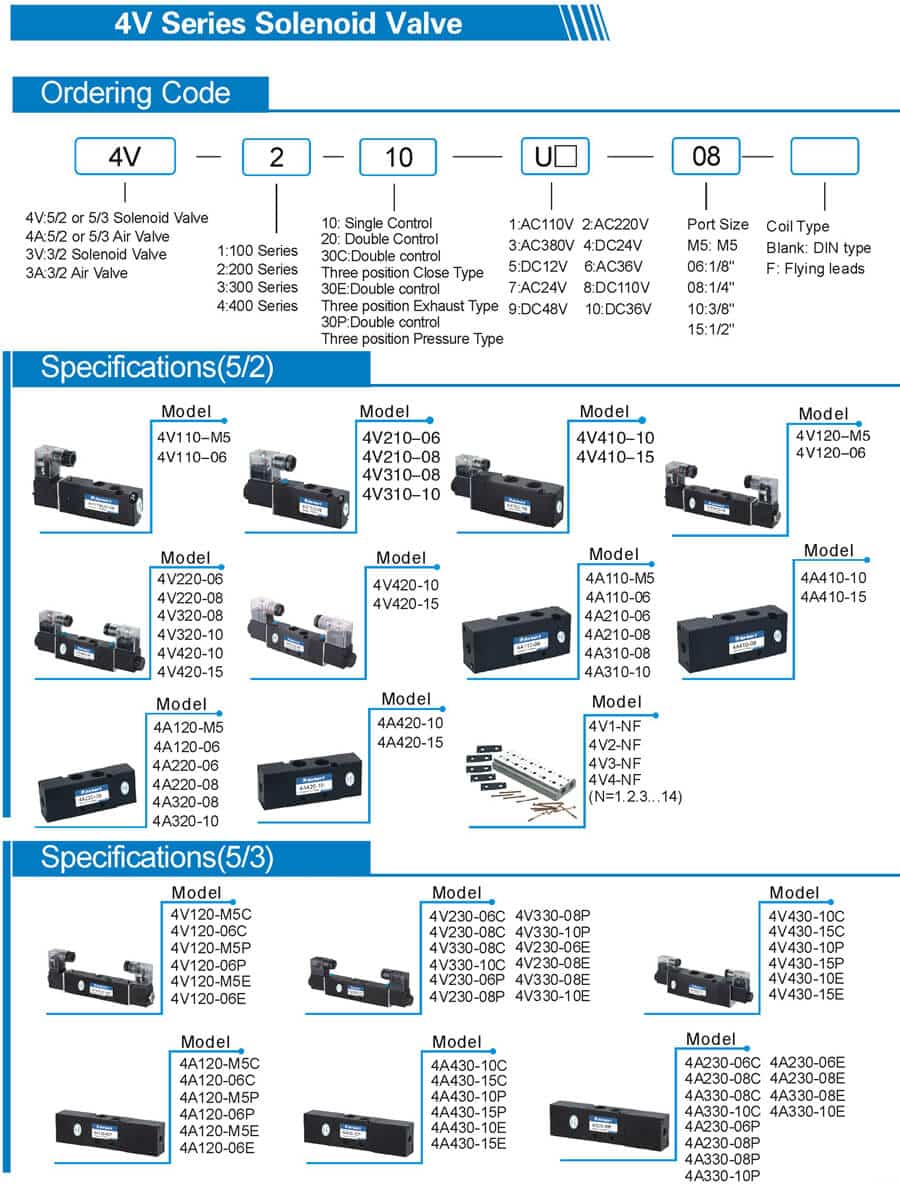

4v pneumatic directional solenoid valve 5 way 3 positions 2 positions

4v pneumatic directional solenoid valve 5 way 3 positions 2 positions
