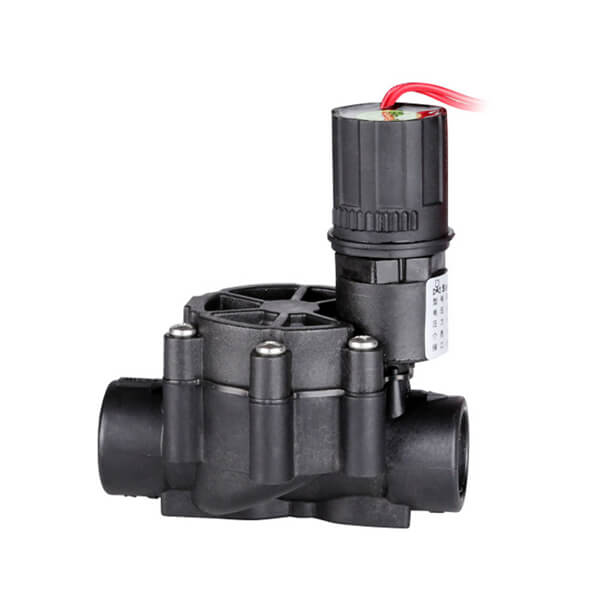

Flow rate adjustable nylon latching lawn irrigation solenoid valve IP68
Irrigation solenoid valve is one of the most common using solenoid valve, mainly used for garden irrigation, field landscape irrigation, playground irrigation, agriculture irrigation and so on
Medium temperature：-5～80℃
Working type：direct current pulse type (N/C)
Body material：reinforced nylon PA66(German)
Interface：G thread NPT thread
Working voltage：DC2.5～6.5V IP67
Coil resistance：25Ω
Min current：190mA
Pulse width：≥10ms
Response time：open≤0.15s close≤2s

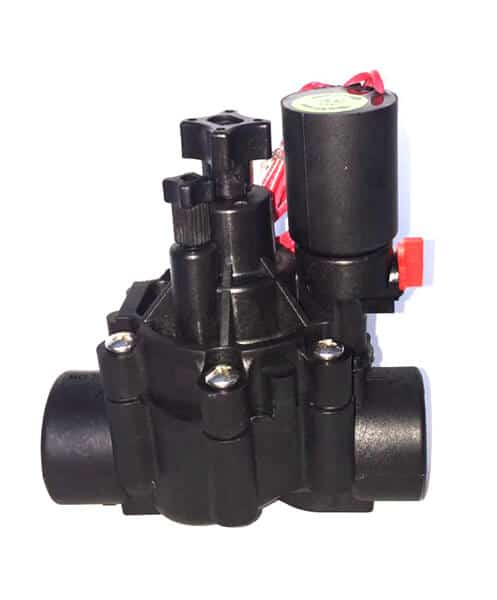

Latching(normally closed)Irrigation Solenoid Valve
Features
- A manual internal bleed operates the valve
- Slow closing to protect the system in a better way

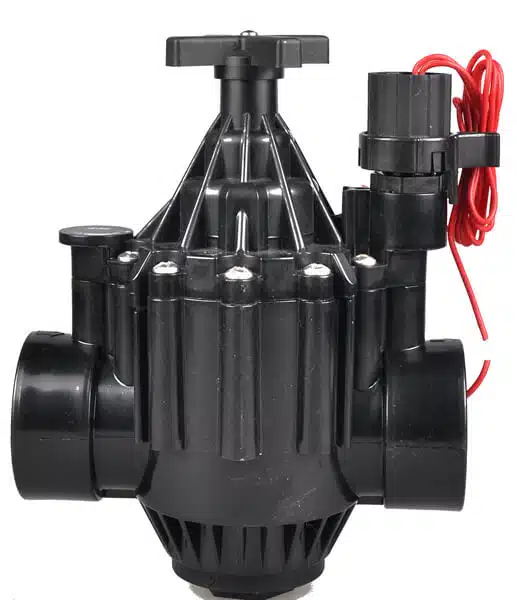

- Non-rising flow control handle
- Globe and angle configuration for flexibility in design and installation
| Characteristic | 1. Pilot operated diaphragm structure, reinforced nylon.
Both normally closed and latching valve on optional. |
| 2. Double filtration anti blocking solenoid valve | |
| 3. Full closed coil water proof | |
| 4. Close slowly, anti water hammer | |
| Medium | water, air |
| Temperature | NBR seal: -10°C to 80 °C |
| Pressure | 0.1-1.0Mpa |
| Port size | 3/4′-3′ |
| Port thread | G |
| Orifice | 20,25,40,50,80mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ | |
| Tolerance | ±10% |
| Coils | SE02B,8W,IP68,100% ED |
| L32B,DC6-20V,pulse length 20-500 ms | |
| Application | Widely used in lawn irrigation system,like large area of lawn, gym, agriculture,industrial dusting,and water treatment. |
| Material | Body- reinforced nylon |
| Seal- NBR | |
| Amature tube-stainless steel 304 | |
| Plunger-stainless steel430F | |
| Stop-stainless steel 430F | |
| Springs-SS304 | |
| Shading rings- stainless steel 304 |
