zs solenoid valve

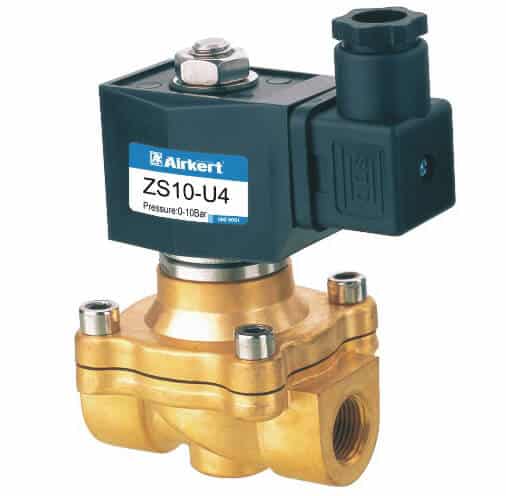

ZS 2/2-way Large diameter Direct Acting Solenoid Valve·Normally Closed

ZS Solenoid valves have similar function like 2W series valves. ZS solenoid valve is also one of the most popular 2/2 solenoid valve. ZS series solenoid valves also start working at zero differential pressure and this valve also enjoys wide range sizes for threads from 1/8” to 2”, including stainless steel body, brass body. Normal close and normal open is optional. But there are two points that ZS is different from 2W valves. The first one is the connecting type. ZS valve has flange connecting way besides thread connecting. The other is about the coil. ZS valve’s coil is DIN type.

ZS-06 ZS-08 ZS-10 ZS-15 ZS-20 ZS-25 ZS-35 ZS-40 ZS-50

Body material:Forged Brass
Pressure:0-10kgf/cm2
Orifice:Ф15mm-50mm
Pipe size:3/8”-2”
Fluid Media: Water、Hot Water、Air、Gas、Oil Etc.

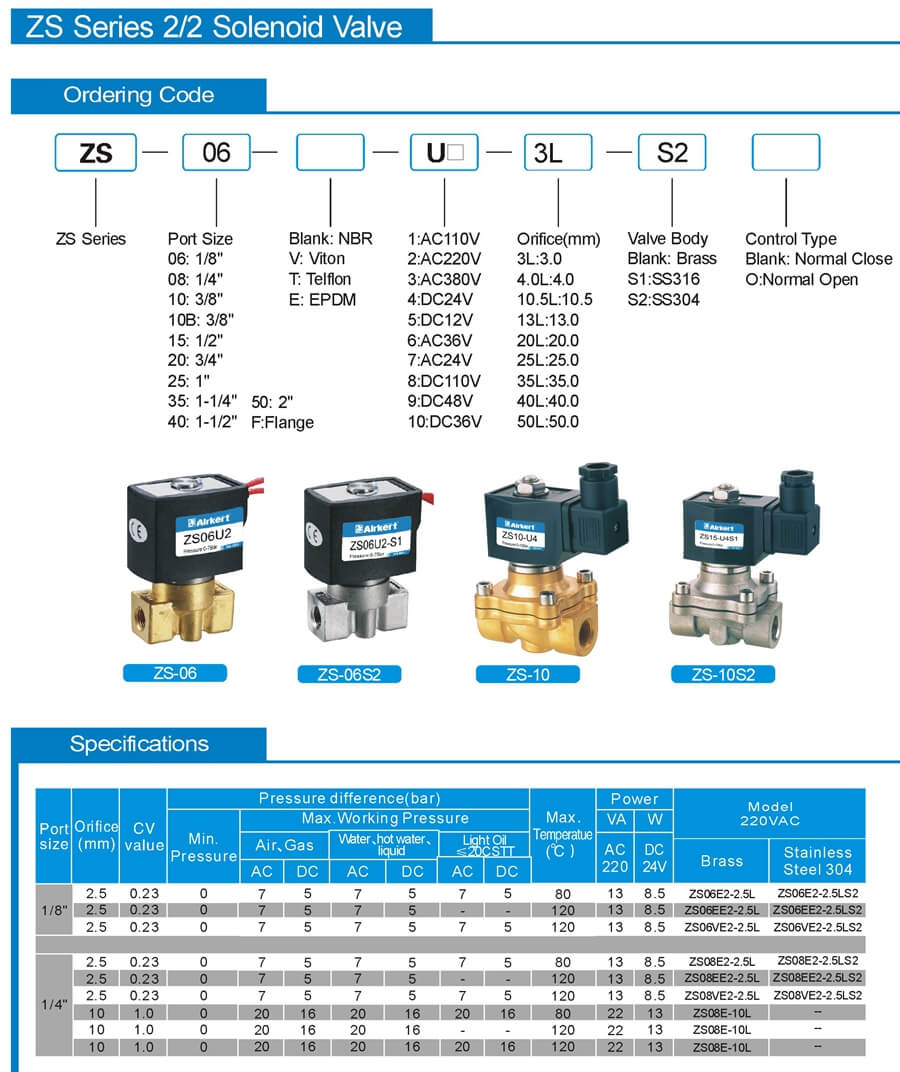

ZS Solenoid Valve Sheet

ZS Solenoid Valve Sheet

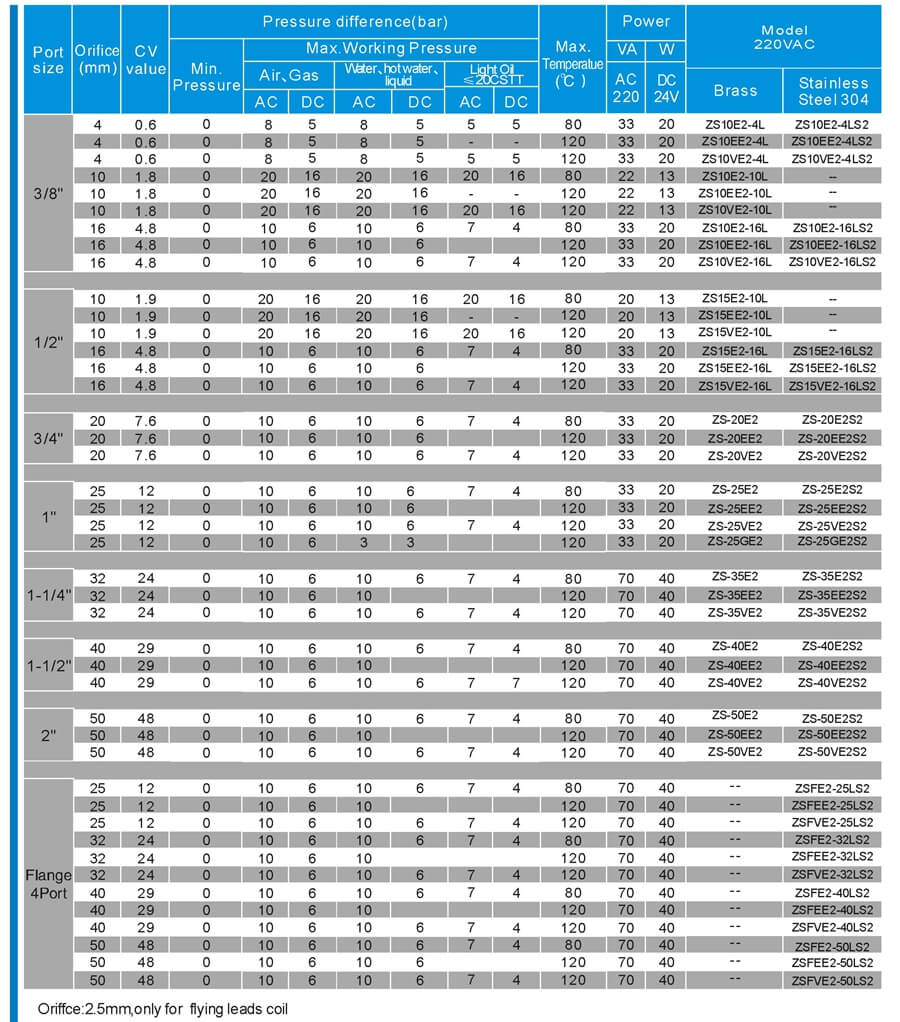

ZS Solenoid Valve Sheet 2

ZS Solenoid Valve Sheet 2
