slp-o solenoid valve

SLP 2/2-way Large diameter Pilot Operated Solenoid Valve·Normally Open

SLP-O solenoid valves are the most famous 2/2 solenoid valve in our products list. The working pressure can reach 1.3MPa. Normal close and normal open is optional. The port size ranges from 1/8”to2”. It can be used in many different medium like air, gas, oil etc. Excellent performance and widely application settle the position in solenoid valves. The annual output is around 720,000pcs.

SLP-06 SLP-08 SLP-10 SLP-15 SLP-20 SLP-25 SLP-35 SLP-40 SLP-50

SLP-O-06 SLP-O-08 SLP-O-10 SLP-O-15 SLP-O-20 SLP-O-25 SLP-O-35 SLP-O-40 SLP-O-50

Body material: Forged Brass
Pressure:0.5-13kgf/cm2
Orifice:13mm-50mm
Pipe size:3/8”-2”
Fluid Media: Water、Hot Water、Air、Gas、Oil Etc.

Normally Open Type Solenoid Valve

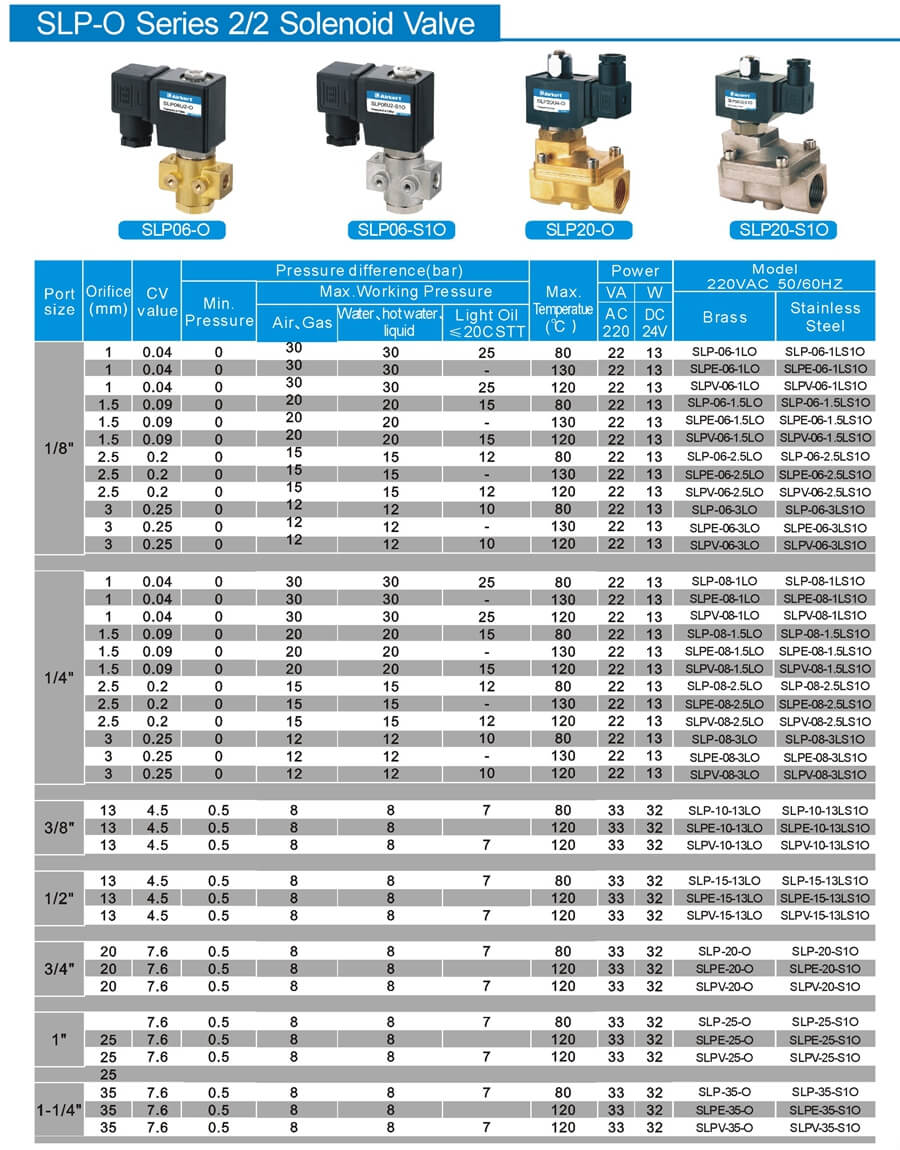

SLP-O Solenoid Valve Sheet

SLP-O Solenoid Valve Sheet

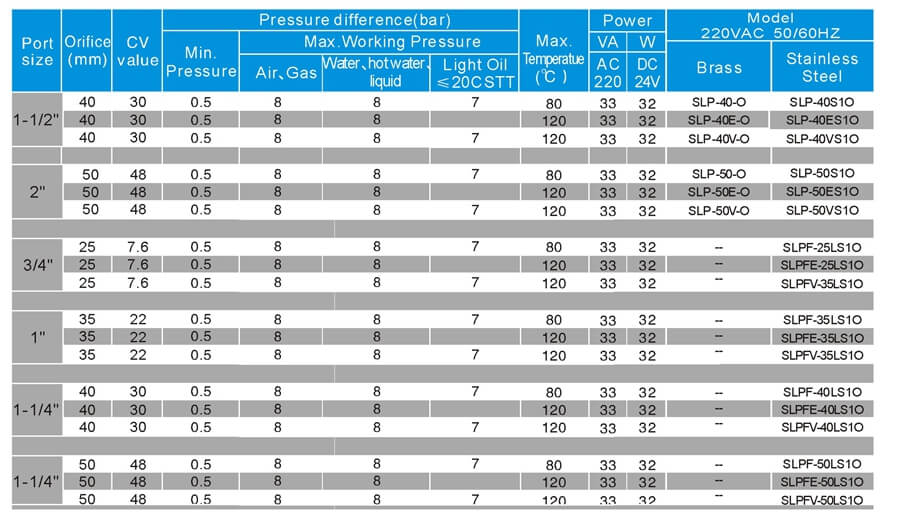

SLP-O Solenoid Valve Sheet 2

SLP-O Solenoid Valve Sheet 2
