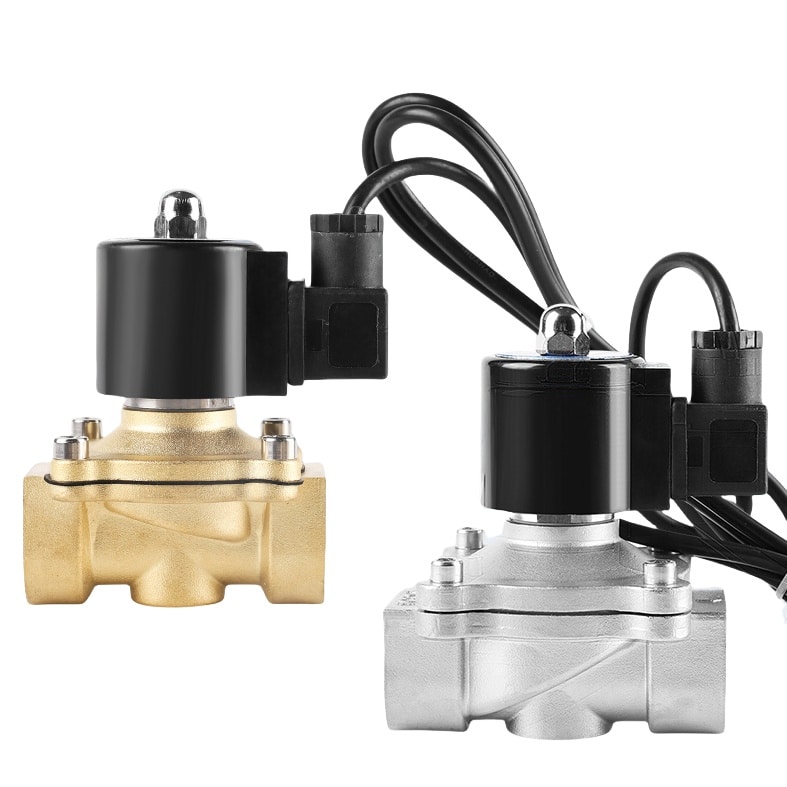

Waterproof Solenoid Valve Coil Underwater Solenoid Valve Coil

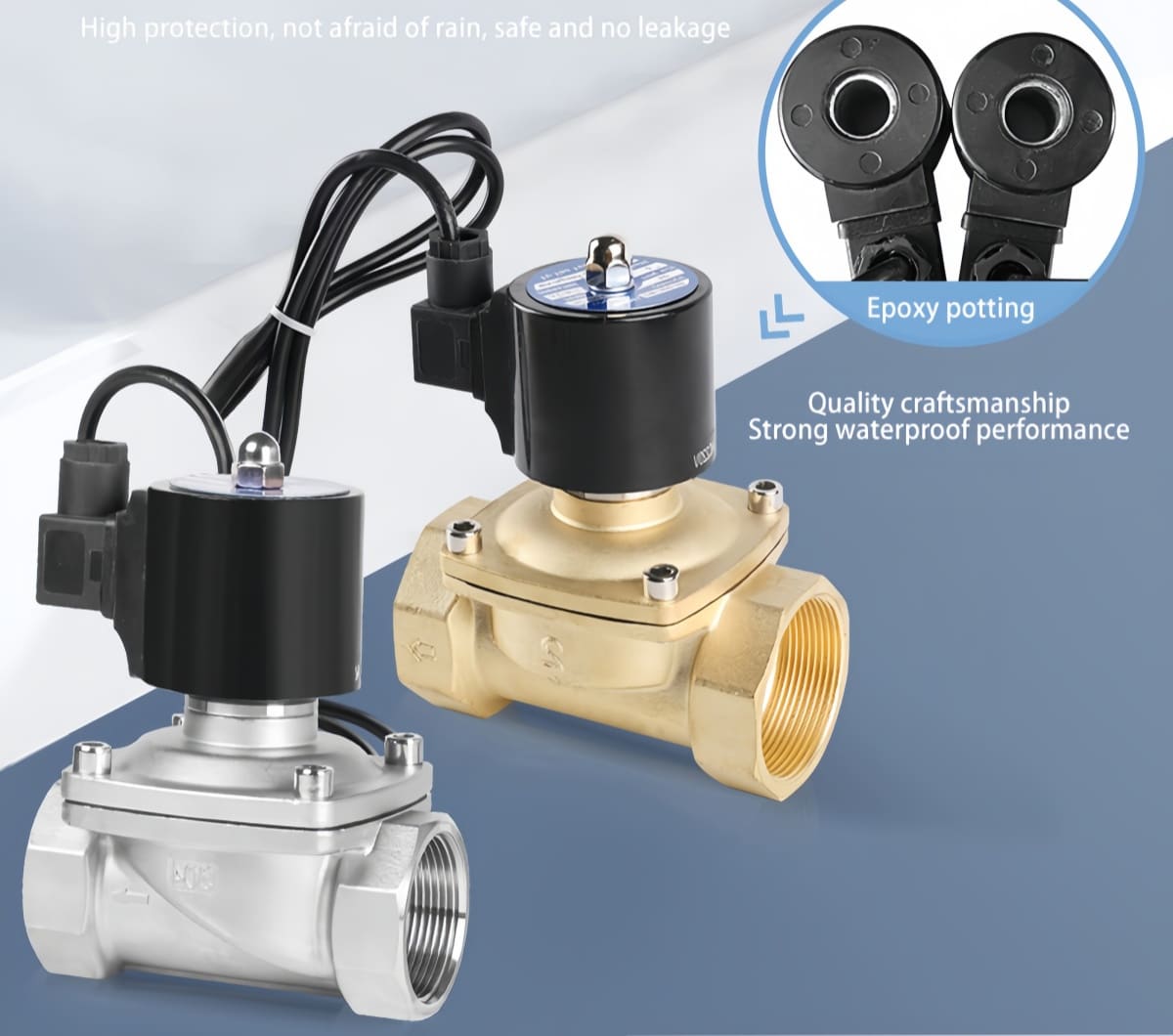

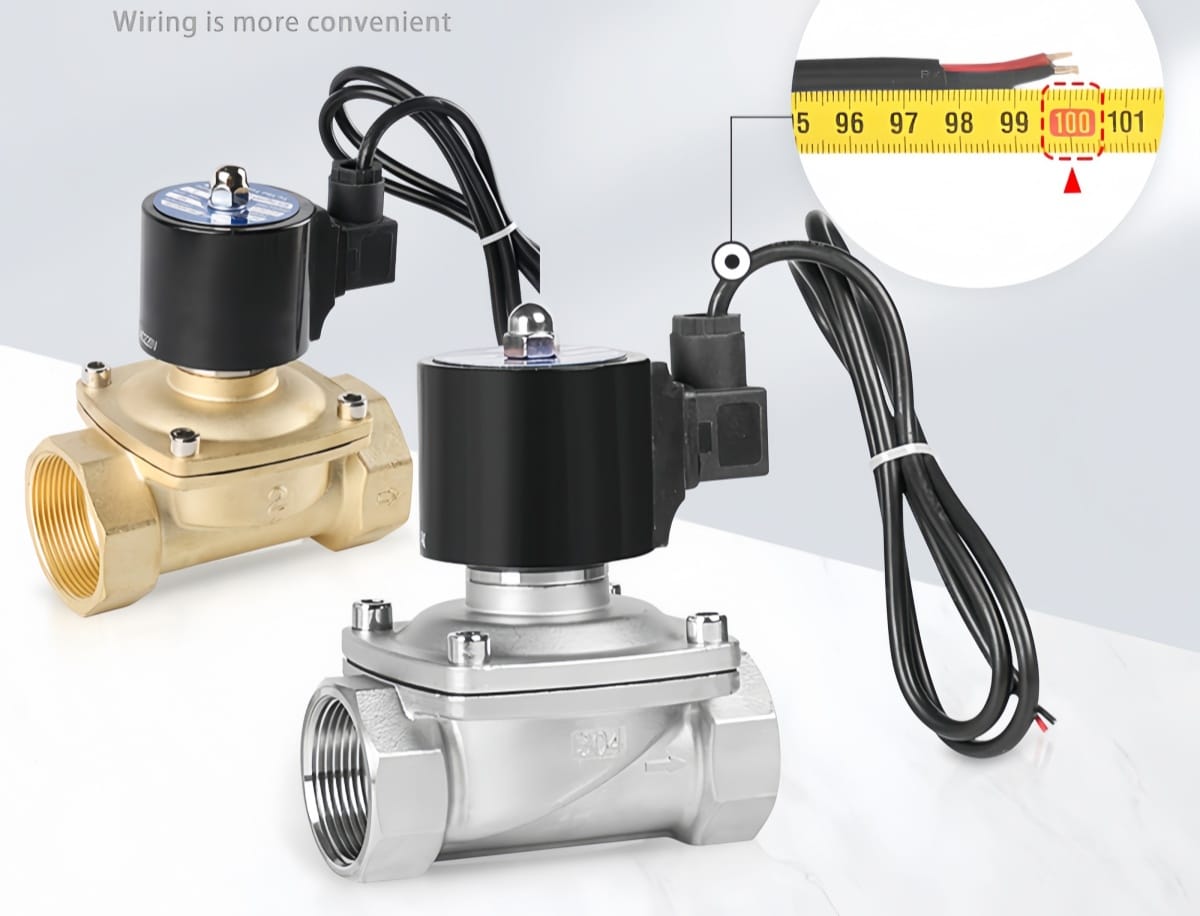

SLDF-C Series Waterproof solenoid valve coil is designed to fit the fluid solenoid valves in outdoor or underwater use, high insulation grade, this kind of Solenoid coil is especially for fountain solenoid valve and submarine solenoid valve. Integral plastic body material, 1 meter lead wire, easy to connect, various voltages optional.
Features:
1. SLDF-C waterproof solenoid valve coil
2. Port Size Selection: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2"
3. Thread Standard: G, BSP, NPT
4. Materials: Plastic, Copper wire
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC
7. Quality: solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Size Selection: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2"
3. Thread Standard: G, BSP, NPT
4. Materials: Plastic, Copper wire
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC
7. Quality: solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Air, Water, Liquid Oil.
Fluid Media: Air, Water, Liquid Oil.
| Voltage Options | AC220V AC110V DC24V DC12V | |
|---|---|---|
| Power Consumption | AC | 22VA |
| DC | 18W | |
| Other voltages and power consumption can be customized | ||
| Insulation Class | H | |
| Connection Type | Lead wire | |

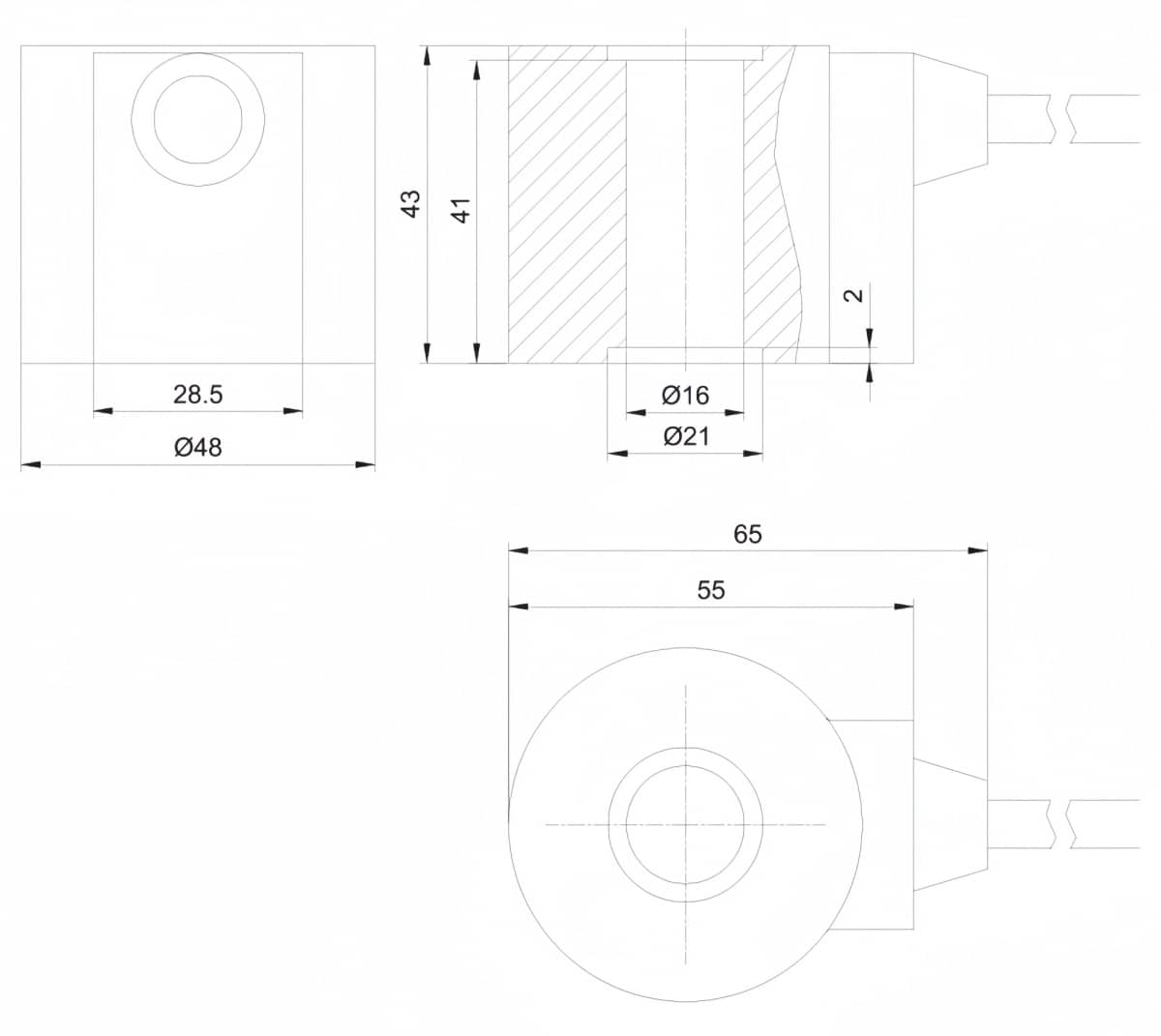

| Diameter | 16 mm | |
| Height | 43 mm | |
