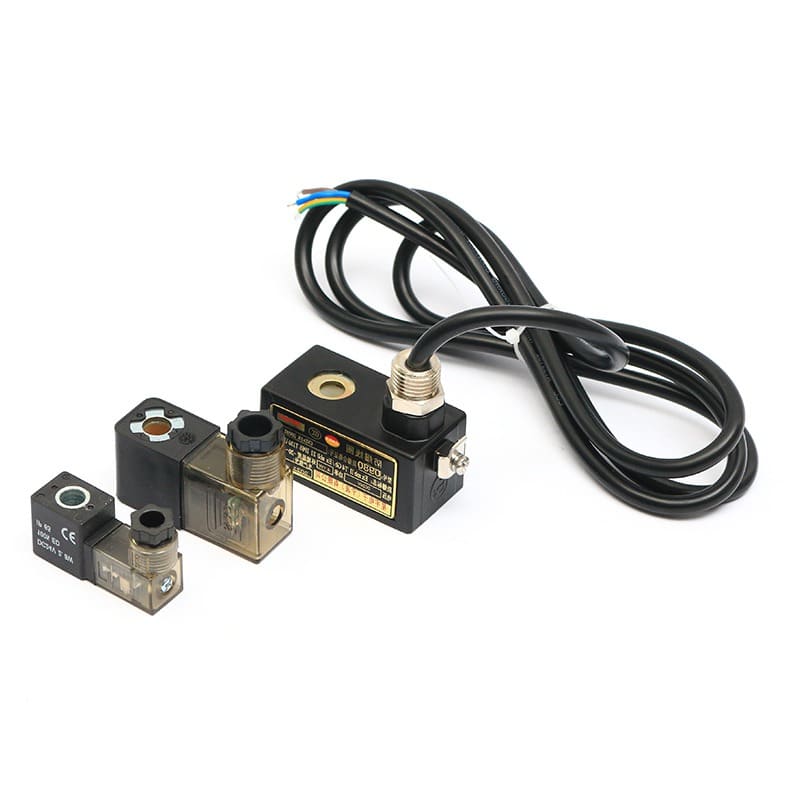

2W Round Explosion Proof Ex-proof solenoid valve coil
2W545 Series round type explosion proof solenoid valve coil is designed to fit the 2-way solenoid valves, wide range applications. The Explosion-proof Electromagnetic Valve Coil Ex mb T4 EX Proof Coils is designed for general applications, ensuring a reliable and safe operation in various environments. With a wide range of port size options, this coil can be easily equipped with various systems, accommodating different customer's requirements. The solenoid coils follows ATEX standard.
Features:
1. Explosion-proof / Ex-proof coil / ATEX certification
2. Fit 2-way solenoid valves.
3. Thread Standard: G, BSP, NPT
4. Materials: Durable plastic body.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC.
7. Quality, solenoid valve coils will be tested one by one before shipment.
2. Fit 2-way solenoid valves.
3. Thread Standard: G, BSP, NPT
4. Materials: Durable plastic body.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC.
7. Quality, solenoid valve coils will be tested one by one before shipment.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Clean air
Fluid Media: Clean air
Model: 2W545 Series
Explosion Proof Standard: Ex mb I Mb Ex mb II T4 Gb DIP A20 TA T4
CNEX: CNEX13.1592X
| Voltage Options | AC220V AC110V DC24V DC12V | |
| Power Consumption | AC | 18VA |
| DC | 17W | |
| Ex-proof Grade | Ex mb I Mb Ex mb II T4 Gb DIP A20 TA T4 |
|
| Connection Type | Lead wire | |
| Production license | ATEX Certification | |
| Ex-proof certificate No | CNEx13.1592X | |

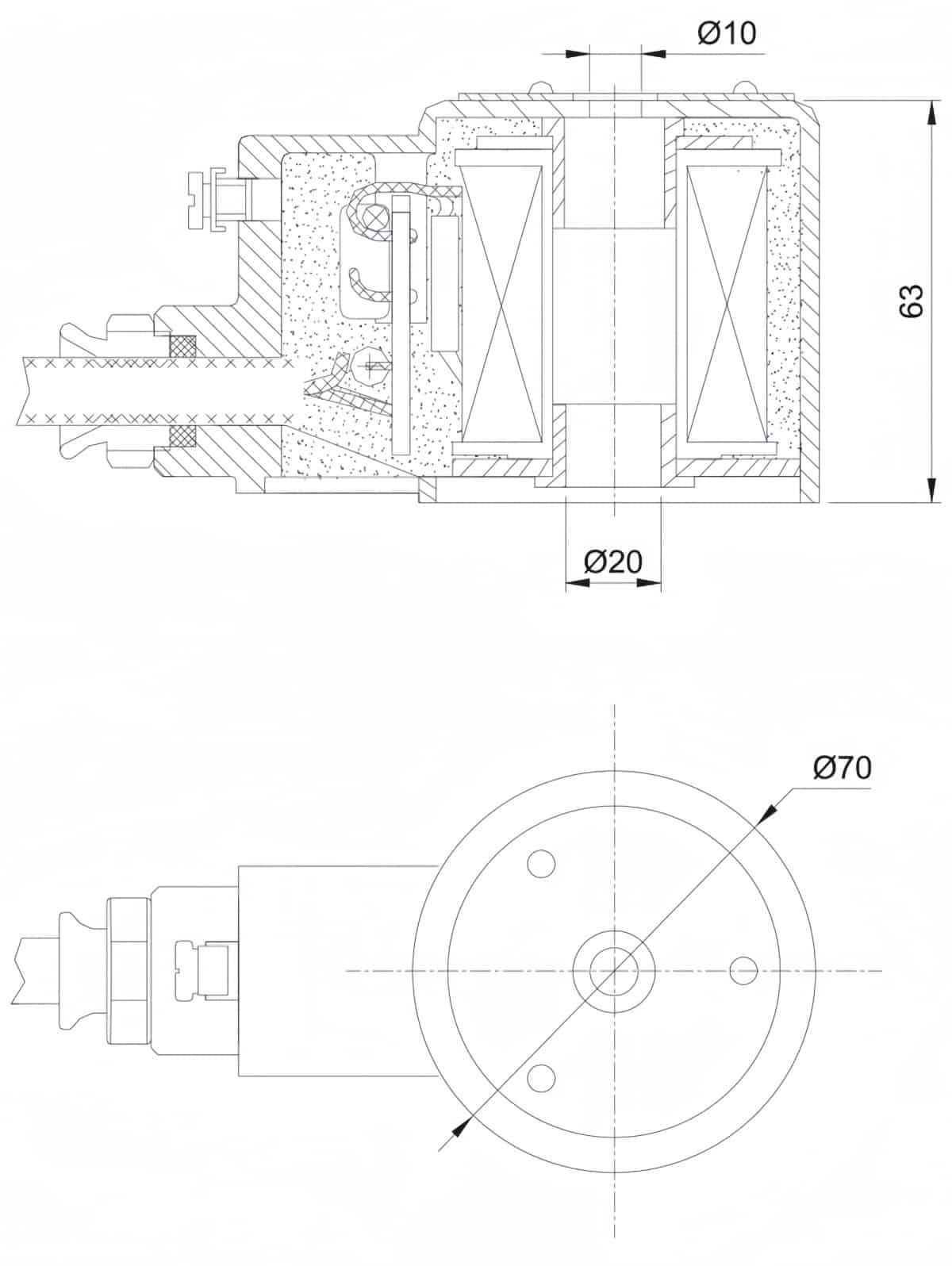

| Diameter | 20 mm | |
| Height | 64.5 mm | |
