ASCO dust collector pulse solenoid valve
Diaphragm Pulse Solenoid Valve

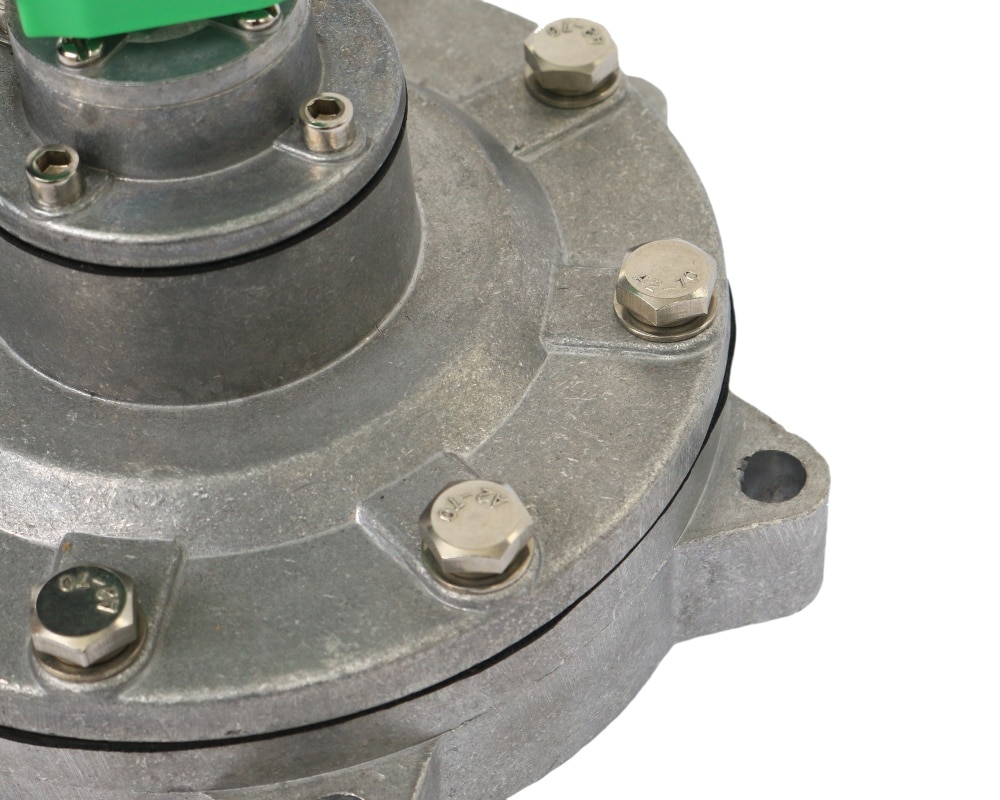

Embeded Dust Collector Diaphragm Solenoid Pulse Jet Valve

DMF-Y Series Dust collector Dust Cleaning Diaphragm Pulse Jet Solenoid Valve, aluminum alloy body material and stainless steel body materials, explosion-Proof Device for generating dust cleaning vibration airflow. Anti-Corrosion/Die Casting Dense/No Coating Peeling/No Burrs/No Cracks. More than 1 million working cycles, diaphragm replacement parts available.

Features:

1. DMF-Y Series Model: DMF-Y-76S 3"
2. Port Sizes: 3/8", 1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3"
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum Alloy, die-casting, stainless steel.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Air

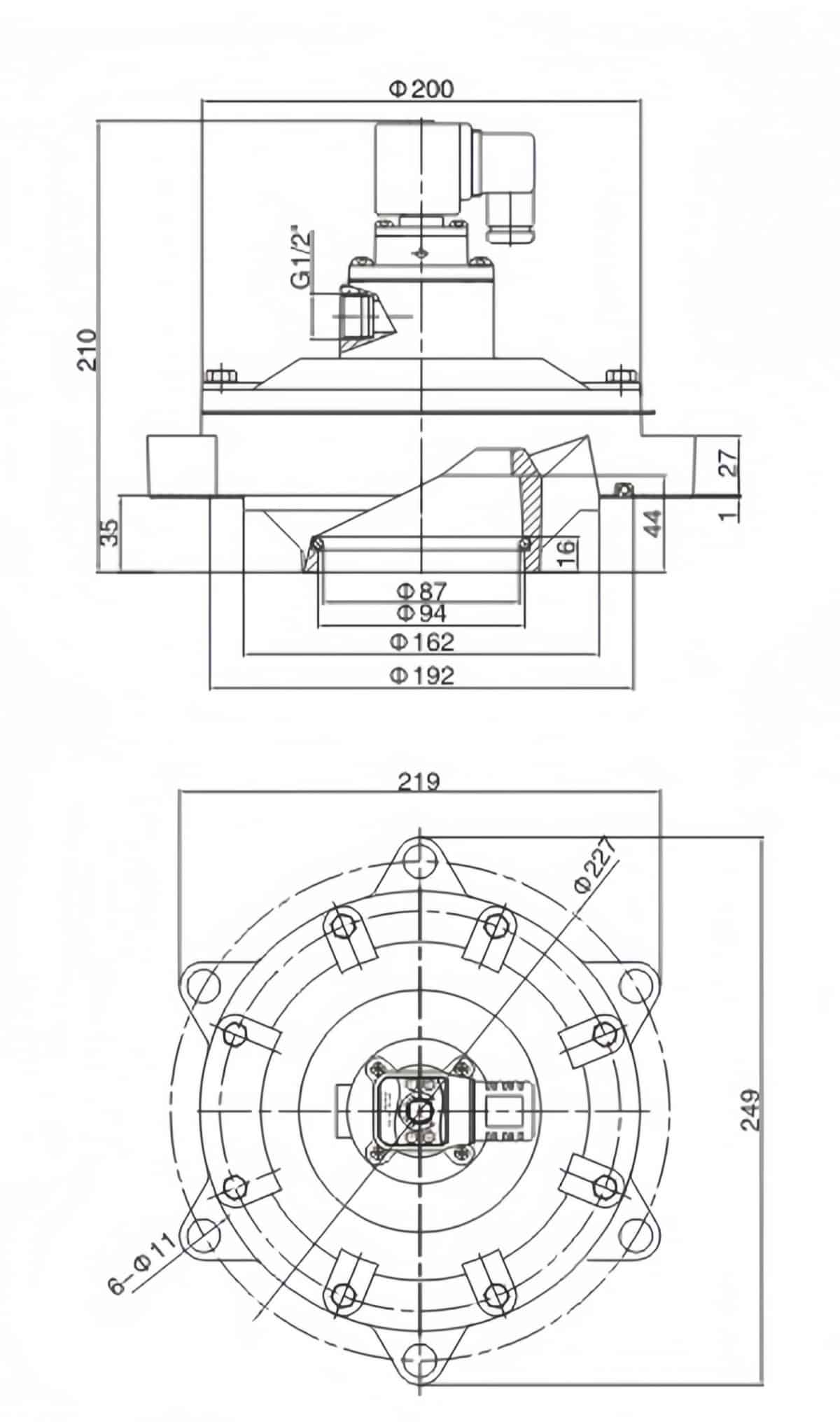

diaphragm pulse solenoid valve drawing
Model Code DMF-Y-25 DMF-Y-40S DMF-Y-50S DMF-Y-62S DMF-Y-76S DMF-Y-102S
Port Size 1'' 1 1/2'' 2'' 2 1/2'' 3'' 4''
Diaphragm 1 2
Diaphragm Material NBR, FKM
Body Material Aluminum Alloy
Pressure Range 0.1 to 0.8 MPa
Voltage 24VDC, 110VAC, 220VAC

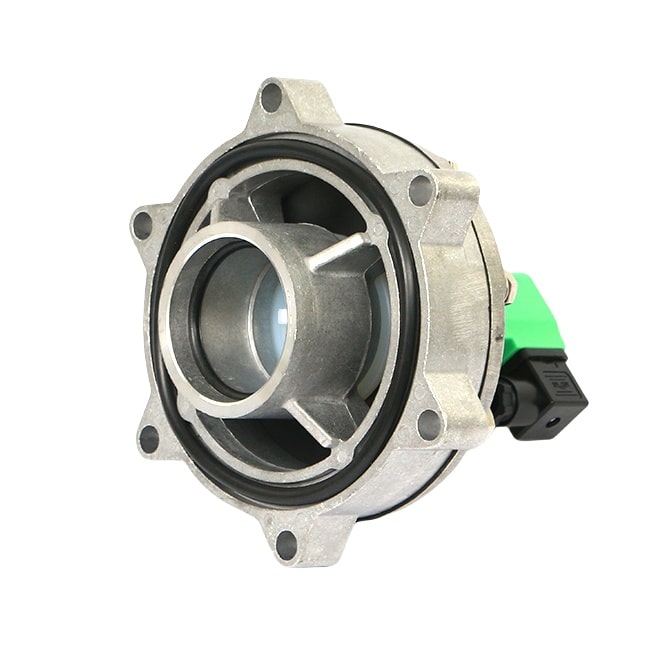

3 inch diaphragm pulse valve

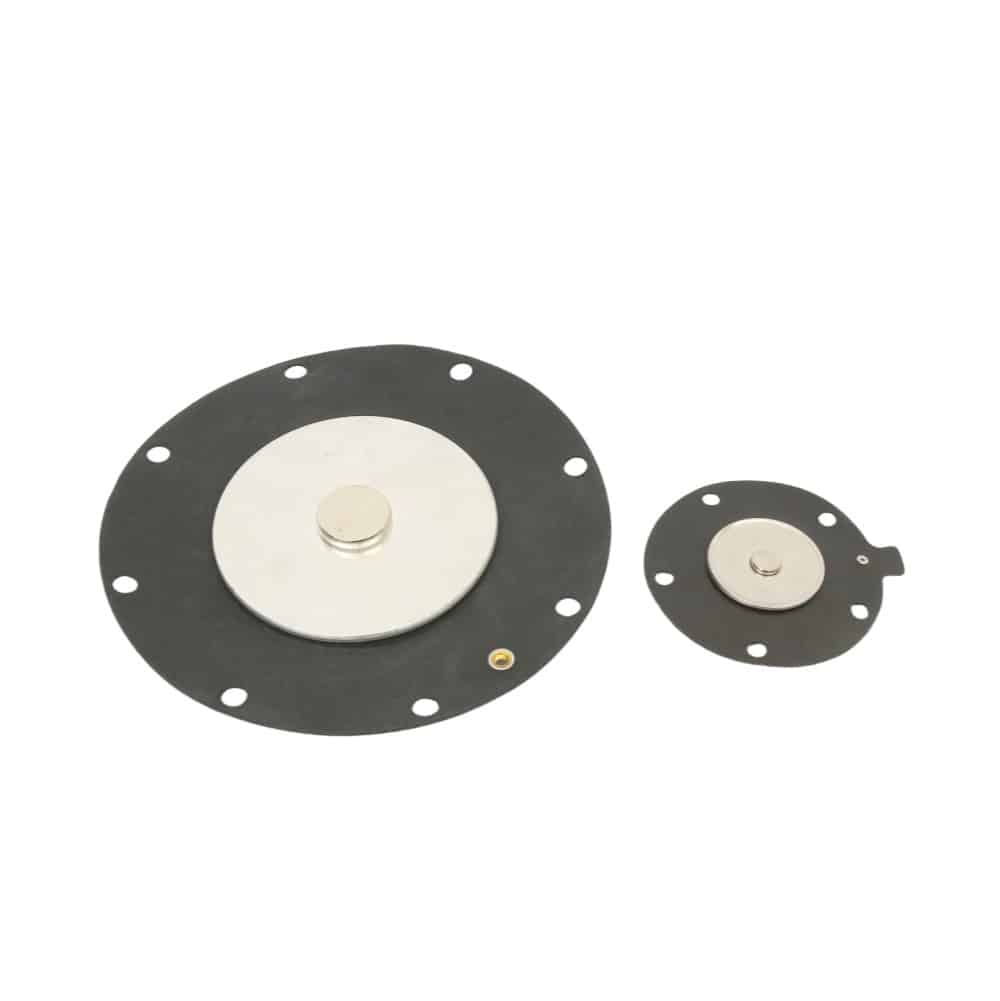

Pulse solenoid valve diaphragm
Model Diameter Diaphragms Flow Coefficient

(Kv/Cv)

 Spray
area(m^2)		 Inlet/outlet
size		 Weight
(kgs)
DMF-Y-25 25 1 28.82/33.63 8-10 G1 0.9
DMF-Y-40S 40 2 47.36/55.27 12-16 G1.5 2
DMF-Y-50S 50 2 62.09/72.46 18-28 G2 2.6
DMF-Y-62S 62 2 136.58/159.39 27-38 G2.5 3.2
DMF-Y-76S 76 2 165.84/193.54 37-65 G3 3.3
DMF-Y-20 20 1 17.55/20.48 3.5-6 G3/4 0.9
DMF-Y-25 25 1 26.16/30.53 8-10 G1 2
DMF-Y-40S 10 2 45.82/53.47 12-16 G1.5 2.6
DMF-Y-50S 50 2 61.24/71.47 18-28 G2 3.2
DMF-Y-62S 62 2 129.26/150.85 27-38 G2.5 3.3
DMF-Y-76S 76 2 159.95/186.66 37-65 G3 4
