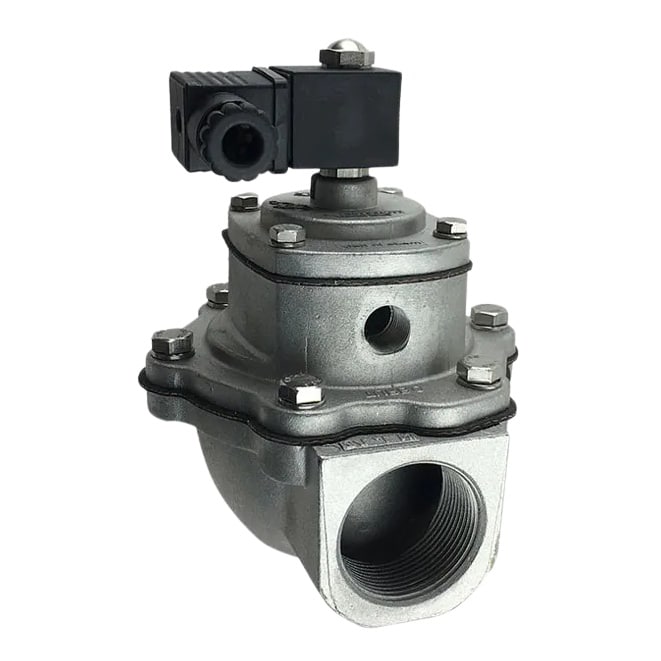

Turbo Type Diaphragm Pulse Jet Valve Solenoid Dust Collector Valve
Engineered for high-efficiency industrial dust extraction systems, the TURBO alternative Series is a premium pulse jet valve designed to deliver powerful, precise, and high-volume compressed air blasts. Whether you are managing heavy-duty baghouses, cartridge filters, or envelope filters, this advanced diaphragm solenoid valve ensures optimal filter cleaning performance while significantly minimizing air consumption.
Built to withstand demanding industrial environments, our solenoid dust collector valve features an ultra-fast opening time of just 0.023 to 0.027 seconds, creating a strong shockwave to dislodge dust effectively. Available with both standard and high-temperature diaphragm options, it guarantees reliable operation in extreme conditions with a proven service life of over 1,000,000 pulses without leakage.
Technical Specifications
- Size: 3/4″, 1″, 1-1/2″, 2″, 2-1/2″, 3″
- Material: Aluminum
- Media: Air
- Temperature: 0°C to +80°C / -30°C to +220°C
- Voltage: 24VDC, 220VAC, 110VAC, 12VDC
- Connection: Threaded
- Seal: NBR, EPDM, VITON
- Control Type: Normally Closed (NC)
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Orifice (mm) | Body Material | Operation | Coil Type | Thread Standard |
| SP | 40 | U2 | N | 40L | A | C | D | N |
| FP | 20: 3/4″ 25: 1″ 40: 1-1/2″ 55: 2″ 65: 2-1/2″ |
U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC |
N: NBR E: EPDM V: VITON |
20mm – 65mm | B: Brass A: Aluminum |
C: Normally Closed O: Normally Open |
D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof |
B: BSP G: G N: NPT |
Dimensions
| Model | G | A | B | C | D | E | F | H | I | K | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SP20 | 34″ | 52 | 89 | 20.5 | 74 | 122 | 20 | 20 | 42 | 26 | 0.5 |
| SP25 | 1″ | 52 | 89 | 20.5 | 74 | 122 | 20 | 20 | 42 | 26 | 0.45 |
| SP40 | 1-1/2″ | 71 | 132 | 30.5 | 136 | 184 | 21 | 35 | 61 | 69 | 1.5 |
| SP55 | 2″ | 114 | 198 | 40 | 190 | 222 | 46 | 45 | 92 | 76 | 3.45 |
| SP65 | 2-1/2″ | 117 | 201 | 48 | 190 | 222 | 47 | 50 | 92 | 76 | 3.35 |
Technical Specifications
| Working Pressure | 0.5 bar ~ 7.5 bar |
|---|---|
| Working Medium | Dry, oil-free, and clean compressed air |
| Working Temperature | Standard Diaphragm: -20°C ~ +80°C High-Temperature Diaphragm: -30°C ~ +200°C |
| Voltage | 24V / 110V / 220V AC, 24V DC |
| Voltage Fluctuation | ±10% |
| Coil Class | Class F |
| Coil Installation Angle | 360 deg |
| Control Type | Direct Acting |
| Opening Time | 0.023 ~ 0.027 seconds |
| Service Life | Diaphragm: 1,000,000 pulses without leakage |
| Numbers of Diaphragms | 3/4” to 1” Valves: Single diaphragm 1 1/2” to 4” Valves: Double diaphragm |
