A2W Series 2/2 Way Direct Acting Solenoid Valve For Gas Air LPG Water
The A2W Series solenoid valve is a reliable and cost-effective general-purpose valve designed for controlling air, water, oil, LPG, and gas.
Available in both direct-acting and pilot-operated designs, it offers stable performance, flexible installation, and a wide range of port sizes from 1/8″ to 1″.
With multiple sealing material options including NBR, EPDM and FKM (Viton), the A2W series is suitable for various industrial applications requiring dependable on/off control.
Technical Specifications
- Size: 1/8″ – 1″
- Material: Brass
- Media: Air, Water, Oil, Gas, LPG
- Temperature: 0°C to +80°C
- Voltage: 24VDC, 220VAC, 110VAC, 12VDC
- Connection: Threaded
- Seal: NBR, EPDM, VITON
- Control Type: Normally Closed (NC)
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Orifice (mm) | Body Material | Operation | Coil Type | Thread Standard |
| A2W030 | 08 | U2 | N | 3L | B | C | D | N |
| 030: 3.0MM 050: 5.0 MM 150: 15MM |
06: 1/8″ 08: 1/4″ 10: 3/8″ 15: 1/2″ 20: 3/4″ 25: 1″ |
U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC | N: NBR E: EPDM V: VITON | 3mm – 25mm | B: Brass | C: Normally Closed O: Normally Open | D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof | B: BSP G: G N: NPT |
Dimensions

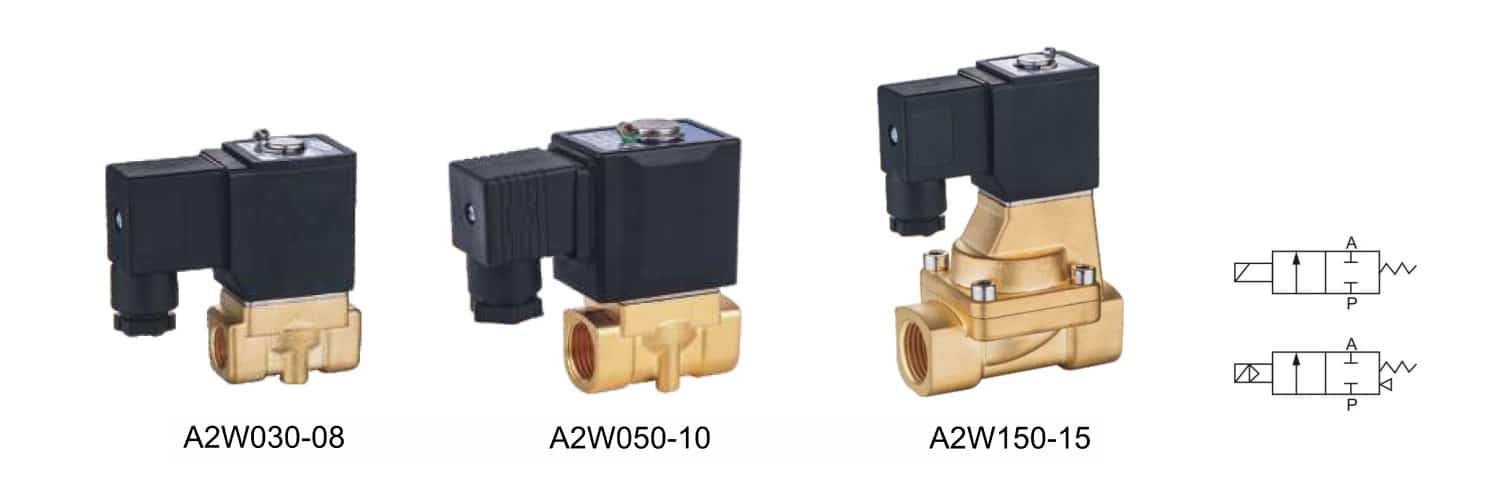

| Model | F(PT) | A | B | C | D | L |
|---|---|---|---|---|---|---|
| A2W030-06 | 1/8″ | 60 | 25 | 70 | 41 | 16 |
| A2W030-08 | 1/4″ | 60 | 25 | 70 | 41 | 16 |
| A2W050-10 | 3/8″ | 72 | 31 | 85 | 52 | 23 |
| A2W050-15 | 1/2″ | 72 | 31 | 85 | 52 | 23 |
| A2W150-15 | 1/2″ | 92 | 46 | 105 | 70 | / |
| A2W200-20 | 3/4″ | 96 | 53 | 113 | 82 | / |
| A2W250-25 | 1″ | 102 | 59 | 122 | 92 | / |
Technical Specifications
| Model | A2W030-06(08) | A2W050-10(15) | A2W150-15 | A2W200-20 | A2W250-25 |
|---|---|---|---|---|---|
| Working Medium | Air,Water,Oil,Gas | ||||
| Motion Pattern | Direct-acting | Pilot-operated | |||
| Type | Normal Close Type | ||||
| Orifice (mm) | 3 | 5 | 15 | 20 | 25 |
| CV Factor | 0.33 | 0.83 | 5.5 | 9.5 | 12.5 |
| Joint Pipe Bore | 1/8″(1/4″) | 3/8″(1/2″) | 1/2″ | 3/4″ | 1″ |
| Operation Fluid Viscosity | 20 CST (below) | ||||
| Working Pressure (Bar) | 0~10 | 0.5~10 | |||
| Max.Pressure Resistance (Bar) | 10 | 15 | |||
| Operating Temperature Range | -5~80 deg C | ||||
| Voltage Range | ±10% | ||||
| Material of Body | Brass | ||||
| Material of Oil Seal | NBR, EPDM, VITON | ||||
| Weight (KG) | 0.315(0.308) | 0.64 | 0.685 | 0.96 | 1.235 |
