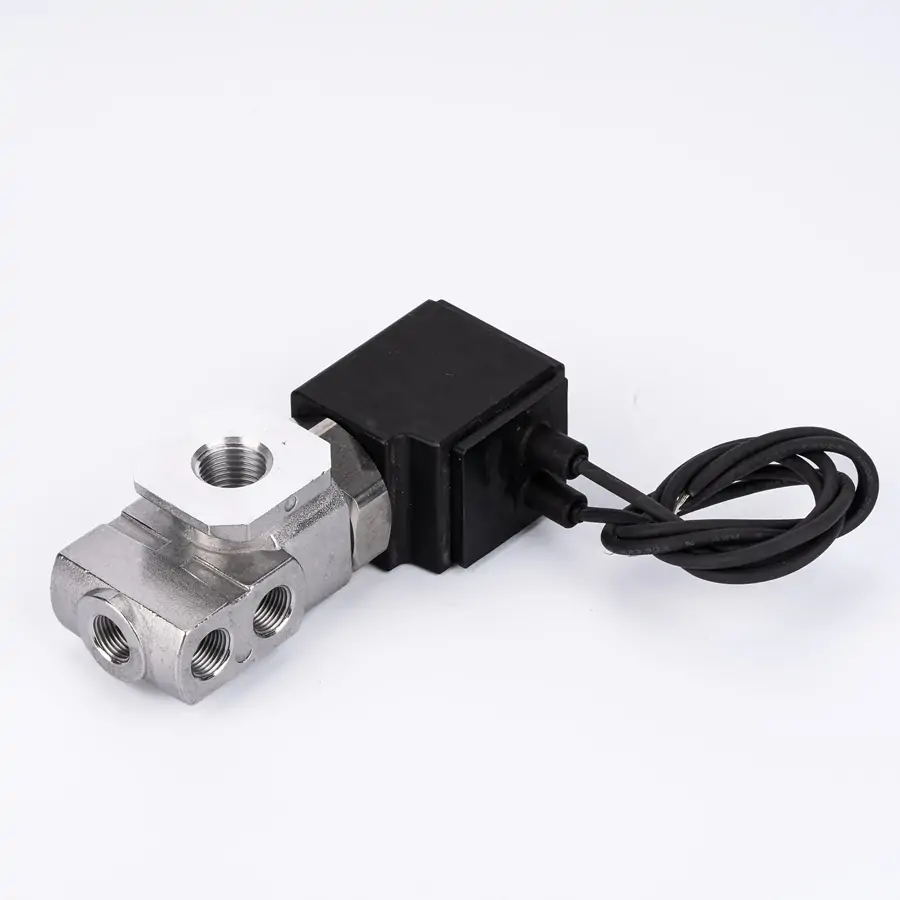

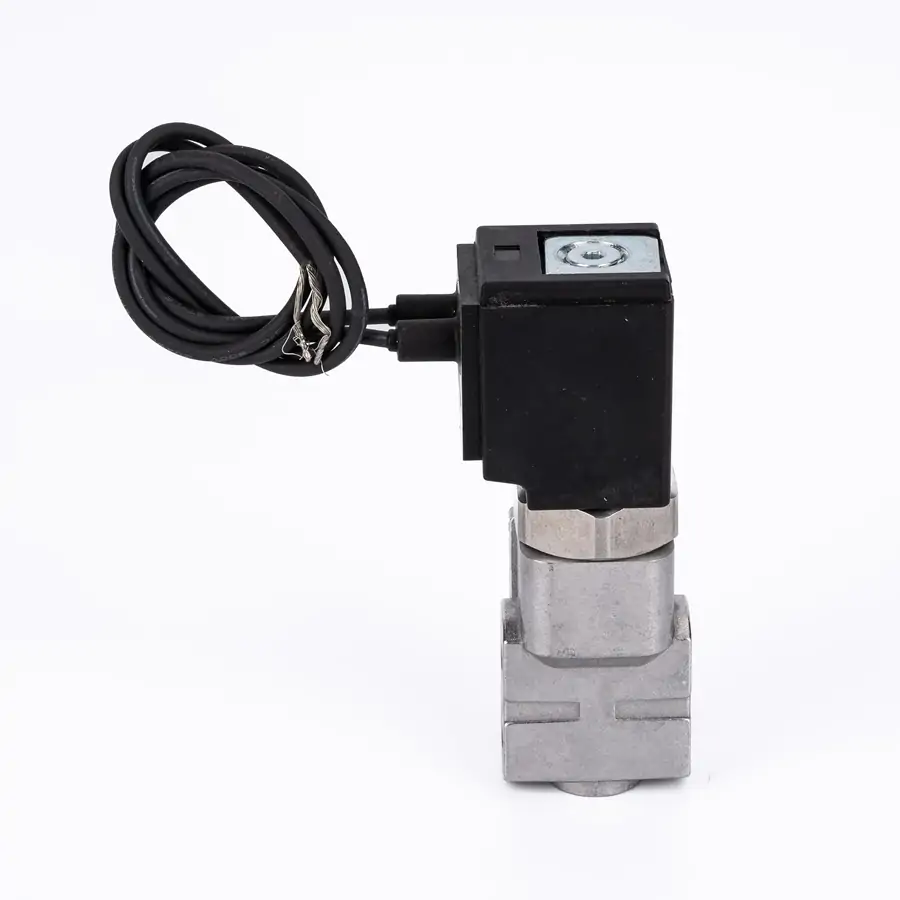

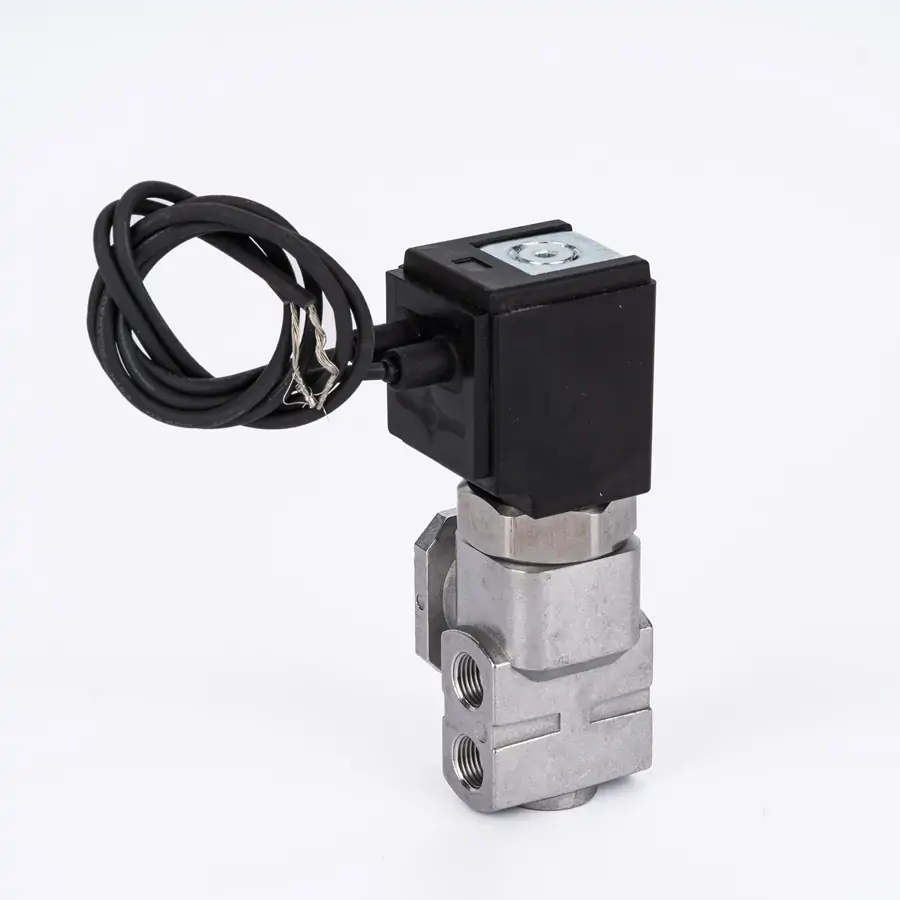

Textile Air Jet Loom Part Adjustable Solenoid Valve
AT3220D Series Solenoid Valve for Air Jet Loom Textile Machine, it can be used in the field of textile industry, for many kinds of textile machines, including weaving machine, screen machine, sorting machine, etc.
Features:
1. In the vacuum system, negative pressure, zero pressure it can work normally.
2. Maximum working frequency can reach 100Hz, response time is less than 5ms, it can meet the high working frequency environment.
3. Oriffice 8mm, joint size G3/8, Larger oriffice and higher flow than traditional bullet valves.
4. It can replace bullet valves for applications in air jet weaving machines, optical sorting machines, screening machines, sorting machines, round-cutting machines, and semiconductor chip industries.
Body material: Aluminum Alloy
Pressure: 0~0.7 MPa
Fluid Media: Water / Air
Series: 1/8", 1/4", 3/8"
Model | 3/8" | 1/8" | 1/4"/1/8" |
Working medium | Clean air | ||
Acting type | Direct acting | ||
Control type | Normal Close | ||
Working pressure | 0~0.6MPa | 0~0.7MPa | 0~0.6MPa |
Max. Working Pressure | 0.8MPa | ||
Working temperature | -5 to 70ºC | ||
Response time | ≤5ms | ≤4.5ms | ≤5ms |
Max. Working frequency | 100Hz | ||
Orifice | 8mm | 7.5mm | 8mm |
Joint size | G3/8 | G1/8 | G1/4, G1/8 |
Lubrication | No | ||
Heat resistant  Grade | H | ||
Protective class | IP65 | ||
Standard voltage | DC24V Â DC48V | ||
Voltage range | ±10% | ||
Valve body | Aluminum | ||
Seal material | TPU |
