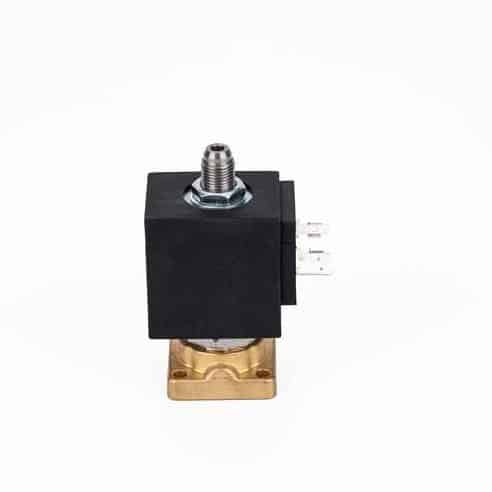

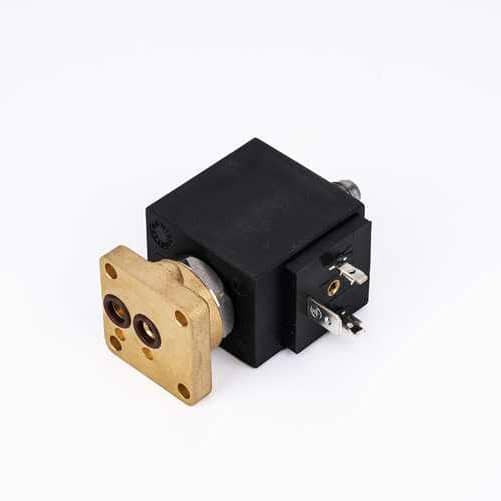

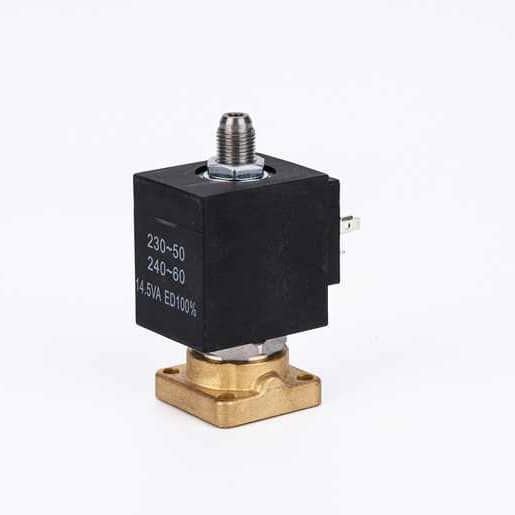

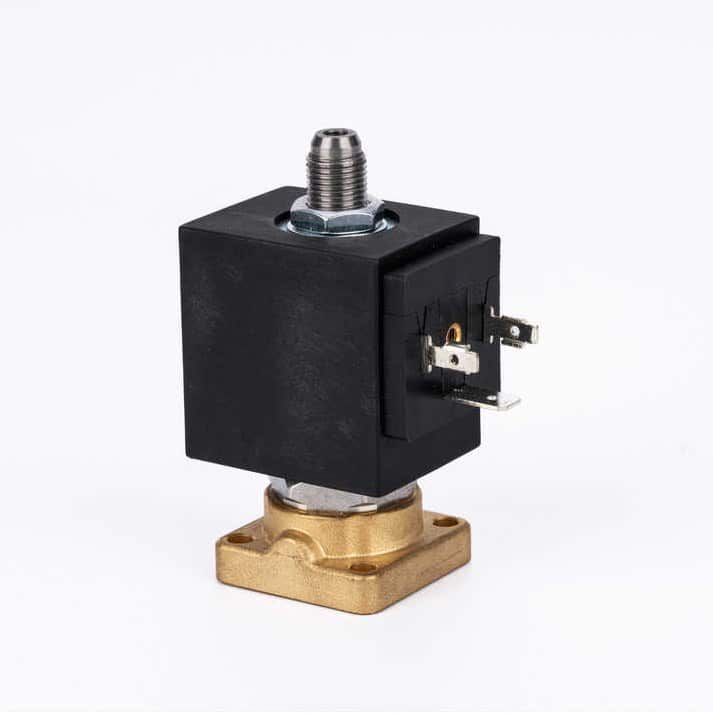

Coffee Machine 3 Way Solenoid Valve
ODE Type Espresso Coffee Machine 3 Way Brass Solenoid Valve 31A1AR10 31A1AR15 31A1AR20 31A1AR25 31A1AV10 31A1AV15 31A1AV20 31A1AV25 24VDC 110VAC 220VAC, up to 80℃/160℃, brass material.
Features:
1. 3-Way Solenoid valve
2. Direct acting
3. General purpose, especially for coffee machine.
4. Hot water, Steam.
2. Direct acting
3. General purpose, especially for coffee machine.
4. Hot water, Steam.
5. Normally closed.
6. Water flow rate adjustable.
Body material: Brass
Pressure: 0-15 bar, 150 PSI
Fluid Media: Water
Series: 31A1AR10 31A1AR15 31A1AR20 31A1AR25 31A1AV10 31A1AV15 31A1AV20 31A1AV25
|
Port Size |
Female G 1/8” |
| Body Material | Brass |
| Seal ring material |
NBR, EPDM ,Silicon Gel, Viton etc. |
| Max Media Temperature | 80℃/160℃ |
| Voltage available | DC 12V; DC 24V; 12VAC; 24VAC;110/120VAC;220/230V AC |
| Inner Orifice |
2-3mm |
| work Pressure | 0-10 bar |
| Dimension(L×W×H) | 45×22.5×54.5mm |
