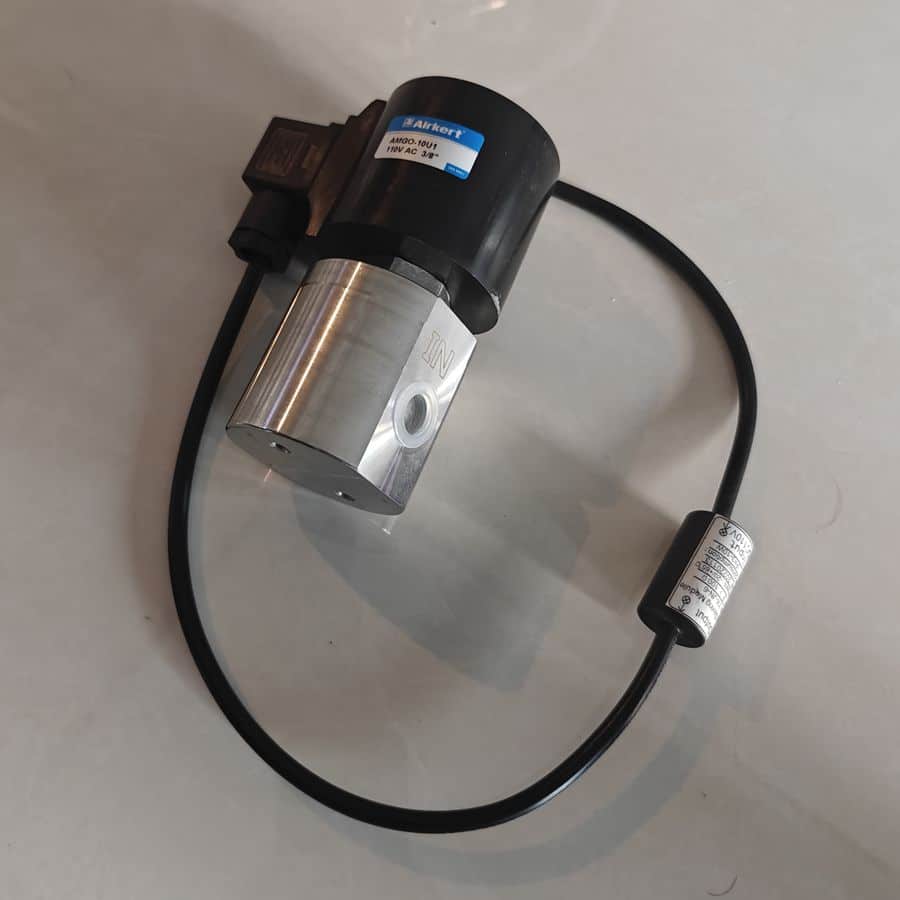

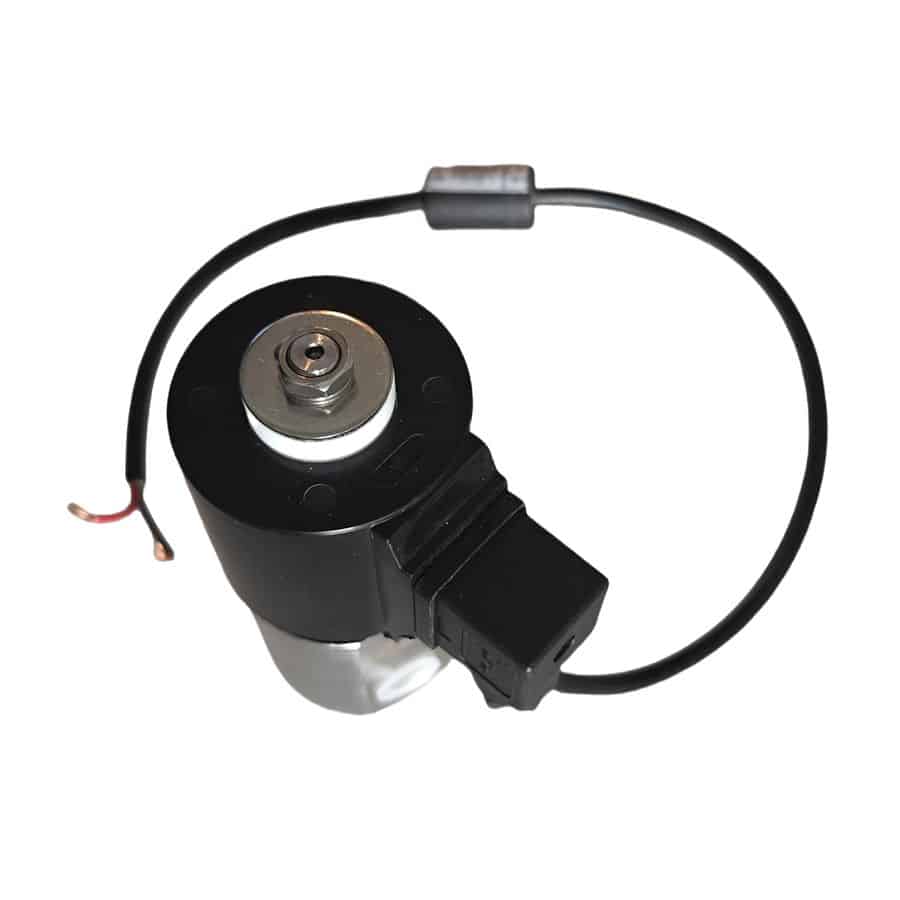

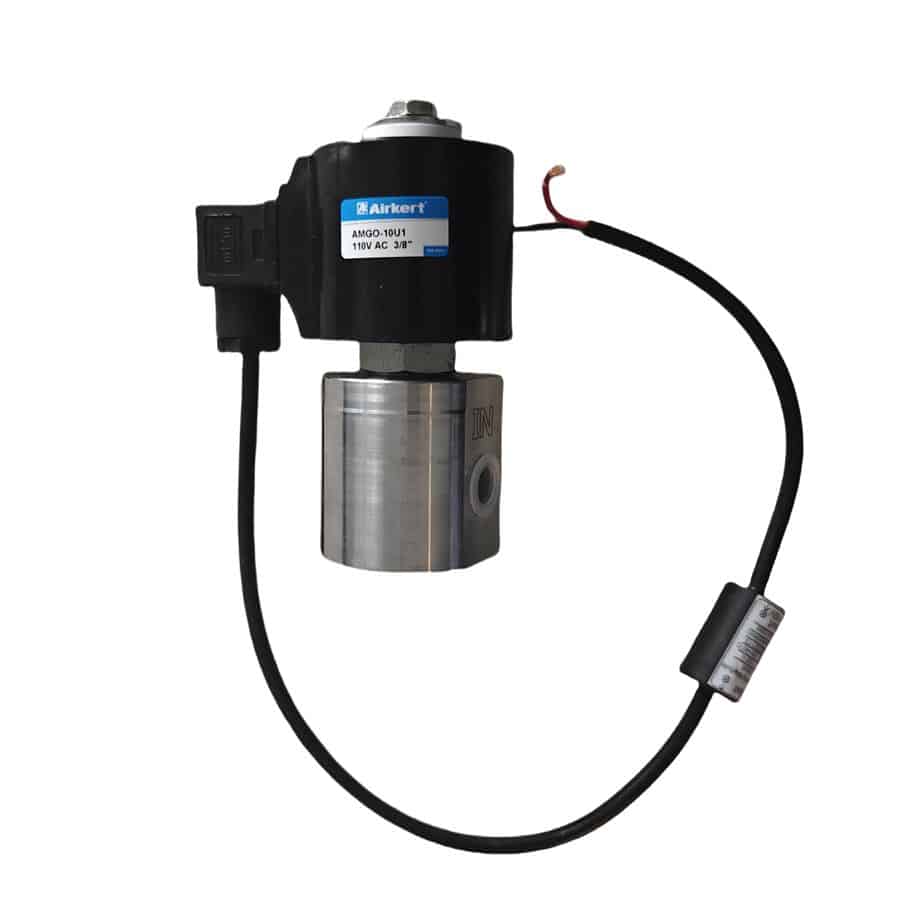

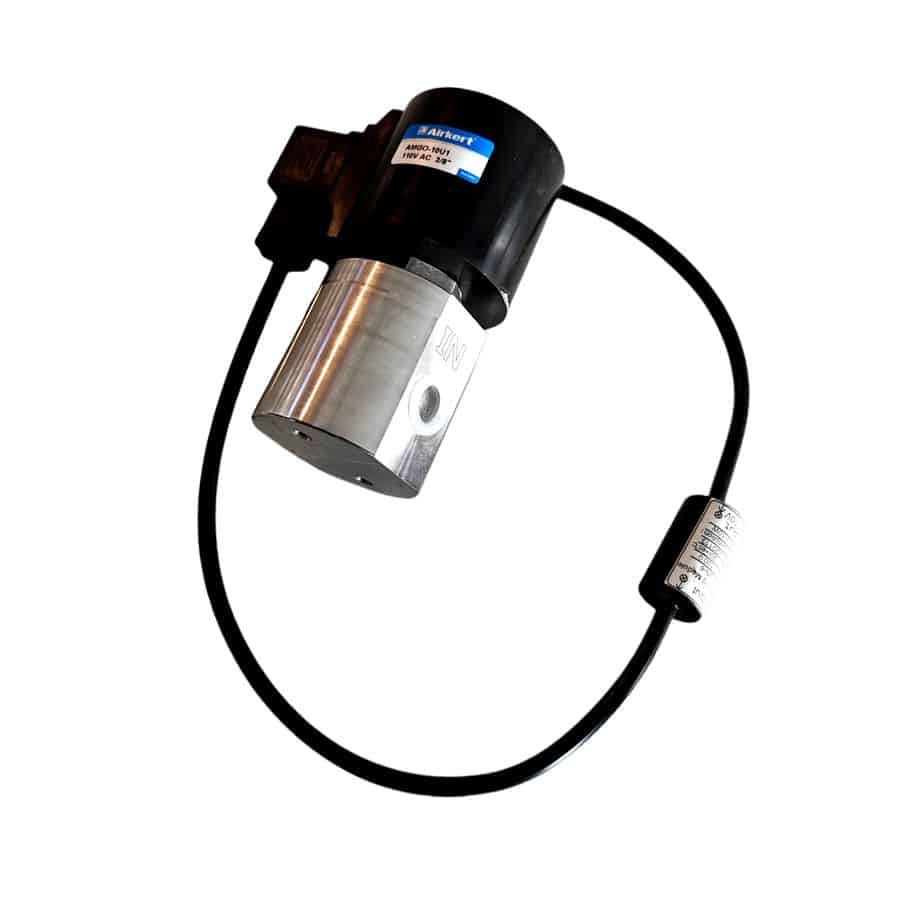

SS304 SS316 Stainless Steel High Pressure Solenoid Valve
AMG Series 300 bar 500 bar / 30 MPa 50 MPa Ultra-high pressure N/O N/C solenoid valves are mainly used in hydraulic systems, petrochemicals, metallurgy, spray humidification, aerospace, military industry, nuclear industry, shipbuilding industry, electricity, energy, urban heating, steam supply, water supply, and other fields. They realize the automation and remote control of ultra-high pressure systems.
Features:
1. 2/2 Normally Open, Normally Closed. N/OÂ N/C Type
2. Port Sizes: 1/4", 3/8", 1/2", 3/4", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SS316
5. Seal options: PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/4", 3/8", 1/2", 3/4", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SS316
5. Seal options: PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
8. Temperature: -5 - 150 c
Pressure: 300 bar, 4500 PSI, 30 MPa 500 bar, 7000 PSI, 50 MPa
Fluid Media: Air, Water, Liquid Oil.
Fluid Media: Air, Water, Liquid Oil.
|
DN Bore
|
DN10~50mm, 1/4, 3/8", 1/2", 3/4", 1"
|
|
Connection type
|
G, BSP, NPT(other options : flange,welding ..can be customized)
|
|
Work principle
|
Pilot piston mode
|
|
Body material
|
Stainless 304, optional SS316 or SS316L
|
|
Seal material
|
NBR, FKM PTFE
|
|
Suitable media
|
Liquid, gas, oil, etc.
|
|
Media temperature
|
1.-20℃~80℃ 2.-20℃~150℃ 3.100℃~200℃ 4.120℃~250℃
|
|
Ambient temperature
|
Standard：-20~150℃
|
|
Install method
|
Horizontal installation coil vertically upward
|
|
Protection class
|
IP65
|
Model Selection notice:
1. Ensure the arrow of the valve is consistent with the flow of media For 2-way flow choose the electric valve or a pneumatic valve
2. Install a Filter screen in front of the valve to avoid particles
3. Proper length for DC power line important for normal operation
4. Design control project, Normal close valve as a priority.
5. Consult us for Certain Voltage or special function
