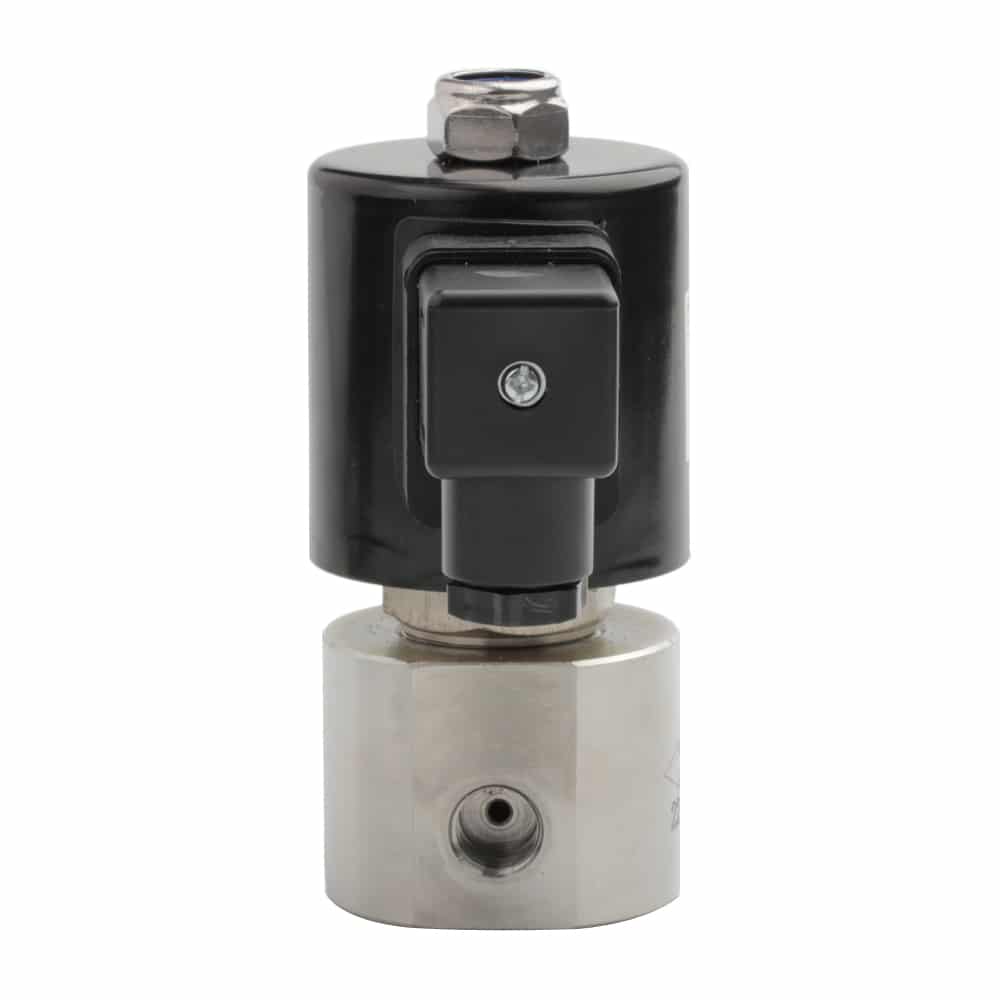

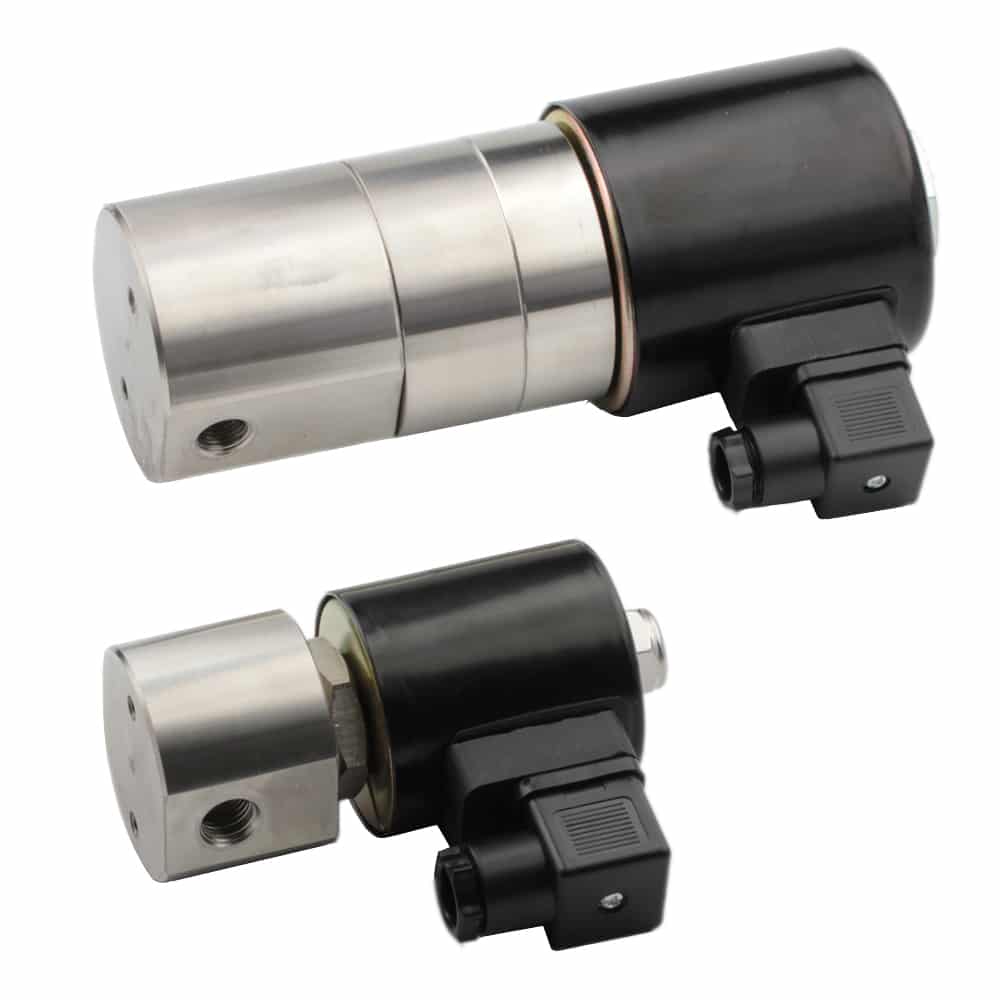

500 Bar 50MPa N/C N/O Stainless Steel Solenoid Valve
SMG Series 500 bar stainless steel direct acting super high pressure solenoid valve, 50 MPa super high pressure resistance, normally open, normally closed, N/O and N/C. High-pressure and high-temperature resistant. Being used to control the extreme high pressure applications, such as washing machine and dust cleaning system.
Features:
1. Stainless Steel High Pressure
2. Port Sizes: 1/4", 3/8", 1/2", 3/4", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Brass, SS304, SS316
5. Seal options: NBR, EPDM, FKM, PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Normally Open, Normally Closed
2. Port Sizes: 1/4", 3/8", 1/2", 3/4", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Brass, SS304, SS316
5. Seal options: NBR, EPDM, FKM, PTFE
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC.
7. Normally Open, Normally Closed
Pressure: 500 bar, 7000 PSI, 50 MPa
Fluid Media: Air, Water, Liquid Oil.
Fluid Media: Air, Water, Liquid Oil.

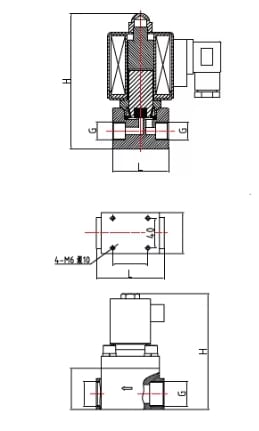

| Model | L | H | W | G |
|---|---|---|---|---|
| SMG-1 | 48 | 160 | 35 | 1/8" |
| SMG-10 | 70 | 155 | 40 | 3/8" |
| SMG-15 | 80 | 185 | 53 | 1/2" |
| SMG-20 | 95 | 220 | 68 | 3/4" |
| SMG-25 | 95 | 190 | 62 | 1" |
| SMG-40 | 127 | 215 | 78 | 1-1/2" |
| SMG-50 | 180 | 270 | 104 | 2" |
- High-Pressure Capability: The SMG 500 bar solenoid valve is designed to handle pressures up to 800 bar, making it suitable for demanding applications in various industries, including oil, water, and general use.
- Durable Construction: The valve features a stainless steel body and PTFE seal, ensuring a long-lasting and corrosion-resistant performance.
- Versatile Power Supply: The valve can be powered by a range of voltages, including DC 12V, DC 24V, DC 36V, AC 36V, AC 110V, AC 220V, and AC 380V, catering to various user requirements.
- Customization Options: As an OEM supplier, AIRKERT offers customization support to meet specific user needs, ensuring a seamless integration with existing systems.
- Wide Application: The valve is suitable for various media, including water, oil, and air, making it a versatile solution for different industries and applications, as requested by our valued customer.
