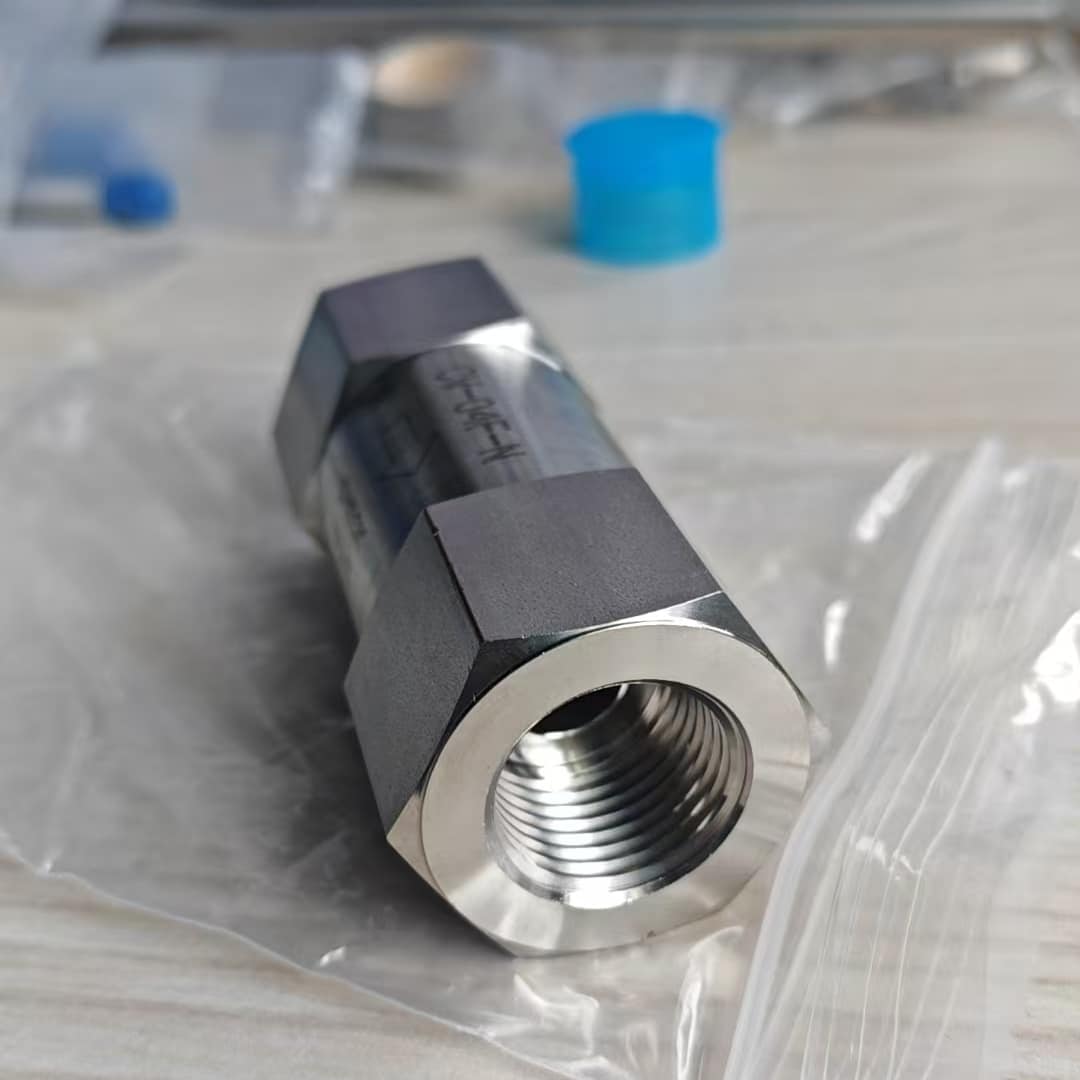

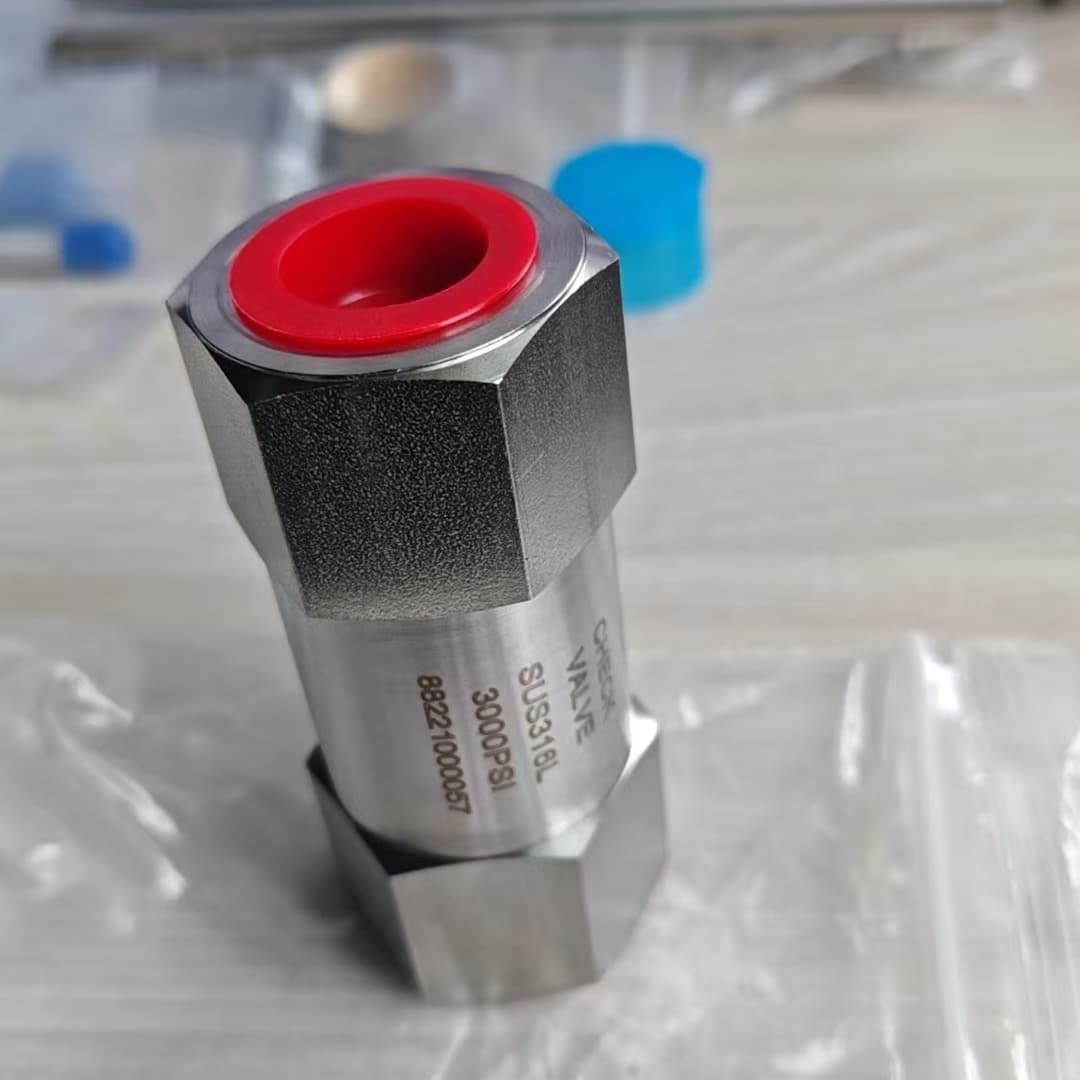

SS316 Stainless Steel 200 Bar 3000 PSI High Pressure Check Valve
The stainless steel check valve supports high-pressure applications up to 200 bar 3000 PSI, suitable for air, water, oil, steam, etc. Processed by orbital welding technology, it ensures a brighter surface finish, superior weld quality, and precise sealing performance.

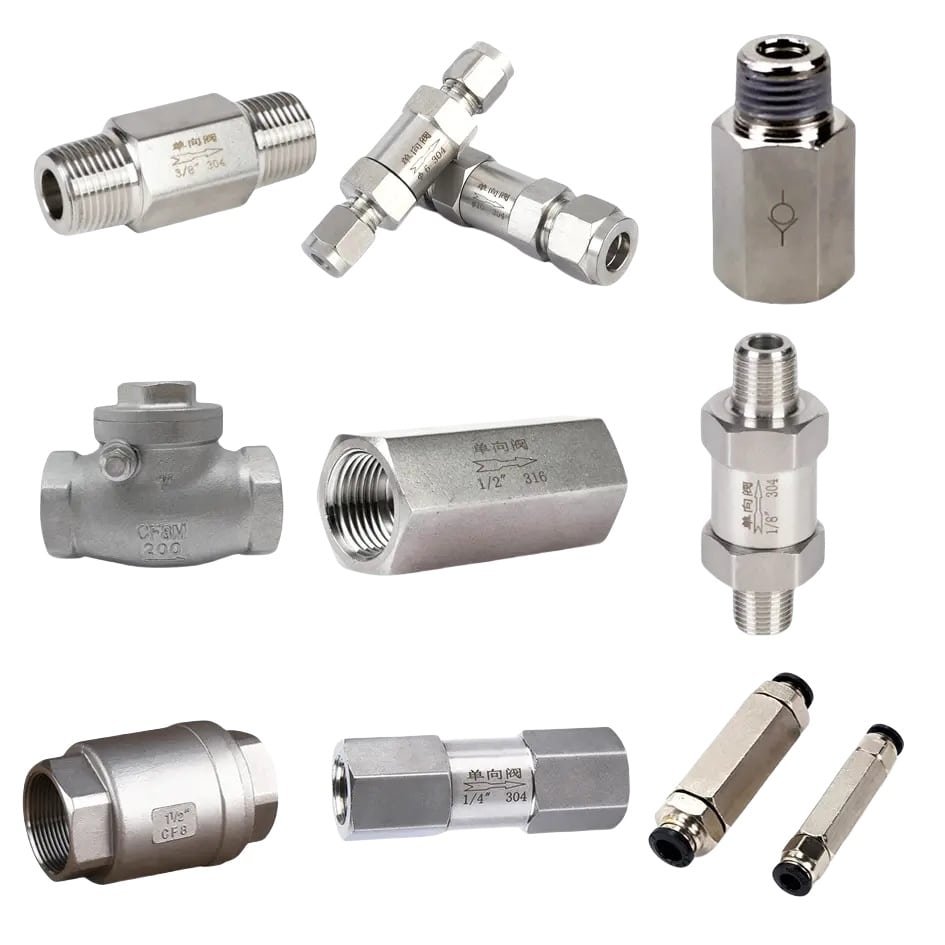

The check valve has various end connection ways, male / female threaded connection, welded connection, compression fitting connection, etc. SUS316 Stainless Steel return spring and PTFE / PEEK / VITON sealing materials make the check valve good performance.
Body material: SS304 SUS304 SS316 SUS316
Pressure: 200 Bar / 3000 PSI
Max Pressure: 40 MPa
Pipe size:1/4”-1”
Fluid Media: Compressed air, Liquid, Oil
Model: CV

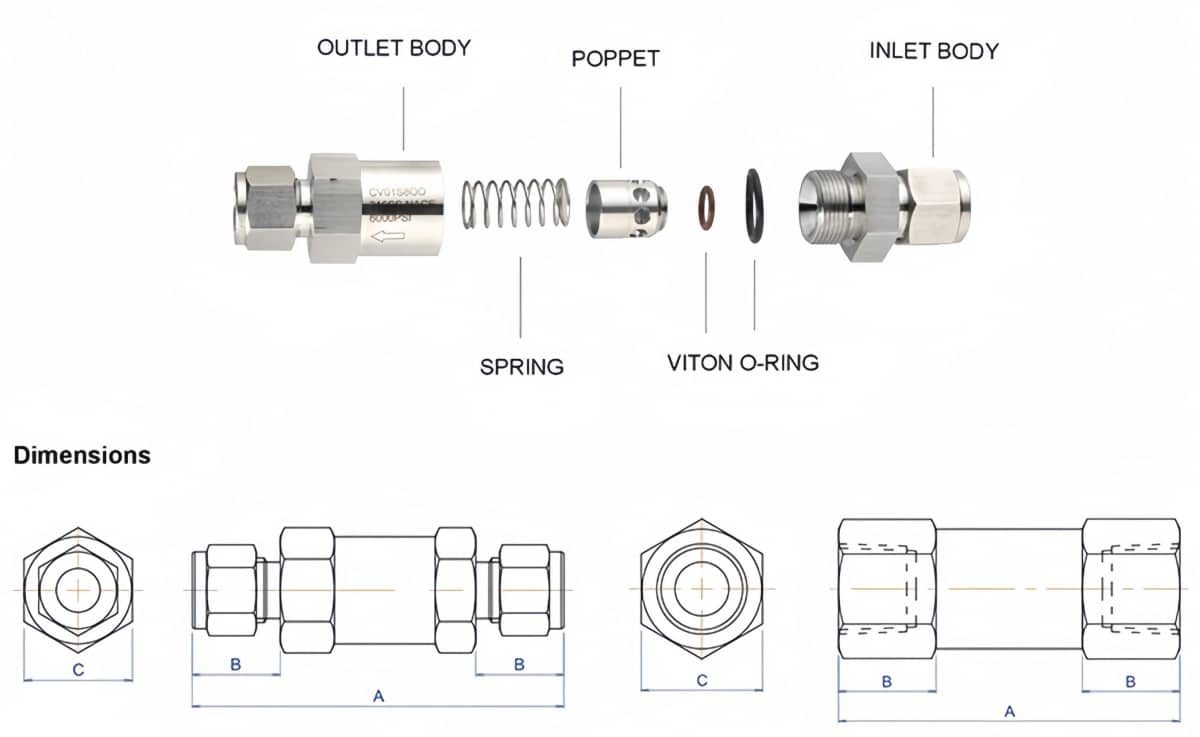

| Ordering No. | End Connection | Dimensions(mm) | |||
|---|---|---|---|---|---|
| Inlet | Outlet | A | B | C | |
| CV01S2FF | 1/8"NPT Female | 1/8"NPT Female | 55 | 14 | 17 |
| CV01S4FF | 1/4"NPT Female | 1/4"NPT Female | 62 | 16 | 22 |
| CV01S6FF | 3/8"NPT Female | 3/8"NPT Female | 72 | 20 | 24 |
| CV01S8FF | 1/2"NPT Female | 1/2"NPT Female | 80.5 | 23 | 28.58 |
| CV01S12FF | 3/4"NPT Female | 3/4"NPT Female | 85 | 22 | 41 |
| CV01S16FF | 1"NPT Female | 1"NPT Female | 97 | 23 | 47.6 |
| CV01S2OD | 1/8”O.D. | 1/8”O.D. | 65.5 | 15.5 | 17 |
| CV01S4OD | 1/4”O.D. | 1/4”O.D. | 73 | 17.5 | 20.63 |
| CV01S6OD | 3/8”O.D. | 3/8”O.D. | 80.5 | 19.5 | 24 |
| CV01S8OD | 1/2”O.D. | 1/2”O.D. | 90.5 | 22 | 28.58 |
| CV01SM6OD | 6mm O.D. | 6mm O.D. | 73 | 17.5 | 20.63 |
| CV01SM12OD | 12mm O.D. | 12mm O.D. | 90.5 | 22 | 28.58 |
