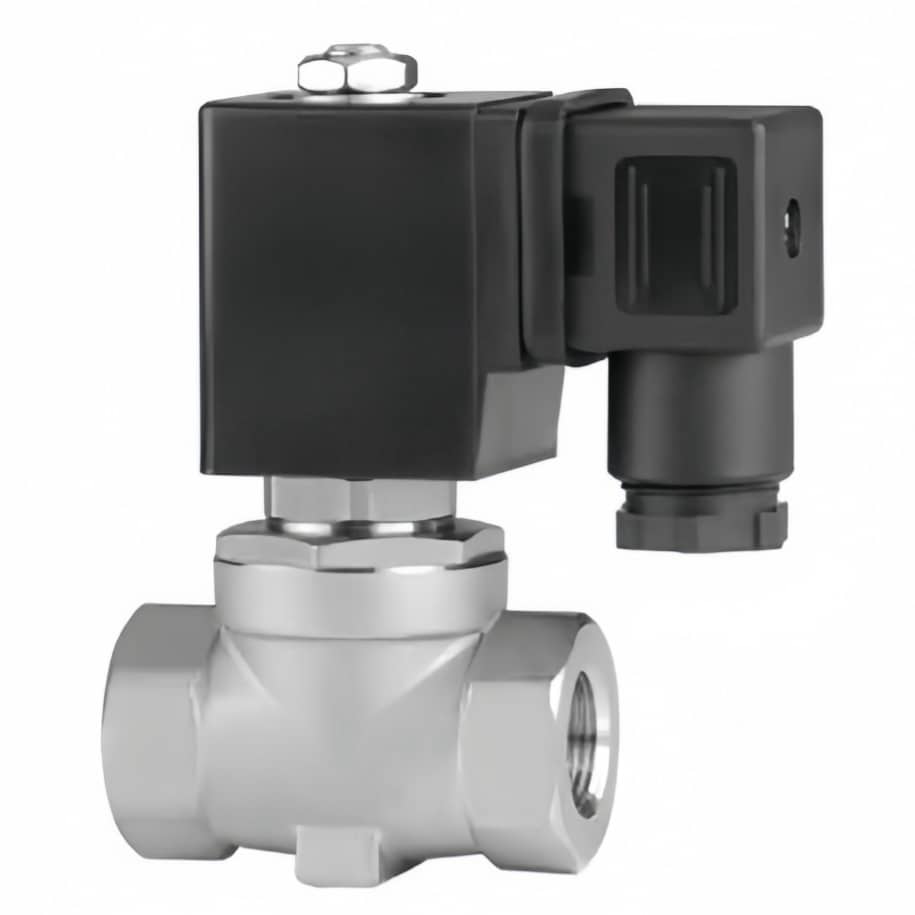

stainless steel SLP solenoid valve

SLP Small size solenoid valve

SLP Series small size solenoid valve, 2/2 way normally closed, brass and stainless steel body materials optional. Compact valve size, large flow rate, widely general use. Mounts in any positions, best position is vertical installation, upright position.

Features:

1. SLP 2/2 Way Small Size
2. Port Sizes: 1/8", 1/4", 3/8", 1/2"
3. Thread Standard: G, BSP, NPT
4. Materials: Brass, Stainless Steel
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-16 bar, 250 PSI
Fluid Media: Air, Water, Gas, Liquid Oil.
Port Size Orifice
mm		 CV
Factor		 Working Pressure (bar) Max.

Temp.
℃

 Consumption
Min Max.
Air

Gas

 Water

Hot water

 Light oil VA W
AC
220V		 DC
24V
AC DC AC DC AC DC
1/4" 10.5 1.47 0 16 10 16 10 13 10 80 22 13
10.5 1.47 0 16 10 16 10 130 22 13
10.5 1.47 0 16 10 16 10 13 10 120 22 13
3/8" 10.5 1.68 0 16 10 16 10 13 10 80 22 13
10.5 1.68 0 16 10 16 10 130 22 13
10.5 1.68 0 16 10 16 10 13 10 120 22 13
1/2" 10.5 1.75 0 16 10 16 10 13 10 80 22 13
10.5 1.75 0 16 10 16 10 130 22 13
10.5 1.75 0 16 10 16 10 13 10 120 22 13
