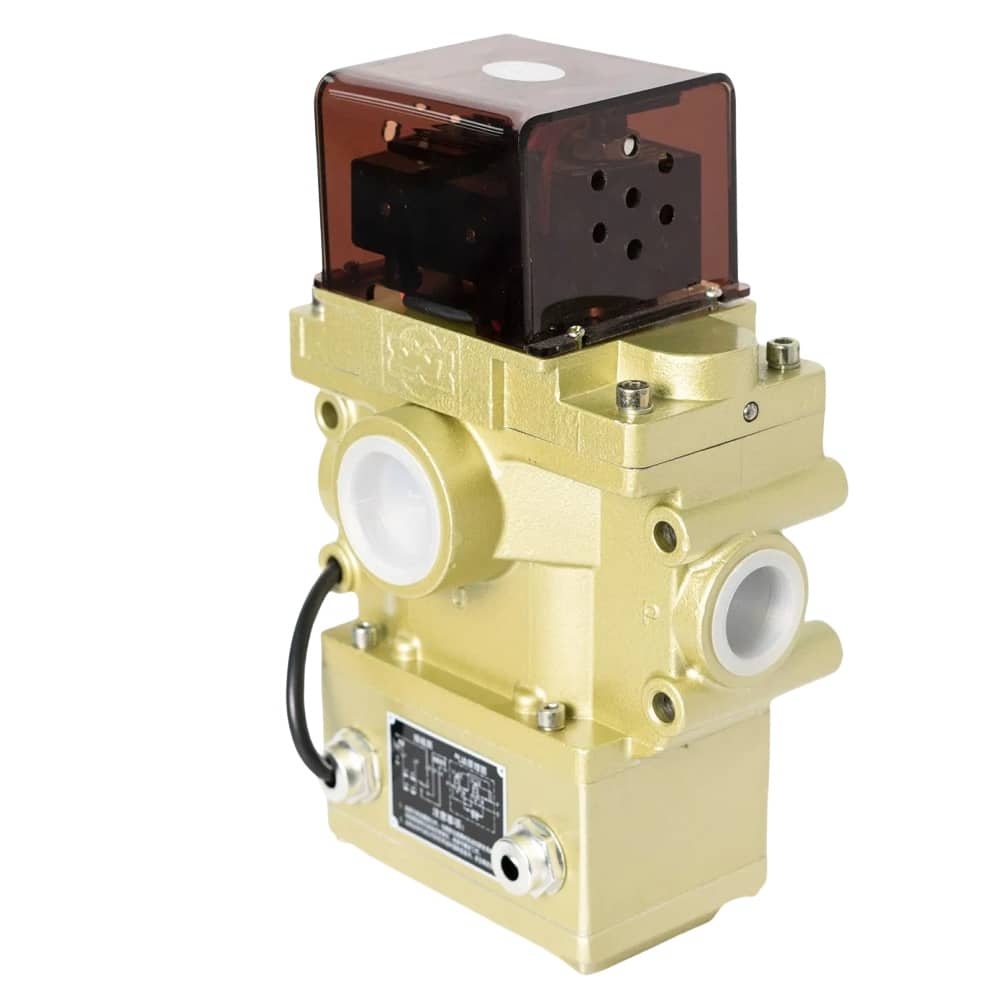

K23JSD-L15 Punch Press Solenoid Valve
K23JSD Series aluminum alloy dual coils solenoid valves, for punch press machine. Safety double relief valves. Controlling the actions of the brakes and cluthes of the punch press, pneumatic punch safety valve. Greatly improve the accuracy and safety of the punch press. Superior aluminum alloy valve body, smooth finishing, durable use.
Features:

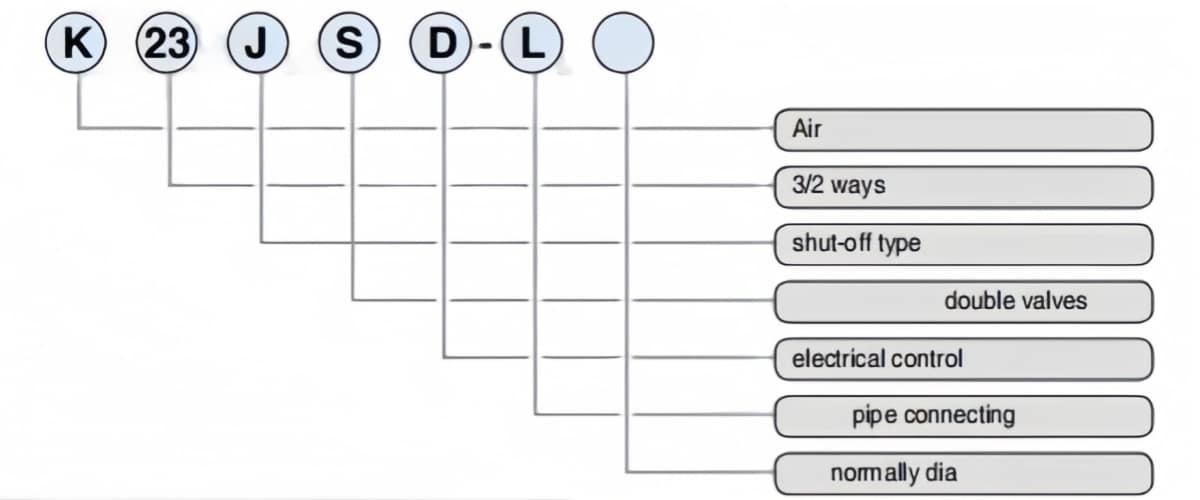

1. K23JSD-L15 K23JSD-L25 3/2 Way Solenoid Valve
2. Port Sizes: 1/2", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum Alloy, die-casting.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
2. Port Sizes: 1/2", 1"
3. Thread Standard: G, BSP, NPT
4. Materials: Aluminum Alloy, die-casting.
5. Seal options: NBR, EPDM, and FKM.
6. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC.
7. Quality, solenoid valves will be tested one by one before shipment, including the functionality and leakage testing.
Pressure: 1-10 bar, 150 PSI
Fluid Media: Compressed Air
Fluid Media: Compressed Air
Operation: Direct Acting
Type: K23JSD Series double relief valves
| Type | K23JSD-L15 | K23JSD-L25 | |||
|---|---|---|---|---|---|
| Item | |||||
| Diameters (mm) | 15 | 25 | |||
| Pipe size | P A O | M 20 × 1.5 M20 ×1.5 M27 × 2 |
G1/2 G1/2 G3/4 | M 33 × 2 M33 × 2 M42 × 2 |
G1 G1 G1¼ |
| Range of working pressure(MPa) | 0.3~0.8 | ||||
| Working temp. (ºC) | -5~50 | ||||
| Time(sec) | ≤0.05 | ≤0.07 | |||
| Effective sectional area S valve in(mm2) | P-A | ≥30 | ≥90 | ||
| A-O | ≥120 | ≥360 | |||

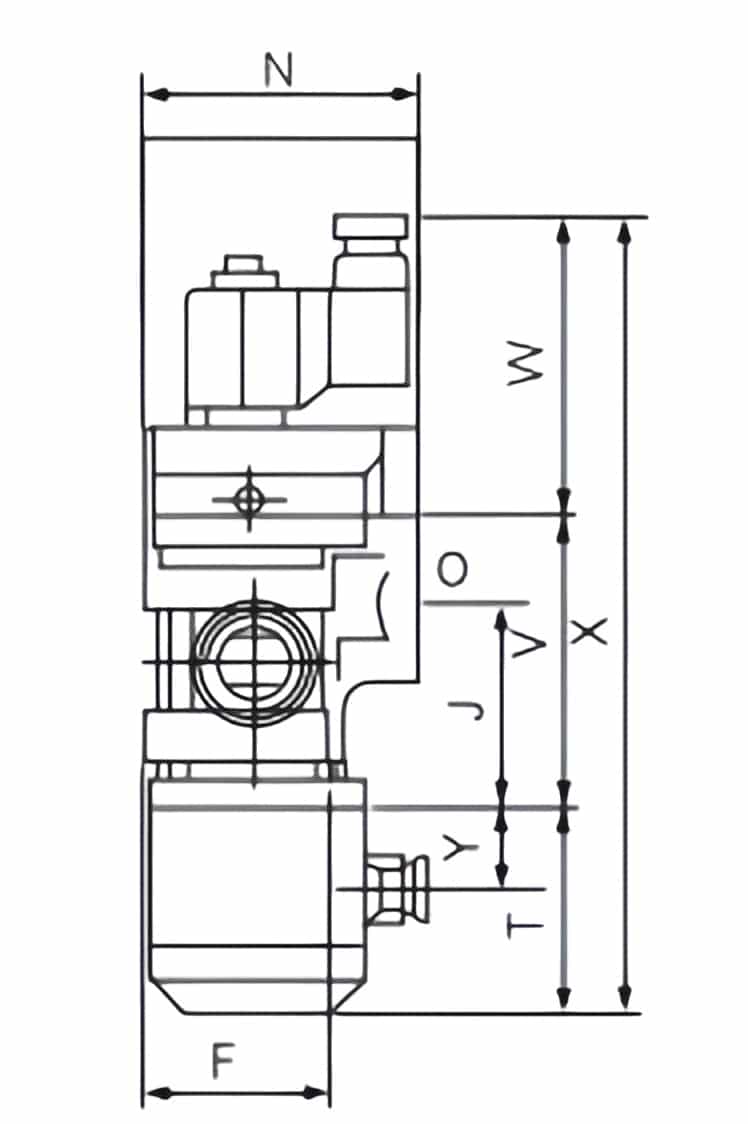

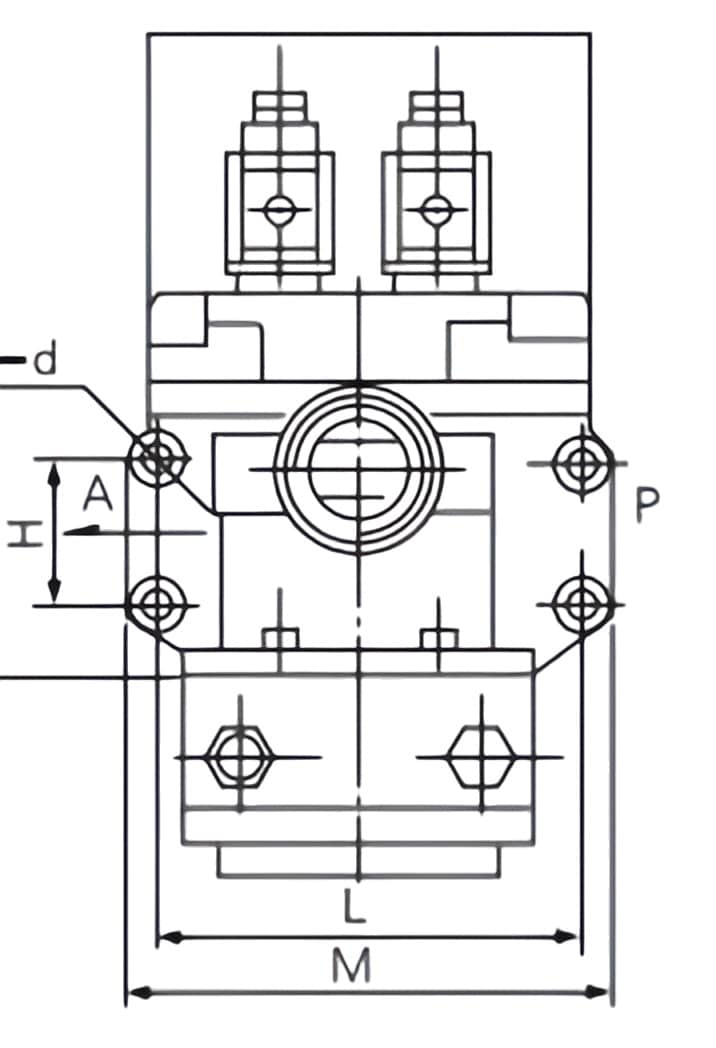

| Type | Dia | P | A | O | d | E | F | H | J | L | M | N | T | U | V | W | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K23JSD-L15 | 15 | G1/2 | G1/2 | G3/4 | 7 | 155 | 60 | 41 | 41 | 135 | 155 | 90 | 72 | 58.5 | 82 | 110 | 265 |
| K23JSD-L25 | 25 | G1 | G1 | G1¼ | 9 | 155 | 68 | 52 | 51 | 149 | 169 | 100 | 72 | 72.5 | 101 | 110 | 284 |
