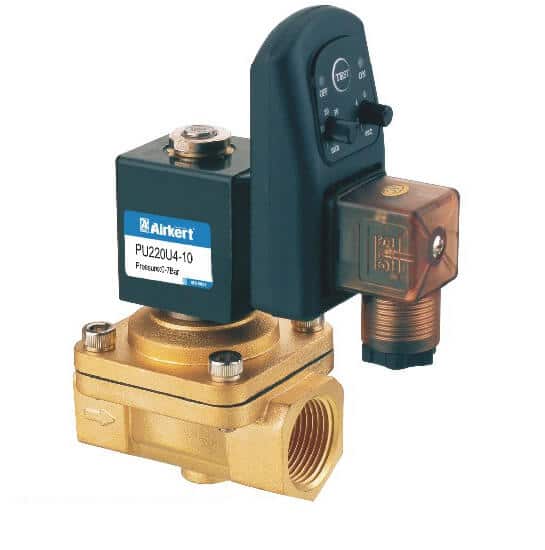

PU220 solenoid valve has the thread size range from 1/8” to 1”. Timer can be installed to control water drain timely, timer solenoid valve.
PU220-01 PU220-02 PU220-03
PU220-04 PU220-06 PU220-08
Water Solenoid Valve
Hot Water Solenoid Valve
Air Solenoid Valve
Gas Solenoid Valve
Steam Solenoid Valve
Oil Solenoid Valve
| Fluid | Compressed Air,Water,Light oil (Below 50CST) |
| Operation | Direct Acting |
| Material | Brass |
| Orifi ce Size(mm) | 25.0 |
| Sectional Area(mm) | 220 |
| CV Value | 11.0 |
| Operation-pressure(kg/cm2) | AC 0~7.0 DC 0~5.0 |
| Max. Pressure | 10kgf/cm2 |
| Diaphragm Type | NBR or VITON , EPDM |
| Temperature Range | NBR for –5-80℃ And EPDM,VITON for –5-150℃ |
| Ambient Temperature | -20℃~60℃ |
| Power Consumption | 22VA |
| Duty Cycle | 100% |
| lnstallation | Horizontal or Slant |
| Coils Type | DIN Type |
| Voltage Tolerance | ±10% |
| Protection Degree | IP65 |
| Insulation | F |
| Standard Voltage | Standard: DC24, AC220V, AC110V, 50/60HZ Especial: DC12V, DC48V, AC24V, AC380V |

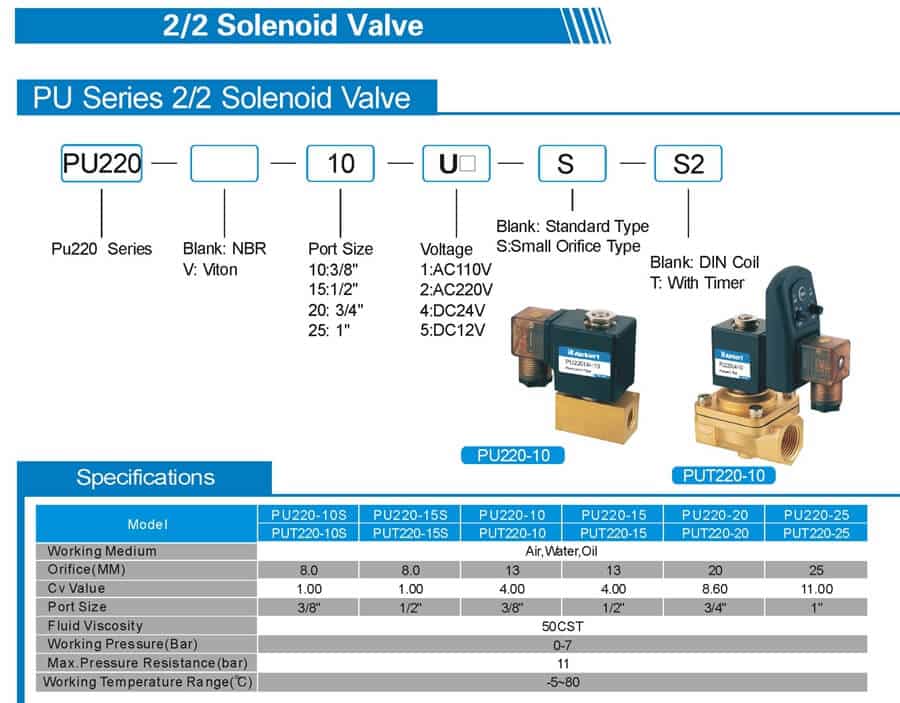

PU220 Solenoid Valve Sheet
