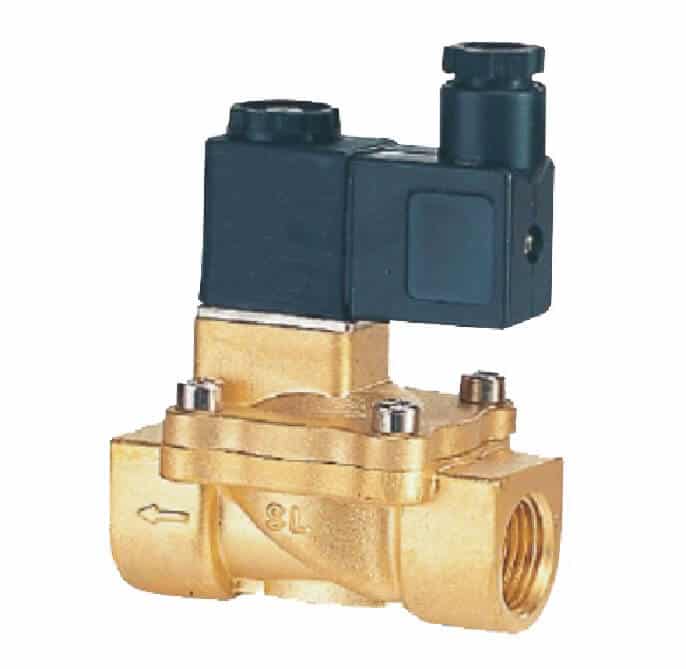

2V Series 2/2 Way Pilot Operated Solenoid Valves
2V Series solenoid valves range from 1/8” to 1”. The 2/2 way valves are compactly design, with low weight and working power, 2V solenoid valve can work under a pressure of 1.0 MPa.
2V025-08 2V130-10 2V130-15 2V250-20 2V250-25
Hot Water Solenoid Valve Air Solenoid Valve Gas Solenoid Valve Steam Solenoid Valve Oil Solenoid Valve
Solenoid Valve 12V DC 24V DC 110V AC 220V AC
Working Medium | Air.Water.Oil |
Operation | Pilot Operated |
Acting Type | Normal Close Type |
Orifi ce Size(mm) | 13 |
CV Value | 6.2 |
Port Size | 1/2" |
Operation Fluid Viscosity | 20 CST(Below) |
Operating Pressure(kgf/cm2) | Air.Water.Oil 0.5~7 |
Max. Pressure Resistance(kgf/cm2) | 10.5 |
Operating Temperature(℃) | -10~80 |
Voltage Range | ±10% |
Protection Degree | F |
Power Consumption | AC: 7VA/60Hz, 9VA/50Hz, DC:6W |
Lnsulation | IP65 |
Material of Body | Brass |
Material of Oil Seal | NBR |
Response Time | 0.05/Second |

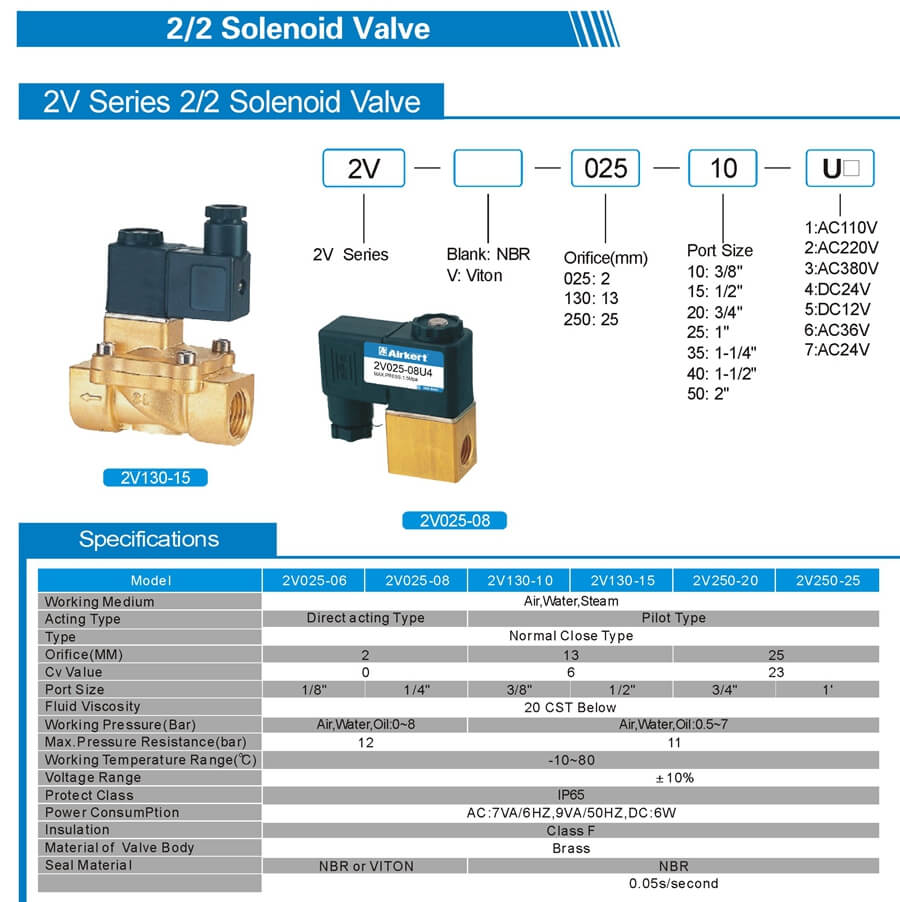

2V Solenoid Valve Sheet
